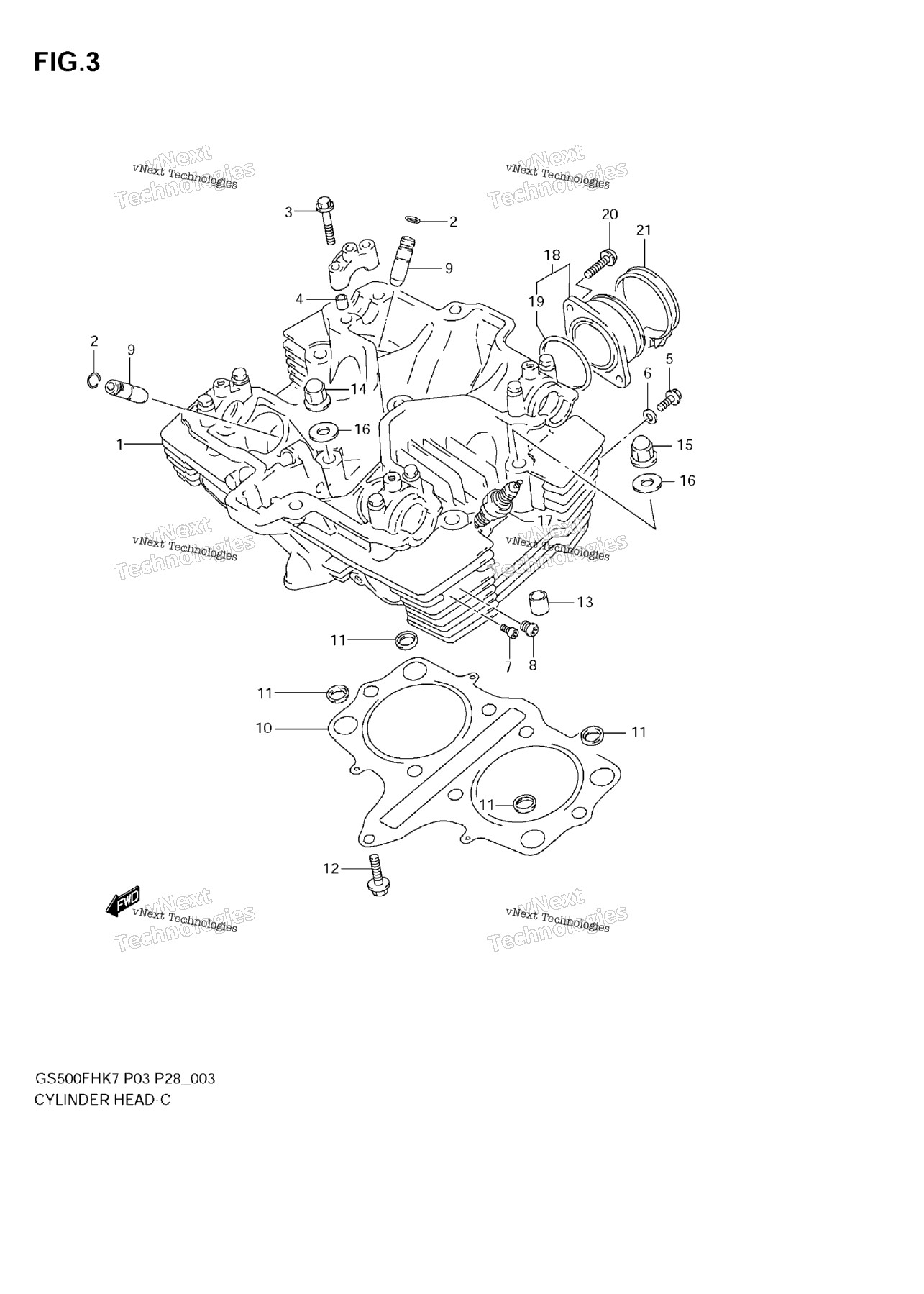

| 1 | 11100-01D60 | HEAD ASSY, CYLINDER Includes Item(s) 2 - 8 | 0 шт. | — | |
|
| 2 | 09381-10003 | RING, VALVE GUIDE | 4 шт. | — | |
|
| 3 | 09103-06026 | BOLT (6X39) | 8 шт. | — | |
|
| 4 | 09206-08001 | PIN | 8 шт. | — | |
|
| 5 | 01550-0612B | BOLT, OIL GALLERY | 2 шт. | — | |
|
| 6 | 09168-06023 | GASKET | 2 шт. | — | |
|
| 7 | 09106-06075 | PLUG, OIL GALLERY | 4 шт. | — | |
|
| 8 | 09248-10010 | PLUG (10X10) | 4 шт. | — | |
|
| 9 | 11115-45740 | GUIDE, VALVE (OS:0.3) OPT | 4 шт. | — | |
|
| 10 | 11141-01D11 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 11 | 11143-06B00 | O RING, CYLINDER HEAD | 4 шт. | — | |
|
| 12 | 01550-0630B | BOLT (L:30) | 1 шт. | — | |
|
| 13 | 04211-11169 | .PIN | 2 шт. | — | |
|
| 14 | 09159-10069 | NUT | 4 шт. | — | |
|
| 15 | 09159-10026 | NUT | 4 шт. | — | |
|
| 16 | 09168-10031 | GASKET (10.2X20X2.3) | 8 шт. | — | |
|
| 17 | 09482-00335 | SPARK PLUG (ND, X24EPR-U9) | 2 шт. | — | |
|
| 17 | 09482-00334 | SPARK PLUG (NGK, DPR8EA-9) | 2 шт. | — | |
|
| 18 | 13101-01D40 | PIPE, INTAKE Includes Item(s) 19 | 2 шт. | — | |
|
| 19 | 09280-40010 | O RING (D:2.4, ID:39.7) | 2 шт. | — | |
|
| 20 | 02112-1616B | SCREW | 0 шт. | — | |
|
| 21 | 09402-54208 | CLAMP | 2 шт. | — | |
|
