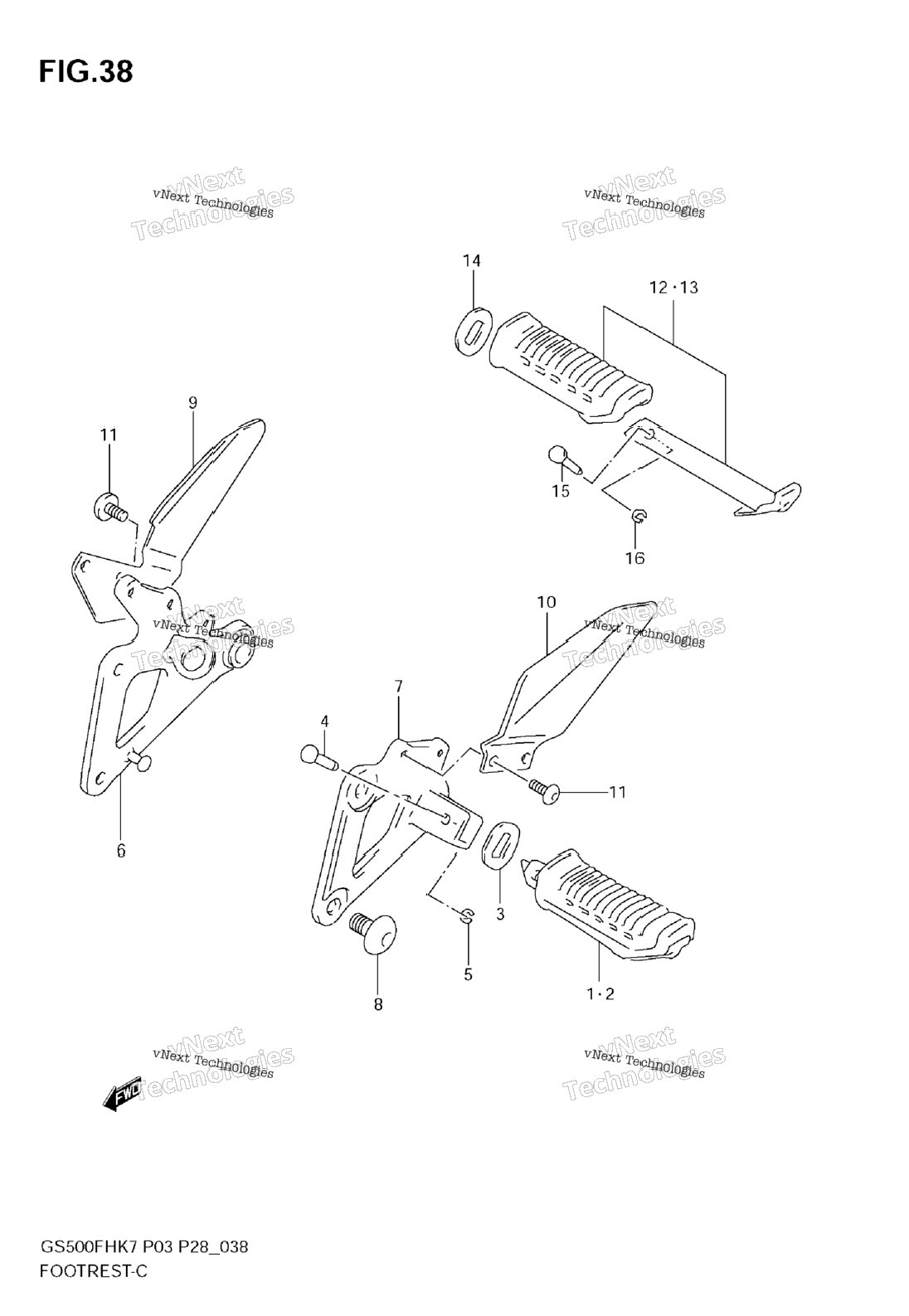

| 1 | 43550C01D00JE0Z | RUBBER ASSY, FRONT RH | 0 шт. | — | |
|
| 2 | 43560C01D00JE0Z | RUBBER ASSY, FRONT LH | 0 шт. | — | |
|
| 6 | 43510-01D00-ENM | BRACKET, FRONT RH (BLACK) | 1 шт. | — | |
|
| 7 | 43520-01D00-ENM | BRACKET, FRONT LH (BLACK) | 1 шт. | — | |
|
| 8 | 09106-08094 | BOLT, BRACKET | 4 шт. | — | |
|
| 9 | 43586-01D10 | GUARD, FRONT FOOTREST RH | 1 шт. | — | |
|
| 10 | 43596-01D10 | GUARD, FRONT FOOTREST LH | 0 шт. | — | |
|
| 11 | 09139-06062 | BOLT, GUARD | 3 шт. | — | |
|
| 12 | 43600-12B00 | FOOTREST ASSY, PILLION RH | 1 шт. | — | |
|
| 13 | 43700-12B00 | FOOTREST ASSY, PILLION LH | 1 шт. | — | |
|
| 14 | 43631-34A01 | WASHER, RUBBER | 2 шт. | — | |
|
| 14 | 43631-34A01 | WASHER, RUBBER | 2 шт. | — | |
|
| 15 | 09208-06008 | PIN | 2 шт. | — | |
|
| 15 | 09208-06008 | PIN | 2 шт. | — | |
|
| 16 | D8332-1104A | E RING | 0 шт. | — | |
|
| 16 | D8332-1104A | E RING | 0 шт. | — | |
|
