Frame Cover (Model K9)

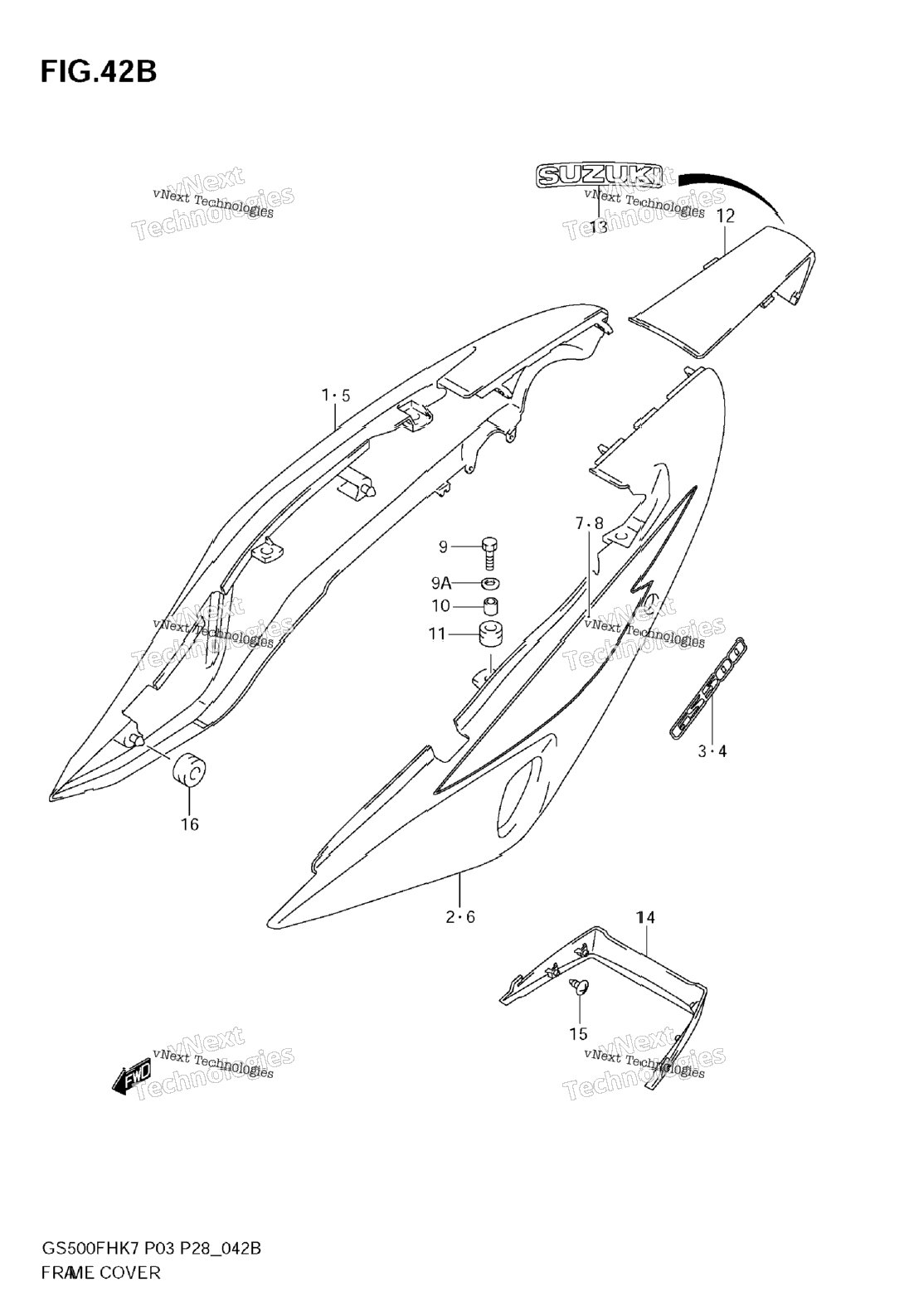

Схема Frame Cover (Model K9)

№	Артикул	Название	Кол-во	Наличие и цены	Действия

3	`68131-01D50-GWT`	TAPE, FRAME COVER, R NOT FOR US MARKET	0 шт.	—

4	`68141-01D50-GWT`	TAPE, FRAME COVER, L NOT FOR US MARKET	0 шт.	—

5	`47111-01DA0-YAY`	COVER, FRAME RH (BLACK) FOR BPK	1 шт.	—

5	`47111-01DA0-YAY`	COVER, FRAME RH (BLACK) NOT FOR US MARKET	1 шт.	—

5	`47111-01DA0-YBD`	COVER, FRAME RH (WHITE) FOR CWH	1 шт.	—

6	`47211-0BE00-YAY`	COVER, FRAME LH (BLACK) FOR BPK	0 шт.	—

6	`47211-0BE00-YAY`	COVER, FRAME LH (BLACK) NOT FOR US MARKET	0 шт.	—

6	`47211-0BE00-YBD`	COVER, FRAME LH (WHITE) FOR CWH	1 шт.	—

7	`68135-01DL0-BPK`	TAPE, FRAME COVER, R FOR BPK	1 шт.	—

7	`68135-01DL0-CWH`	TAPE, FRAME COVER, R FOR CWH	0 шт.	—

8	`68145-01DL0-BPK`	TAPE, FRAME COVER, L FOR BPK	0 шт.	—

8	`68145-01DL0-CWH`	TAPE, FRAME COVER, L FOR CWH	1 шт.	—

9	`D1507-0620B`	BOLT	0 шт.	—

9A	`D8322-9106B`	WASHER	0 шт.	—

10	`09180-06263`	SPACER	4 шт.	—

11	`09320-09016`	CUSHION (9X18X9.5)	4 шт.	—

12	`47311-01DA0-YAY`	COVER, CENTER (BLACK) GS500F FOR BPK	1 шт.	—

12	`47311-01DA0-YAY`	COVER, CENTER (BLACK) GS500H	1 шт.	—

12	`47311-01DA0-YBD`	COVER, CENTER (WHITE) GS500F FOR CWH	1 шт.	—

13	`68131-01DA0-019`	EMBLEM "SUZUKI" (BLACK) GS500F FOR CWH	0 шт.	—

13	`68131-01DA0-YD8`	EMBLEM "SUZUKI" (SILVER) GS500F FOR BPK	1 шт.	—

13	`68131-01DA0-YD8`	EMBLEM "SUZUKI" (SILVER) GS500H	1 шт.	—

14	`47321-01DA0-291`	COVER, LOWER	1 шт.	—

15	`03541-0410B`	SCREW	0 шт.	—

16	`09320-08018`	CUSHION	4 шт.	—
