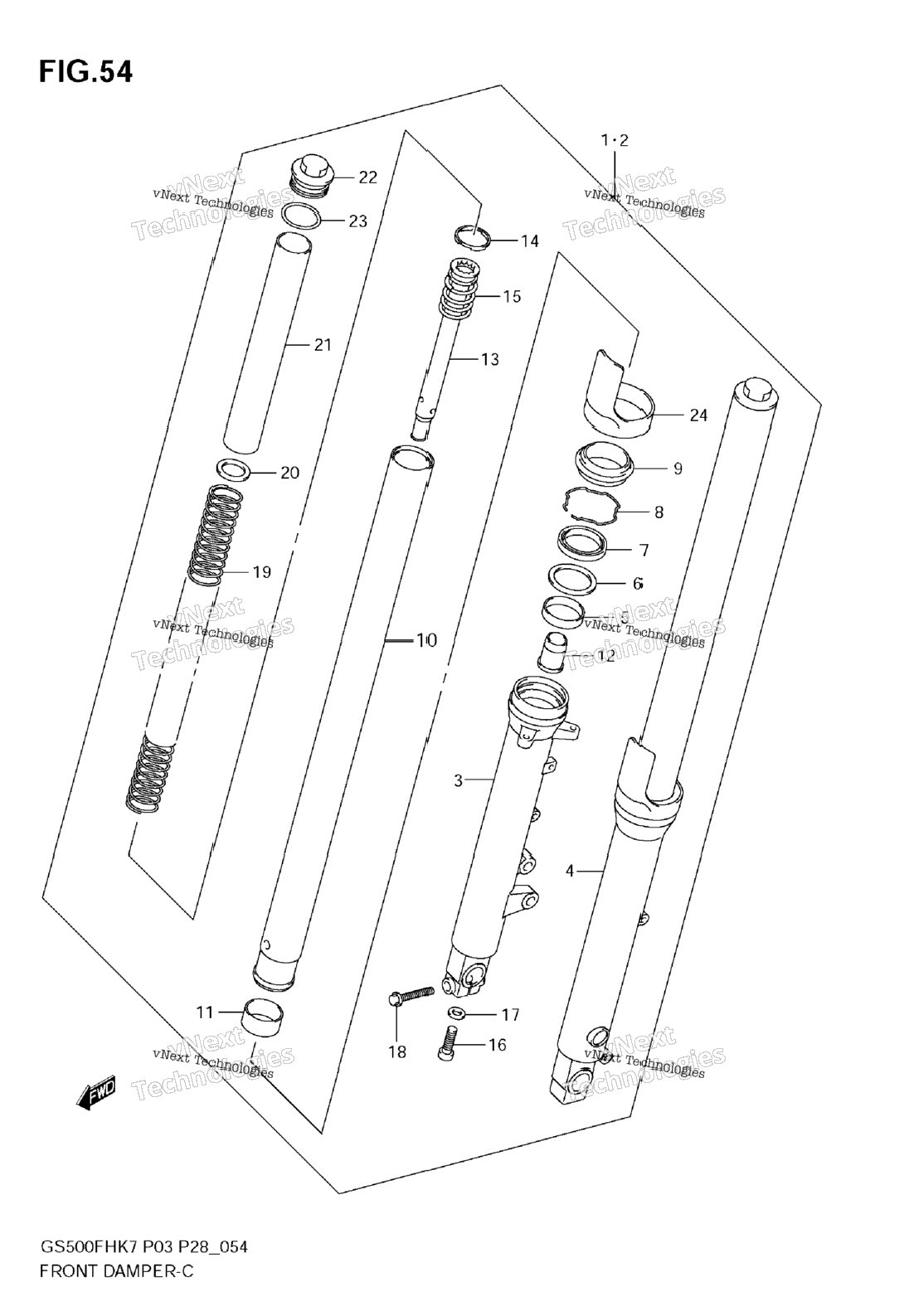

| 1 | 51103-01DD0 | DAMPER ASSY, FRONT FORK RH | 0 шт. | — | |
|
| 2 | 51104-01DD0 | DAMPER ASSY, FRONT FORK LH Includes Item(s) 3 - 24 | 0 шт. | — | |
|
| 3 | 51130-01DD0 | TUBE, OUTER RH | 1 шт. | — | |
|
| 4 | 51140-01DD0 | TUBE, OUTER LH | 0 шт. | — | |
|
| 5 | 51167-01DD0 | METAL, SLIDE | 2 шт. | — | |
|
| 6 | 51158-01DD0 | WASHER | 0 шт. | — | |
|
| 7 | 51153-01DD0 | SEAL, OIL | 2 шт. | — | |
|
| 8 | 51156-01DD0 | RING, SNAP | 2 шт. | — | |
|
| 9 | 51173-01DD0 | SEAL, DUST | 0 шт. | — | |
|
| 10 | 51110-01DD0 | TUBE, INNER | 0 шт. | — | |
|
| 11 | 51121-01DD0 | PISTON | 2 шт. | — | |
|
| 12 | 51195-01DD0 | PIECE, OIL LOCK | 0 шт. | — | |
|
| 13 | 51146-01DD0 | CYLINDER | 0 шт. | — | |
|
| 14 | 51196-01DD0 | RING, PISTON | 0 шт. | — | |
|
| 15 | 51177-01DD0 | SPRING, REBOUND | 0 шт. | — | |
|
| 16 | 51147-01DD0 | BOLT | 2 шт. | — | |
|
| 17 | 51148-01DD0 | GASKET | 2 шт. | — | |
|
| 18 | 51166-01DD0 | BOLT, RH | 0 шт. | — | |
|
| 19 | 51171-01DD0 | SPRING, MAIN | 0 шт. | — | |
|
| 20 | 51172-01DD0 | WASHER, SPRING | 0 шт. | — | |
|
| 21 | 51176-01DD0 | SPACER | 0 шт. | — | |
|
| 22 | 51351-01DD0 | CAP | 0 шт. | — | |
|
| 23 | 51117-01DD0 | O RING | 2 шт. | — | |
|
| 24 | 51201-01DD0 | PROTECTOR | 0 шт. | — | |
|
