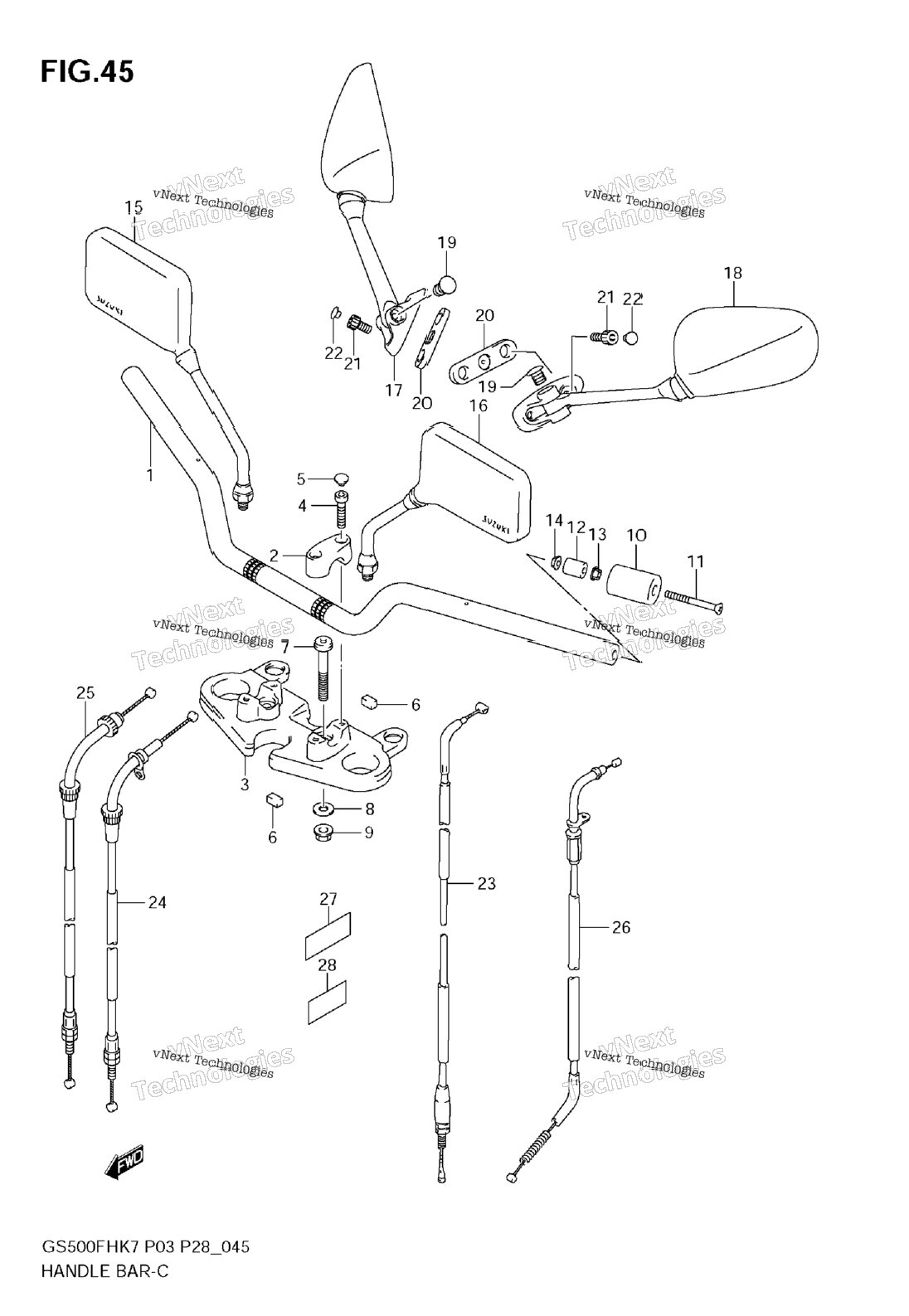

| 1 | 56111-01DC0-ETN | HANDLEBAR | 1 шт. | — | |
|
| 2 | 56211-0BE00 | CLAMP, UPPER (SILVER) | 0 шт. | — | |
|
| 3 | 56221-0BE00 | CLAMP, LOWER (SILVER) | 0 шт. | — | |
|
| 4 | D7109-08307 | BOLT | 4 шт. | — | |
|
| 5 | 09250-06011 | CAP | 4 шт. | — | |
|
| 6 | 56241-01D00 | CUSHION, HOLDER | 0 шт. | — | |
|
| 7 | 07130-1065B | BOLT | 2 шт. | — | |
|
| 8 | D8322-9110B | WASHER | 0 шт. | — | |
|
| 9 | 08319-3110A | NUT | 2 шт. | — | |
|
| 10 | 56200-01840 | BALANCER SET, HANDLEBAR Includes Item(s) 11 - 14 | 2 шт. | — | |
|
| 11 | 02122-0685B | SCREW | 2 шт. | — | |
|
| 12 | 56272-44500 | EXPANDER | 2 шт. | — | |
|
| 13 | 08316-1008B | .NUT | 2 шт. | — | |
|
| 14 | 09159-06024 | NUT | 2 шт. | — | |
|
| 15 | 56500-03F31 | MIRROR ASSY, REAR VIEW RH GS500H E28, E95 | 1 шт. | — | |
|
| 16 | 56600-03F31 | MIRROR ASSY, REAR VIEW LH GS500H E28, E95 | 1 шт. | — | |
|
| 17 | 56500-01DA0 | MIRROR ASSY, REAR VIEW RH GS500F | 1 шт. | — | |
|
| 18 | 56600-01DA0 | MIRROR ASSY, REAR VIEW LH GS500F | 1 шт. | — | |
|
| 19 | 09250-09001 | PLUG GS500F | 2 шт. | — | |
|
| 20 | 94576-24F00 | CUSHION GS500F | 2 шт. | — | |
|
| 21 | D7107-0616B | BOLT GS500F | 4 шт. | — | |
|
| 22 | 09250-05009 | CAP, BOLT GS500F | 4 шт. | — | |
|
| 23 | 58200-01DA0 | CABLE ASSY, CLUTCH | 1 шт. | — | |
|
| 24 | 58300-01DA0 | CABLE ASSY, THROTTLE NO.1 | 1 шт. | — | |
|
| 25 | 58300-01DB0 | CABLE ASSY, THROTTLE NO.2 | 1 шт. | — | |
|
| 26 | 58410-01D70 | CABLE, STARTER | 1 шт. | — | |
|
| 27 | 94474C22D00J000 | PROTECTOR, CABLE | 1 шт. | — | |
|
| 28 | 72895-0BE00 | PROTECTOR, CABLE NO. 2 | 0 шт. | — | |
|
