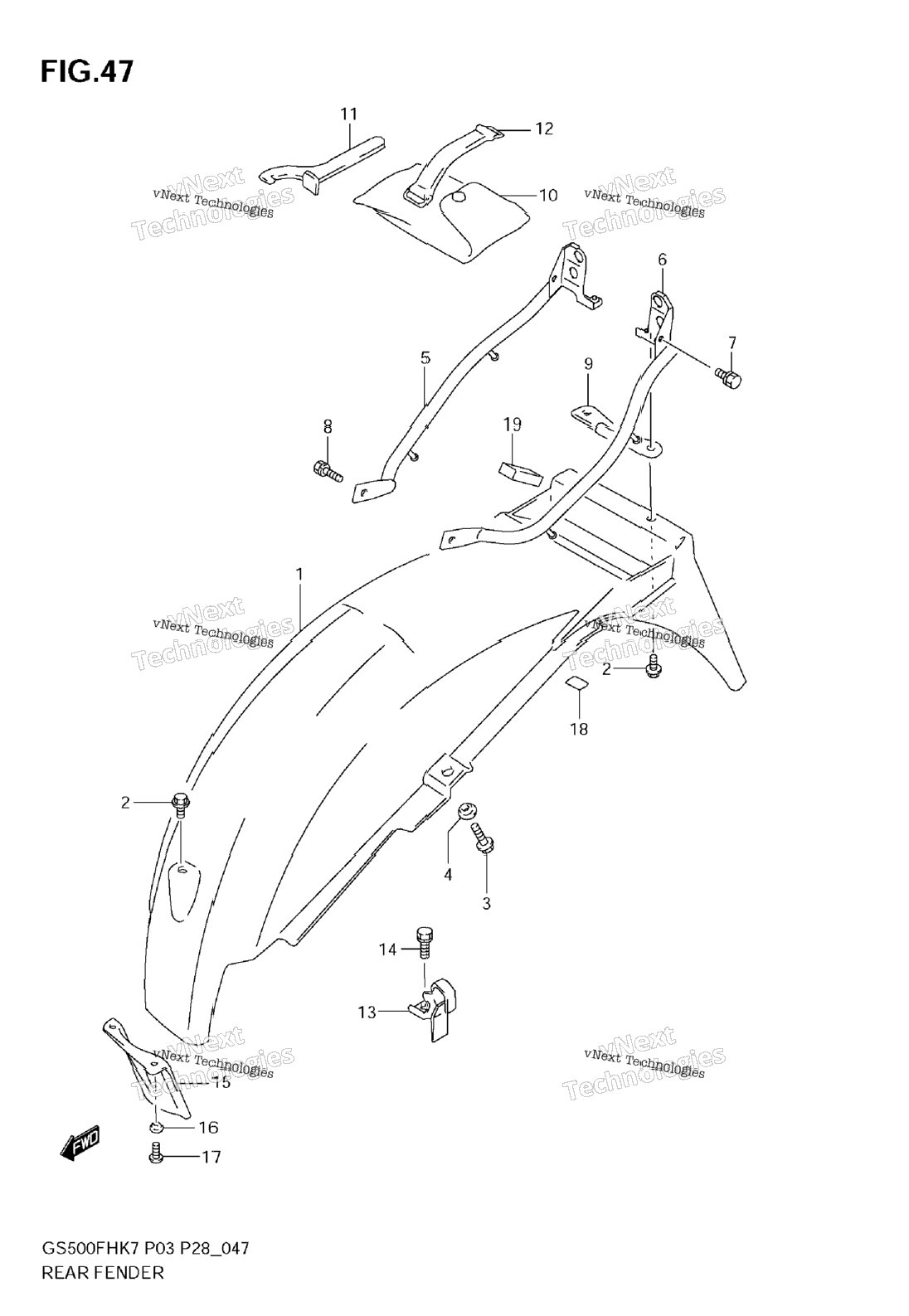

| 1 | 63111-01D31-291 | BODY, REAR FENDER | 0 шт. | — | |
|
| 2 | 09113-06001 | BOLT | 3 шт. | — | |
|
| 3 | D1557-0616B | BOLT, SIDE | 2 шт. | — | |
|
| 4 | 09169-06037 | WASHER | 2 шт. | — | |
|
| 5 | 63210-01DA0 | BRACE, REAR FENDER RH | 0 шт. | — | |
|
| 6 | 63220-01DA0 | BRACE, REAR FENDER LH | 1 шт. | — | |
|
| 7 | 01550-0812B | BOLT, BRACE REAR | 2 шт. | — | |
|
| 8 | 01550-0820B | BOLT, BRACE FRONT | 2 шт. | — | |
|
| 9 | 47425-01D00 | PLATE, TOOL HOLDER | 1 шт. | — | |
|
| 10 | 09800C99027JF00 | TOOL ASSY Includes Item(s) 11 | 1 шт. | — | |
|
| 11 | 09822C00005JF00 | CLAMP, WRENCH | 1 шт. | — | |
|
| 12 | 09280-70004 | O-RING (D:3.53,ID:69.44) | 1 шт. | — | |
|
| 13 | 95720-01D00 | HOLDER, HELMET | 1 шт. | — | |
|
| 14 | D1557-0616B | BOLT | 1 шт. | — | |
|
| 15 | 63411C42A00J000 | MUD GUARD, REAR UNIT | 1 шт. | — | |
|
| 16 | 09169-06010 | WASHER | 2 шт. | — | |
|
| 17 | D2116-0616B | SCREW | 2 шт. | — | |
|
| 18 | 63115C06C00J000 | TAPE, REAR FENDER | 0 шт. | — | |
|
| 19 | 33652-31F00 | CUSHION, TOOL HOLDER | 2 шт. | — | |
|
