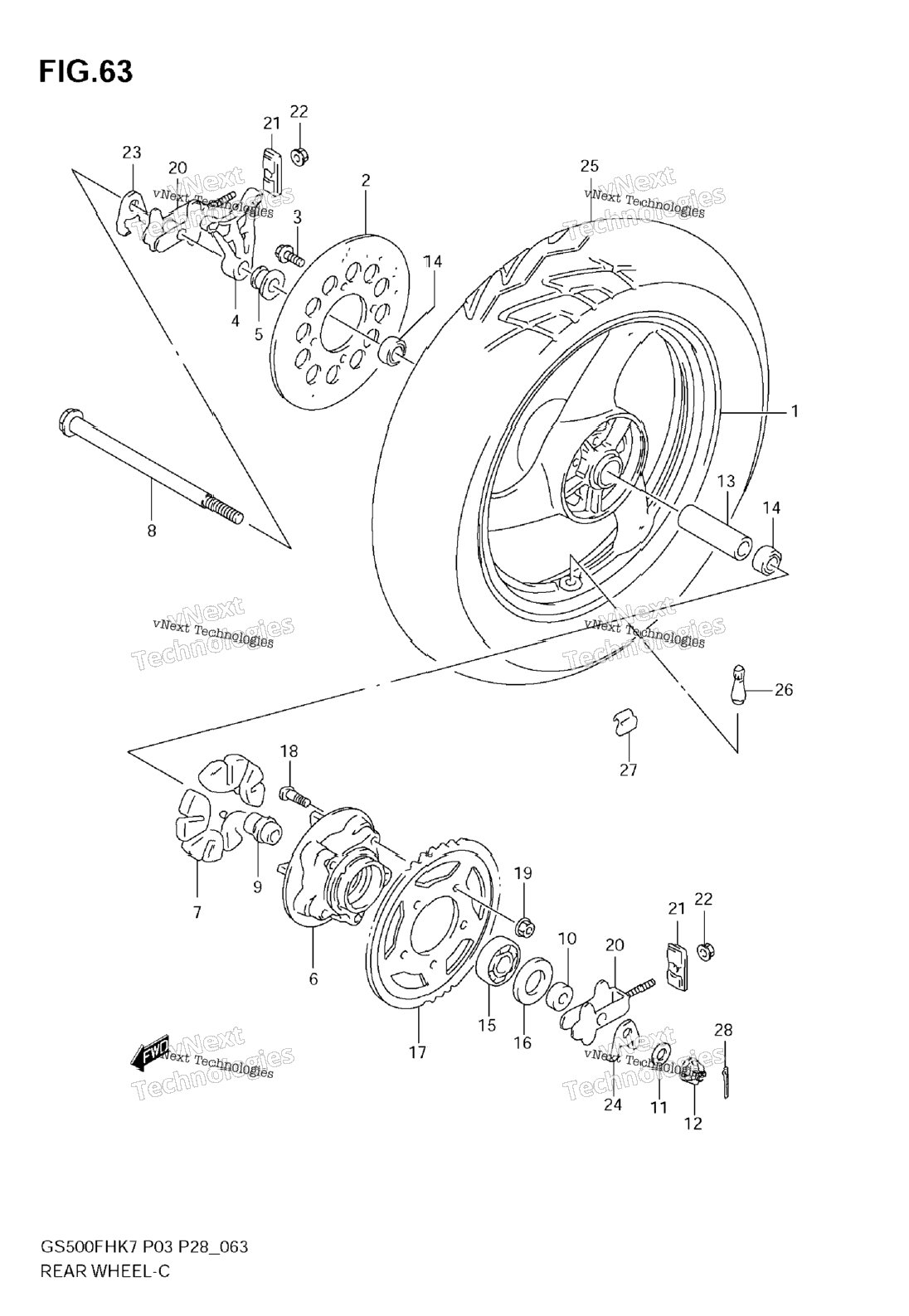

| 1 | 64111-34C01-291 | WHEEL, REAR (MT3.50X17)(BLACK) | 1 шт. | — | |
|
| 2 | 69211-01DA0 | DISC, REAR BRAKE (BLACK) | 1 шт. | — | |
|
| 3 | 09106-08131 | BOLT (8X30) | 4 шт. | — | |
|
| 4 | 69721-01DA0 | BRACKET, CALIPER | 1 шт. | — | |
|
| 5 | 64740C19C00J000 | SPACER, REAR AXLE RH | 1 шт. | — | |
|
| 6 | 64611C01D00J000 | DRUM, REAR SPROCKET | 1 шт. | — | |
|
| 7 | 64651-27A01 | ABSORBER,SHOCK REAR HUB | 5 шт. | — | |
|
| 8 | 64711-01D20 | AXLE, REAR MODEL K7/K8 | 0 шт. | — | |
|
| 9 | 64711C01D30J000 | AXLE, REAR MODEL K9 | 1 шт. | — | |
|
| 10 | 64733C01D00J000 | RETAINER, DRUM | 1 шт. | — | |
|
| 11 | 64751C19C00J000 | SPACER, REAR AXLE LH | 1 шт. | — | |
|
| 12 | 09160-17047 | WASHER | 1 шт. | — | |
|
| 13 | 08314-4016B | NUT MODEL K7/K8 | 1 шт. | — | |
|
| 14 | 08319-2116A | NUT MODEL K9 | 1 шт. | — | |
|
| 15 | 09180-17067 | SPACER, BEARING (17.5X25X88) | 1 шт. | — | |
|
| 16 | 08143-63037 | BEARING | 2 шт. | — | |
|
| 17 | 09262-25073 | BEARING (25X62X17) | 1 шт. | — | |
|
| 18 | 09285-35001 | OIL SEAL (35X62X8) | 1 шт. | — | |
|
| 19 | 64511C01D04J000 | SPROCKET, REAR (NT:39) | 1 шт. | — | |
|
| 20 | 09119-10059 | BOLT (10X38) | 5 шт. | — | |
|
| 21 | 08319-3110A | NUT | 5 шт. | — | |
|
| 22 | 61410C01D00J000 | ADJUSTER, CHAIN | 2 шт. | — | |
|
| 23 | 61421C01D00J000 | PLATE, GUIDE | 2 шт. | — | |
|
| 24 | 08319-3108A | NUT | 2 шт. | — | |
|
| 25 | 64712C19C01J000 | WASHER, CHAIN ADJUSTER RH | 1 шт. | — | |
|
| 26 | 64712C01D00J000 | WASHER, CHAIN ADJUSTER LH | 1 шт. | — | |
|
| 27 | 65110-01D10 | TIRE, REAR (130/70-17M/C 62H) BATTLAX BT45R G | 0 шт. | — | |
|
| 28 | 43130-07E00 | VALVE ASSY, WHEEL RIM (TR412) | 0 шт. | — | |
|
| 29 | 55411-17G00 | BALANCER, WHEEL (NO. 1) | 1 шт. | — | |
|
| 30 | 55412-17G00 | BALANCER, WHEEL (NO. 2) | 1 шт. | — | |
|
| 31 | 55413-17G00 | BALANCER, WHEEL (NO. 3) | 0 шт. | — | |
|
| 32 | 04111-4030A | PIN, COTTER MODEL K7/K8 | 1 шт. | — | |
|
