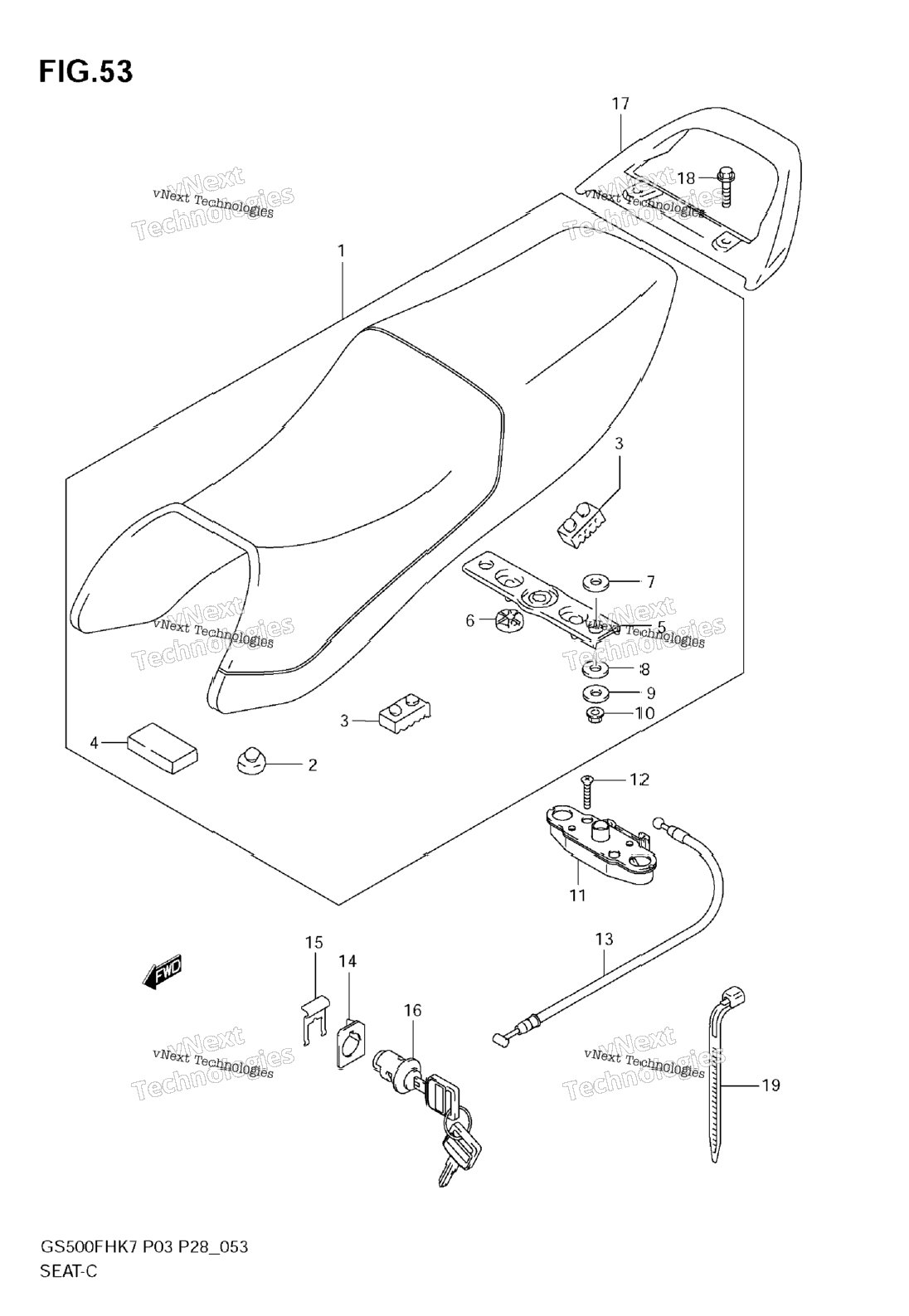

| 1 | 45100C01D20JFH4 | SEAT SET (BLACK) Includes Item(s) 2 - 10 | 0 шт. | — | |
|
| 2 | 45148-12FA0 | CUSHION, FRONT LOWER | 2 шт. | — | |
|
| 3 | 45147-12FA0 | CUSHION, CENTER & REAR | 4 шт. | — | |
|
| 4 | 94982C29400J000 | CUSHION, BATTERY STOPPER | 1 шт. | — | |
|
| 5 | 45215C22A00J000 | STRIKER, SEAT LOCK | 1 шт. | — | |
|
| 6 | 45213C13601J000 | CUSHION, BOSS | 2 шт. | — | |
|
| 7 | 45126C41B00J000 | CUSHION, STRIKER UPPER | 2 шт. | — | |
|
| 8 | 45127C41B00J000 | CUSHION, STRIKER LOWER | 2 шт. | — | |
|
| 9 | 09689-06202 | WASHER | 2 шт. | — | |
|
| 10 | D8316-1006B | NUT | 0 шт. | — | |
|
| 11 | 45220-47H00 | BRACKET, SEAT SUPPORT | 1 шт. | — | |
|
| 12 | D2116-0630B | SCREW | 0 шт. | — | |
|
| 13 | 45280C38400J000 | CABLE, SEAT LOCK | 1 шт. | — | |
|
| 14 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
| 15 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 16 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 17 | 46211C01D00JETN | HANDLE, PILLION RIDER (BLACK) | 0 шт. | — | |
|
| 18 | 01550-0825B | BOLT | 2 шт. | — | |
|
| 19 | 09407-18402 | CLAMP, SEAT LOCK CABLE | 1 шт. | — | |
|
