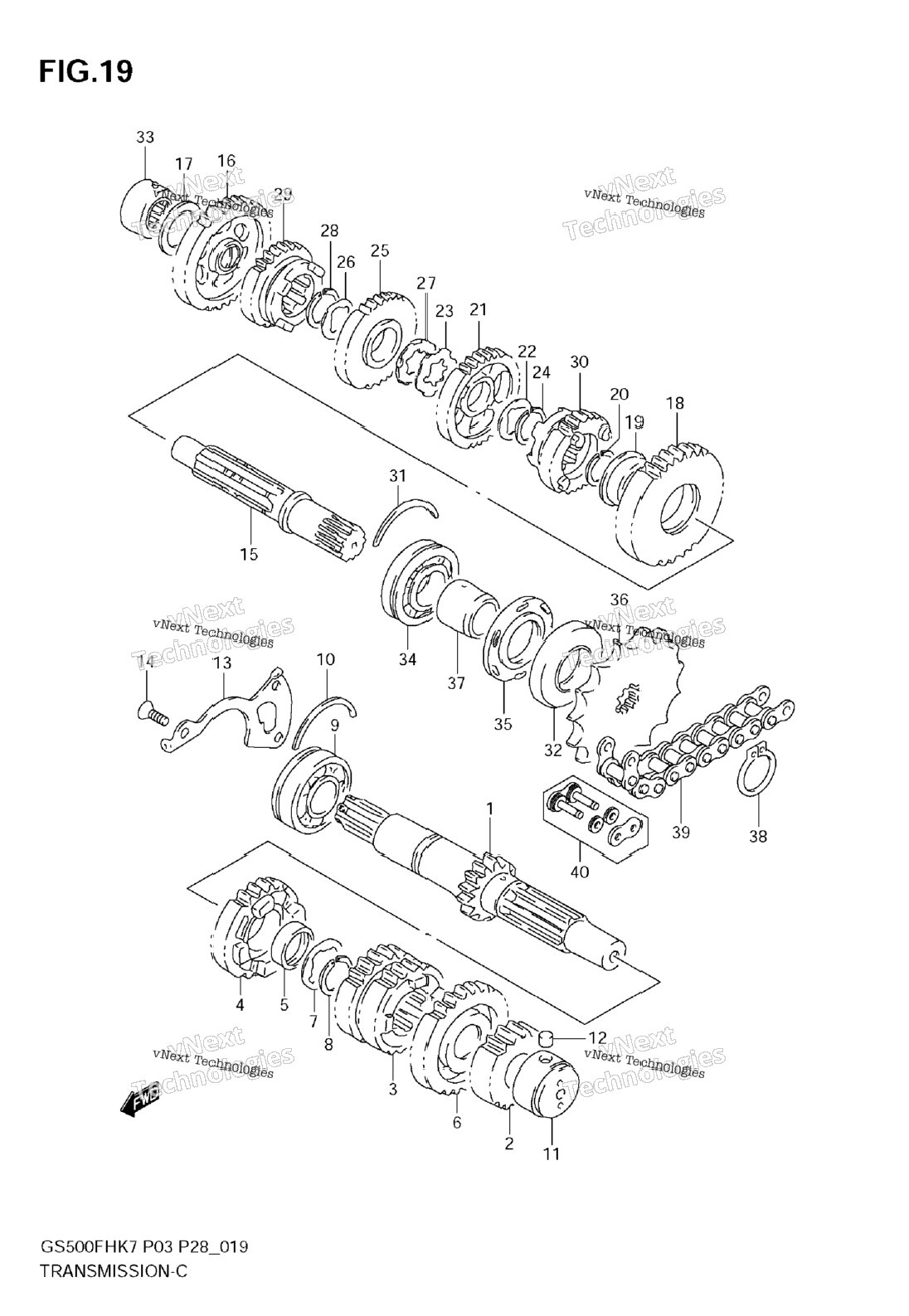

| 1 | 24121-01D01 | COUNTERSHAFT (NT:13) | 0 шт. | — | |
|
| 2 | 24221-44001 | GEAR, 2ND DRIVE (NT:18) | 0 шт. | — | |
|
| 3 | 24231-20F03 | GEAR, 3/4 DRIVE (NT:21/24) | 1 шт. | — | |
|
| 4 | 24251-20F02 | GEAR, 5TH DRIVE (NT:26) | 0 шт. | — | |
|
| 5 | 24252-19F00 | BUSH | 1 шт. | — | |
|
| 6 | 24260-01D01 | GEAR, 6TH DRIVE (NT:27) | 1 шт. | — | |
|
| 7 | 09181-25167 | WASHER (25X34X1.0) | 1 шт. | — | |
|
| 8 | 09380-25010 | CIRCLIP | 1 шт. | — | |
|
| 9 | 09262-25051 | BEARING, RH (25X62X17) | 1 шт. | — | |
|
| 10 | 09390-62012 | C-RING | 1 шт. | — | |
|
| 11 | 09263-20025 | BEARING, LH (20X34X20) | 1 шт. | — | |
|
| 12 | 04221-07129 | PIN | 1 шт. | — | |
|
| 13 | 24741-44102 | HOLDER, BEARING | 1 шт. | — | |
|
| 14 | 09126-06014 | SCREW (6X16) | 3 шт. | — | |
|
| 15 | 24131-01D00 | DRIVESHAFT | 1 шт. | — | |
|
| 16 | 24310-44001 | GEAR, 1ST DRIVEN (NT:32) | 0 шт. | — | |
|
| 17 | 09181-20251 | WASHER (20X34X1) | 1 шт. | — | |
|
| 18 | 24321-20F01 | GEAR, 2ND DRIVEN (NT:32) | 1 шт. | — | |
|
| 19 | 24322-19F00 | BUSH | 1 шт. | — | |
|
| 20 | 09380-25010 | CIRCLIP | 1 шт. | — | |
|
| 21 | 24331-44003 | GEAR, 3RD DRIVEN (NT:29) | 1 шт. | — | |
|
| 22 | 09167-25012 | WASHER LOCK (25.1X31X1.0) | 1 шт. | — | |
|
| 23 | 09167-25013 | WASHER,LOCK (25.1X41X1.5) | 1 шт. | — | |
|
| 24 | 09380-25010 | CIRCLIP | 1 шт. | — | |
|
| 25 | 24341-44003 | GEAR, 4TH DRIVEN (NT:27) | 0 шт. | — | |
|
| 26 | 09167-25012 | WASHER LOCK (25.1X31X1.0) | 1 шт. | — | |
|
| 27 | 09169-25001 | WASHER (25.1X37X2.5) | 1 шт. | — | |
|
| 28 | 09380-25010 | CIRCLIP | 1 шт. | — | |
|
| 29 | 24351-44001 | GEAR, 5TH DRIVEN (NT:25) | 1 шт. | — | |
|
| 30 | 24361-44010 | GEAR, 6TH DRIVEN (NT:23) | 0 шт. | — | |
|
| 31 | 09390-62012 | C-RING | 1 шт. | — | |
|
| 32 | 09283-32015 | OIL SEAL (32X62X7) | 1 шт. | — | |
|
| 33 | 09263-20027 | BEARING, RH (20X34X17) | 1 шт. | — | |
|
| 34 | 09262-25105 | BEARING, LH (25X62X17) | 1 шт. | — | |
|
| 35 | 09282-32002 | OIL SEAL | 1 шт. | — | |
|
| 36 | 27511-01D01 | SPROCKET, ENGINE (NT:16) | 1 шт. | — | |
|
| 37 | 27531-01D10 | SPACER (L:32.7) | 1 шт. | — | |
|
| 38 | 08331-3125A | CIRCLIP | 0 шт. | — | |
|
| 39 | 27600C01C10J110 | CHAIN, DRIVE (DID520VM, 110LE) Includes Item(s) 40 | 1 шт. | — | |
|
| 40 | 27620C01C10J000 | JOINTSET, CHAIN 0PT | 1 шт. | — | |
|
