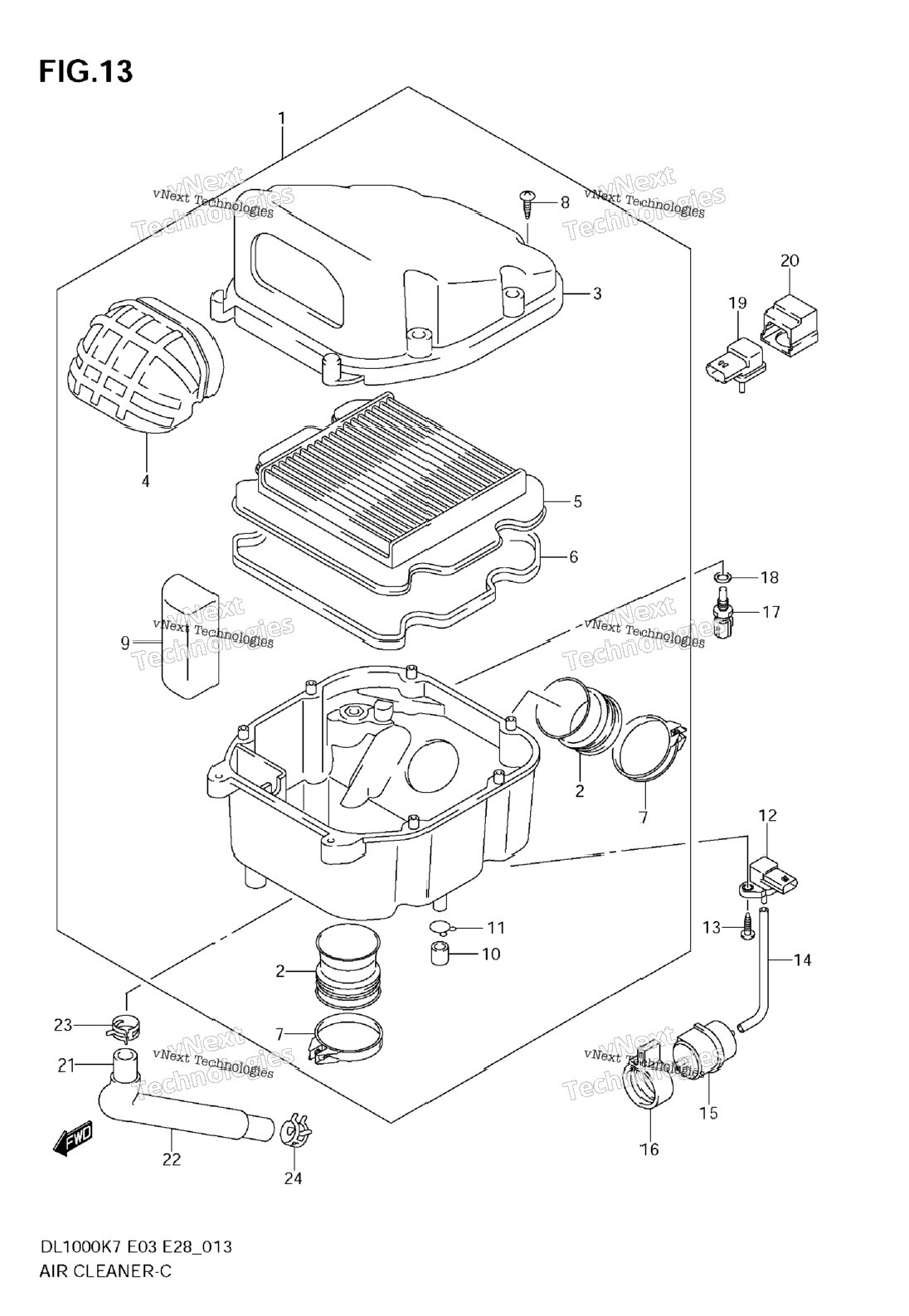

| 1 | 13700-06G00 | CLEANER ASSY, AIR Includes Item(s) 2 - 11 | 1 шт. | — | |
|
| 2 | 13881-06G00 | TUBE, OUTLET | 2 шт. | — | |
|
| 3 | 13741-06G00 | CAP, AIR CLEANER | 0 шт. | — | |
|
| 4 | 13891-06G00 | TUBE, INLET | 1 шт. | — | |
|
| 5 | 13780-06G00 | FILTER, AIR CLEANER | 1 шт. | — | |
|
| 6 | 13746-06G00 | GASKET, AIR CLEANER | 1 шт. | — | |
|
| 7 | 13170-06G00 | CLAMP, OUTLET TUBE FRONT | 2 шт. | — | |
|
| 8 | 03141-0516B | SCREW | 8 шт. | — | |
|
| 9 | 13788-06G00 | FILTER, BREATHER | 1 шт. | — | |
|
| 10 | 13859-41B10 | ..PLUG | 1 шт. | — | |
|
| 11 | 09401-14301 | CLIP | 2 шт. | — | |
|
| 12 | 18590-80C40 | SENSOR BOOST | 1 шт. | — | |
|
| 13 | 03541-0516B | SCREW | 1 шт. | — | |
|
| 14 | 13697-17F00 | HOSE, BOOST SENSOR | 1 шт. | — | |
|
| 15 | 13715-06G00 | CHAMBER, VACUUM | 0 шт. | — | |
|
| 16 | 13912-02FA0 | BAND, VACUUM CHAMBER | 0 шт. | — | |
|
| 17 | 13650-57F00 | SENSOR, AIR TEMP | 1 шт. | — | |
|
| 18 | 09168-12017 | GASKET, TEMP SENSOR | 1 шт. | — | |
|
| 19 | 18591-42F00 | SENSOR, PRESSURE | 1 шт. | — | |
|
| 20 | 18595-42F00 | HOLDER, SENSOR | 0 шт. | — | |
|
| 21 | 13851-06G00 | TUBE, BREATHER | 1 шт. | — | |
|
| 22 | 13858-06G00 | PROTECTOR, BREATHER TUBE | 0 шт. | — | |
|
| 23 | 09401-22405 | CLIP | 0 шт. | — | |
|
| 24 | 09402-28513 | CLAMP | 1 шт. | — | |
|
