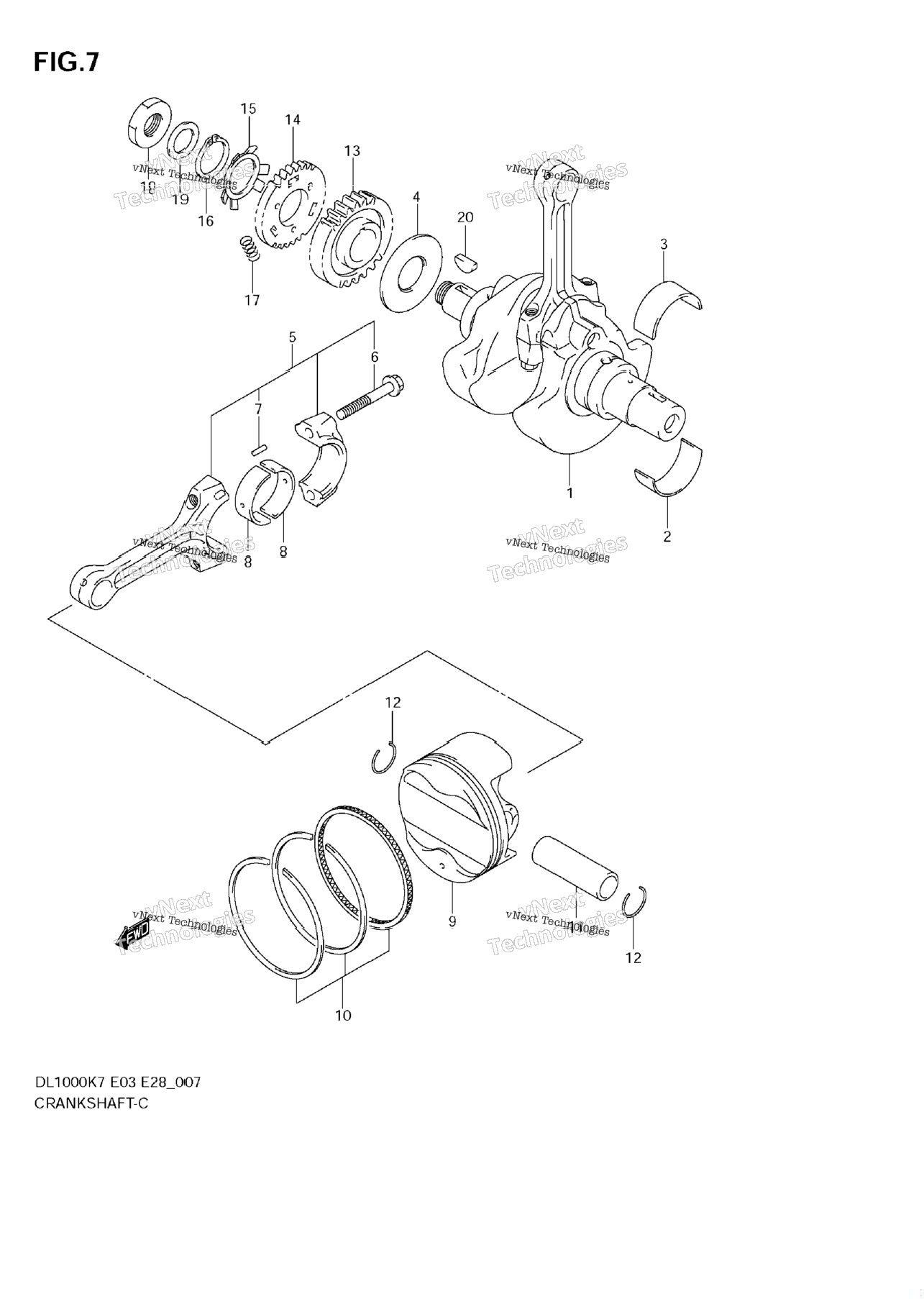

| 1 | 12220-06G00 | CRANKSHAFT | 1 шт. | — | |
|
| 3 | 12229-16G00-0B0 | BEARING, LOWER (BLACK) | 2 шт. | — | |
|
| 3 | 12229-16G00-0C0 | BEARING, LOWER (BROWN) | 2 шт. | — | |
|
| 3 | 12229-16G00-0A0 | BEARING, LOWER (GREEN) | 2 шт. | — | |
|
| 3 | 12229-16G00-0B0 | BEARING, UPPER (BLACK) | 2 шт. | — | |
|
| 3 | 12229-16G00-0C0 | BEARING, UPPER (BROWN) | 2 шт. | — | |
|
| 3 | 12229-16G00-0A0 | BEARING, UPPER (GREEN) | 2 шт. | — | |
|
| 4 | 12652-38B00 | WASHER,CRANK THRUST | 0 шт. | — | |
|
| 5 | 12160-06G00 | CONNECTING ROD ASSY Includes Item(s) 6 - 7 | 2 шт. | — | |
|
| 6 | 12163-06G00 | BOLT | 4 шт. | — | |
|
| 7 | 12165-27A50 | PIN | 4 шт. | — | |
|
| 8 | 12164-02F12-0D0 | BEARING, CRANK PIN | 4 шт. | — | |
|
| 8 | 12164-02F12-0C0 | BEARING, CRANK PIN | 4 шт. | — | |
|
| 8 | 12164-02F12-0B0 | BEARING, CRANK PIN | 4 шт. | — | |
|
| 8 | 12164-02F12-0A0 | BEARING, CRANK PIN | 4 шт. | — | |
|
| 9 | 12111-06G00-0F0 | PISTON | 2 шт. | — | |
|
| 10 | 12140-02F42 | RING SET, PISTON | 2 шт. | — | |
|
| 11 | 12151-02F00 | PIN, PISTON | 2 шт. | — | |
|
| 12 | 09381-22002 | CIRCLIP | 4 шт. | — | |
|
| 13 | 21111-02F11 | GEAR, PRIMARY DRIVE | 1 шт. | — | |
|
| 14 | 21112-02F00 | GEAR, PRIMARY DRIVE SCISSORS | 0 шт. | — | |
|
| 15 | 21114-02F00 | WASHER | 1 шт. | — | |
|
| 16 | 08331-31406 | CIRCLIP | 1 шт. | — | |
|
| 17 | 09440-07001 | SPRING | 3 шт. | — | |
|
| 18 | 09140-22012 | NUT | 1 шт. | — | |
|
| 19 | 09164-22007 | WASHER | 1 шт. | — | |
|
| 20 | 09420-06001 | KEY | 1 шт. | — | |
|
