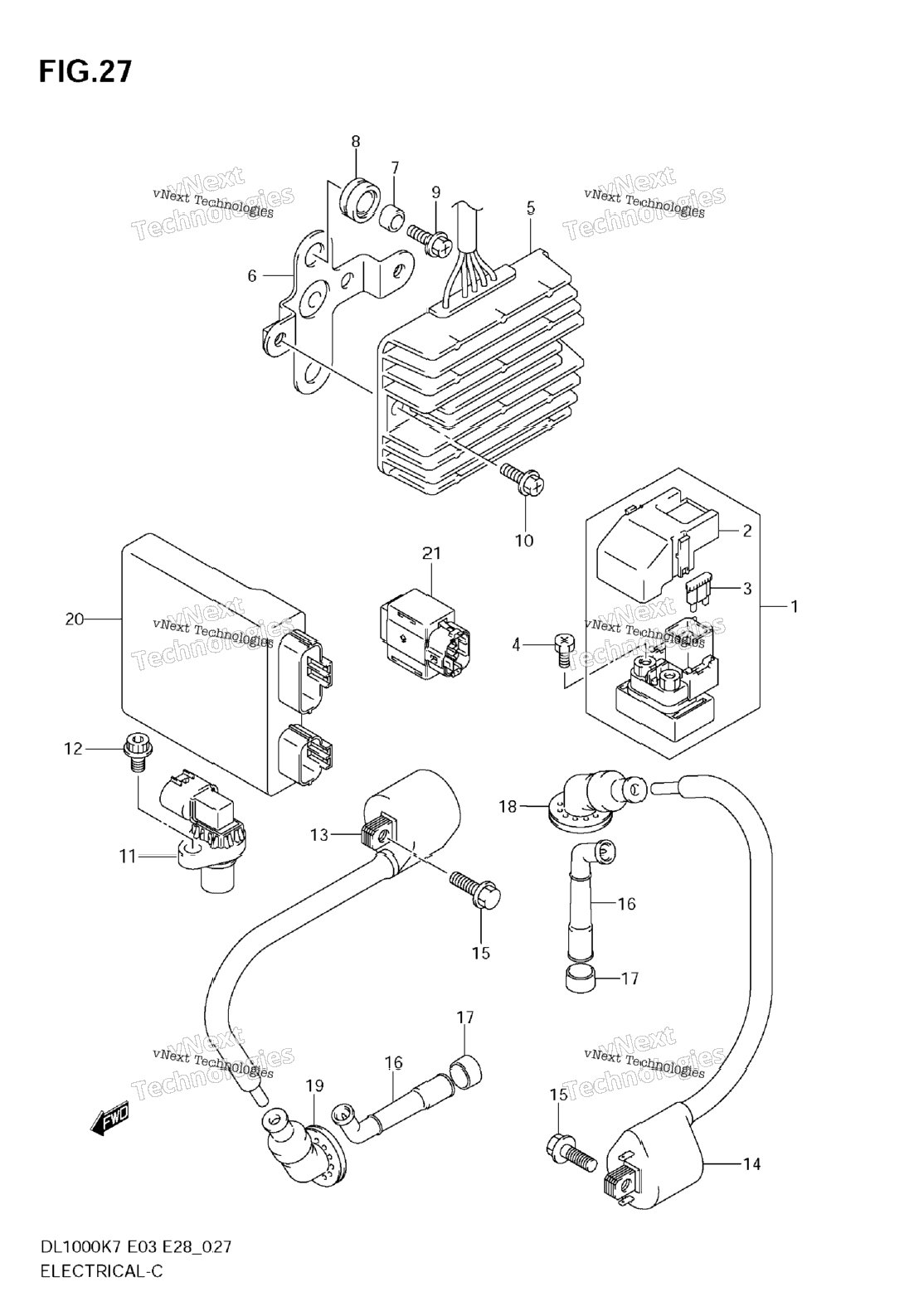

| 1 | 31800-06G00 | RELAY ASSY, STARTING Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 31861-47E00 | COVER, RELAY ASSY | 1 шт. | — | |
|
| 3 | 09481-30101 | FUSE, 30A | 2 шт. | — | |
|
| 4 | 09128-06013 | BOLT (6X8) | 2 шт. | — | |
|
| 5 | 32800-06G00 | RECTIFIER ASSY | 1 шт. | — | |
|
| 6 | 32831-06G10 | BRACKET, RECTIFIER | 0 шт. | — | |
|
| 7 | 09180-06258 | SPACER (6.5X9X6.7) | 2 шт. | — | |
|
| 8 | 09320-09036 | CUSHION | 2 шт. | — | |
|
| 9 | 02162-0620B | BOLT, BRACKET | 2 шт. | — | |
|
| 10 | 02162-0620B | BOLT, RECTIFIER | 2 шт. | — | |
|
| 11 | 33220-80G00 | SENSOR ASSY, CAM POSITION | 1 шт. | — | |
|
| 12 | 07130-0616B | BOLT | 1 шт. | — | |
|
| 13 | 33410-06G00 | COIL ASSY, IGNITION, FR | 1 шт. | — | |
|
| 14 | 33420-06G00 | COIL ASSY, IGNITION, RR | 1 шт. | — | |
|
| 15 | 01547-0620B | BOLT | 4 шт. | — | |
|
| 16 | 33510-17G00 | CAP ASSY, SPARK PLUG | 2 шт. | — | |
|
| 17 | 33541-23E10 | SEAL, SPARK PLUG CAP | 2 шт. | — | |
|
| 18 | 33542-06G00 | SEAL,HT CORD RR | 1 шт. | — | |
|
| 19 | 33542-06G10 | SEAL,HT CORD FR | 1 шт. | — | |
|
| 20 | 32920-06G71 | CONTROL UNIT, FI | 1 шт. | — | |
|
| 21 | 33960-06G10 | SENSOR ASSY,FUEL CUT | 1 шт. | — | |
|
