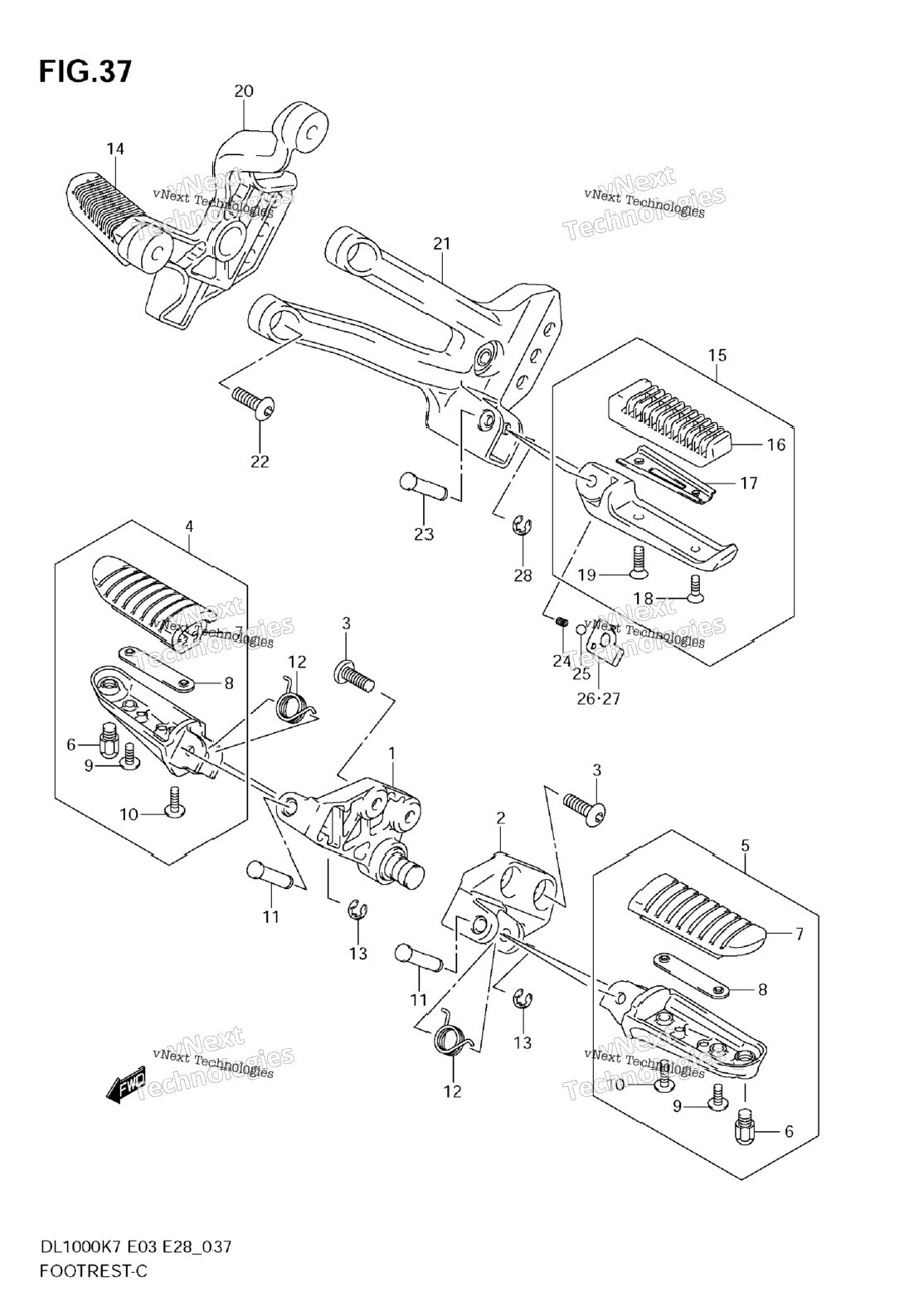

| 1 | 43510-06G01-YAP | BRACKET, FRONT RH (BLACK) | 1 шт. | — | |
|
| 2 | 43521-06G01-YAP | BRACKET, FRONT LH (BLACK) | 1 шт. | — | |
|
| 4 | 43501-06G10 | FOOTREST ASSY, FRONT RH | 1 шт. | — | |
|
| 5 | 43502-06G10 | FOOTREST ASSY, FRONT LH Includes Item(s) 6 - 10 | 1 шт. | — | |
|
| 6 | 43576-07D01 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 7 | 43551-06G00 | .RUBBER,FOOTREST | 2 шт. | — | |
|
| 8 | 43552-06G00 | .PLATE,FR FOOTREST RUBBER | 2 шт. | — | |
|
| 9 | 02142-0516A | .SCREW | 2 шт. | — | |
|
| 10 | 02142-0520A | SCREW, INNER | 2 шт. | — | |
|
| 11 | 09208-08016 | PIN | 2 шт. | — | |
|
| 12 | 09448-18022 | SPRING | 2 шт. | — | |
|
| 14 | 43600-42F10 | FOOTREST ASSY, PILLION RH | 1 шт. | — | |
|
| 15 | 43700-42F10 | FOOTREST ASSY, PILLION LH Includes Item(s) 16 - 19 | 1 шт. | — | |
|
| 16 | 43612-31300 | RUBBER | 2 шт. | — | |
|
| 17 | 43632-45501 | PLATE, STOP | 2 шт. | — | |
|
| 18 | 02122-0512A | SCREW, OUTER | 2 шт. | — | |
|
| 19 | 02122-0516A | SCREW, INNER | 0 шт. | — | |
|
| 20 | 43811-06G01-YAP | BRACKET, PILLION RH (BLACK) | 1 шт. | — | |
|
| 21 | 43821-06G01-YAP | BRACKET, PILLION LH (BLACK) | 1 шт. | — | |
|
| 22 | 09106-08150 | BOLT | 4 шт. | — | |
|
| 22 | 09106-08150 | BOLT, BRACKET | 4 шт. | — | |
|
| 23 | 09208-08010 | PIN | 2 шт. | — | |
|
| 24 | 09440-05005 | SPRING | 2 шт. | — | |
|
| 25 | 06111-07004 | BALL | 2 шт. | — | |
|
| 26 | 43816-42F10 | PLATE, FOOTREST RH | 1 шт. | — | |
|
| 27 | 43826-42F10 | PLATE, FOOTREST LH | 1 шт. | — | |
|
| 28 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 28 | 08332-1106A | E-RING | 2 шт. | — | |
|
