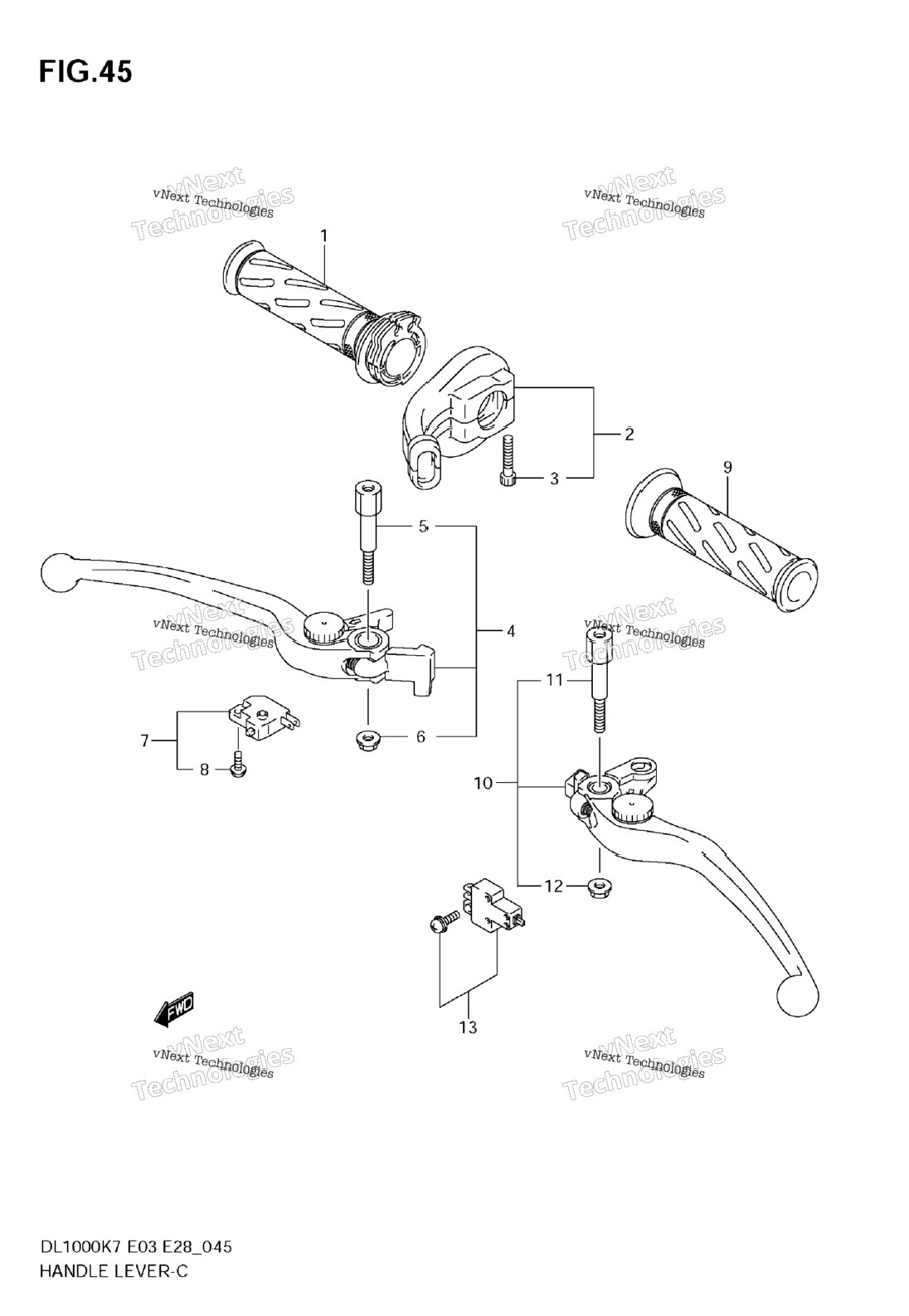

| 1 | 57110-45D02 | GRIP, THROTTLE | 1 шт. | — | |
|
| 2 | 57100-42F00 | CASE ASSY, THROTTLE Includes Item(s) 3 | 1 шт. | — | |
|
| 3 | 07130-0525B | BOLT | 2 шт. | — | |
|
| 4 | 57300-06G10 | LEVER ASSY, BRAKE Includes Item(s) 5 - 6 | 1 шт. | — | |
|
| 5 | 57431-06G00 | BOLT | 1 шт. | — | |
|
| 6 | 08319-2106A | .NUT | 1 шт. | — | |
|
| 7 | 57460-17C11 | SWITCH ASSY, STOP Includes Item(s) 8 | 1 шт. | — | |
|
| 8 | 57465-17C00 | SCREW | 1 шт. | — | |
|
| 9 | 57211-22D01 | GRIP LH | 1 шт. | — | |
|
| 10 | 57500-06G11 | LEVER ASSY, CLUTCH Includes Item(s) 11 - 12 | 1 шт. | — | |
|
| 11 | 57431-06G10 | BOLT | 1 шт. | — | |
|
| 12 | 08316-1006B | NUT | 1 шт. | — | |
|
| 13 | 57560-02FA0 | SWITCH ASSY,CLUTCH | 1 шт. | — | |
|
