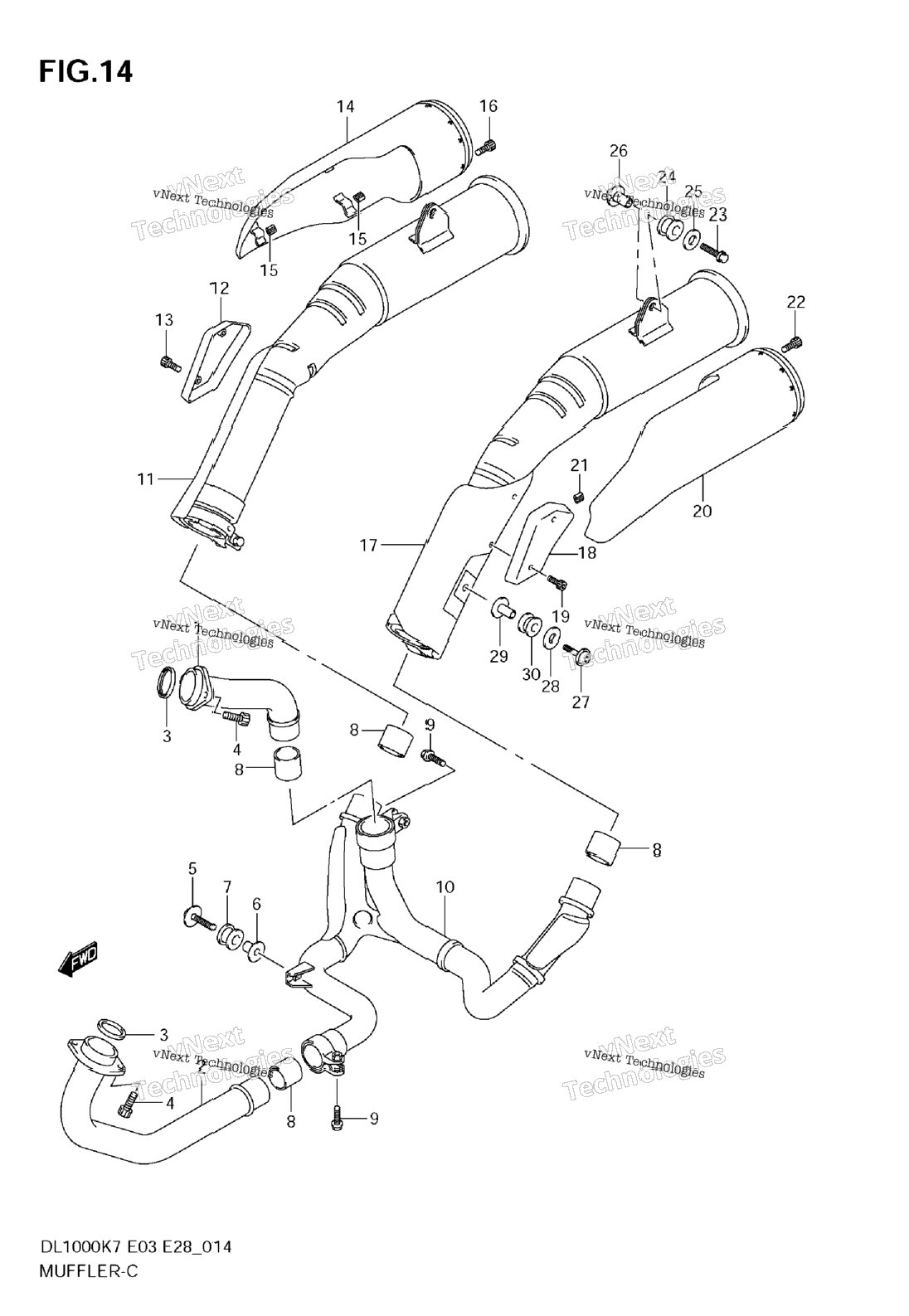

| 1 | 14150-06G00 | PIPE, EXHAUST RH | 0 шт. | — | |
|
| 2 | 14160-06G00 | PIPE, EXHAUST LH | 0 шт. | — | |
|
| 3 | 14181-31D00 | GASKET, EXHAUST PIPE | 2 шт. | — | |
|
| 4 | 09106-08165 | BOLT, EXHAUST PIPE | 4 шт. | — | |
|
| 5 | 09118-08152 | BOLT, EXHAUST SUPPORT | 1 шт. | — | |
|
| 6 | 09180-08152 | SPACER, EXHAUST SUPPORT | 1 шт. | — | |
|
| 7 | 09320-12048 | CUSHION, EXHAUST SUPPORT | 1 шт. | — | |
|
| 8 | 14771-02F00 | CONNECTOR, EXHAUST | 4 шт. | — | |
|
| 9 | 09103-08392 | BOLT, CONNECTOR | 4 шт. | — | |
|
| 10 | 14205-06G10 | PIPE, EXHAUST CENTER | 1 шт. | — | |
|
| 11 | 14305-06G02-H01 | MUFFLER, RH | 0 шт. | — | |
|
| 12 | 14186-06G00 | PROTECTOR, MUFFLER COVER, RH | 1 шт. | — | |
|
| 13 | 07130-0512B | SCREW, PROTECTOR MUFFLER | 2 шт. | — | |
|
| 14 | 14780-06G01 | COVER, MUFFLER, RH | 1 шт. | — | |
|
| 15 | 14795-06G00 | GROMMET, MUFFLER COVER | 3 шт. | — | |
|
| 16 | 09106-06076 | SCREW, MUFFLER COVER | 2 шт. | — | |
|
| 17 | 14306-06G02-H01 | MUFFLER, LH | 1 шт. | — | |
|
| 18 | 14196-06G00 | PROTECTOR, MUFFLER COVER, LH | 1 шт. | — | |
|
| 19 | 07130-0512B | SCREW, PROTECTOR MUFFLER | 2 шт. | — | |
|
| 20 | 14790-06G01 | COVER, MUFFLER, LH | 1 шт. | — | |
|
| 21 | 14795-06G00 | GROMMET, MUFFLER COVER | 3 шт. | — | |
|
| 22 | 09106-06076 | SCREW, MUFFLER COVER | 2 шт. | — | |
|
| 23 | 09103-08358 | BOLT, MUFFLER SUPPORT | 2 шт. | — | |
|
| 24 | 09320-12049 | CUSHION, MUFFLER SUPPORT | 2 шт. | — | |
|
| 25 | 09160-08146 | WASHER, MUFFLER SUPPORT | 2 шт. | — | |
|
| 26 | 14414-06G00 | NUT, MUFFLER SUPPORT | 0 шт. | — | |
|
| 27 | 09106-08147 | BOLT, MUFFLER SUPPORT FRONT | 2 шт. | — | |
|
| 28 | 09160-08134 | WASHER, MUFFLER SUPPORT FRONT | 2 шт. | — | |
|
| 29 | 09180-08151 | SPACER, MUFFLER SUPPORT FRONT | 2 шт. | — | |
|
| 30 | 09320-12043 | CUSHION, MUFFLER SUPPORT FRONT | 2 шт. | — | |
|
