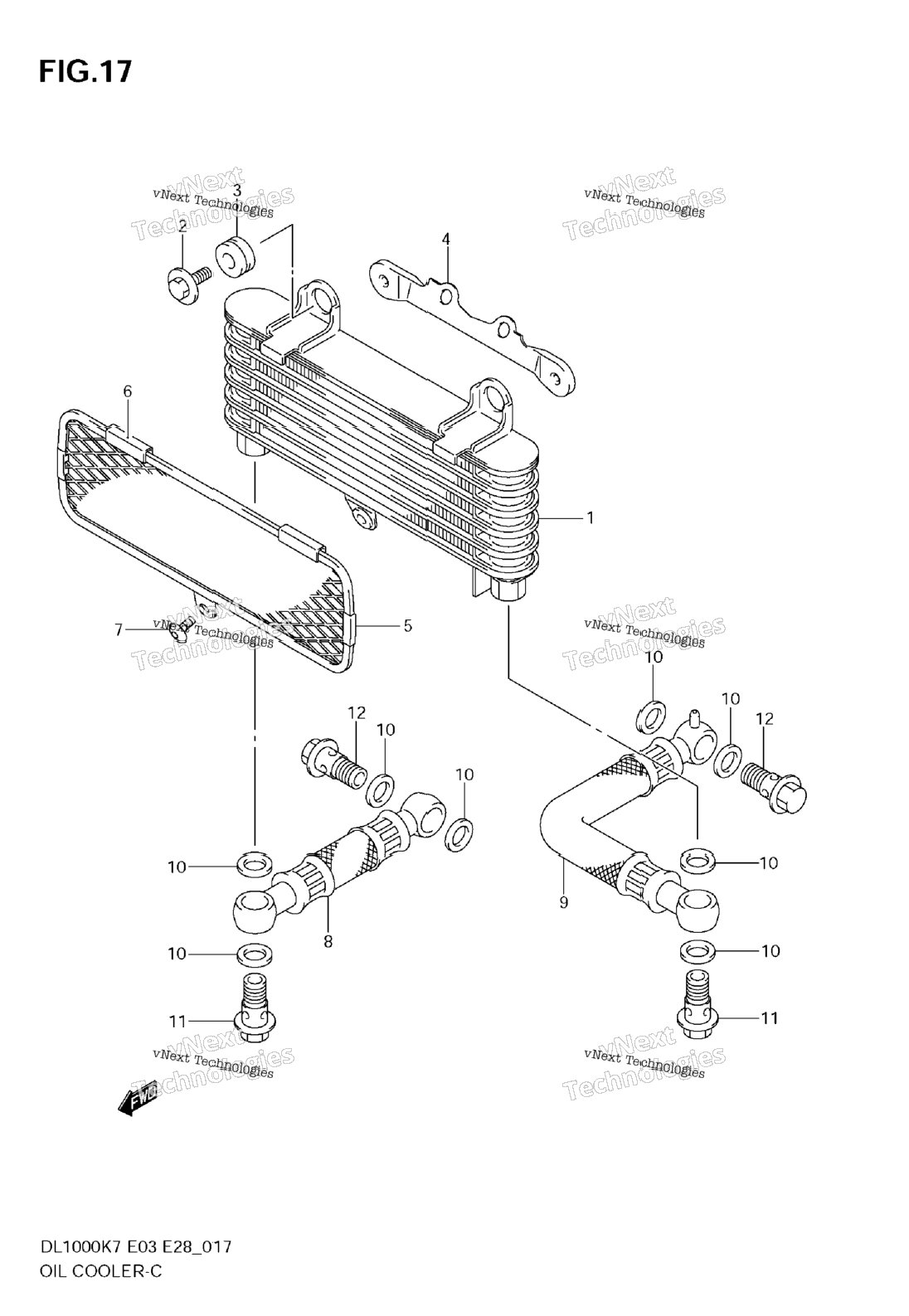

| 1 | 16600-16G00 | COOLER ASSY, OIL | 1 шт. | — | |
|
| 2 | 09116-06167 | BOLT | 2 шт. | — | |
|
| 3 | 09320-09009 | CUSHION | 2 шт. | — | |
|
| 4 | 16620-02F00 | BRACKET, OIL COOLER | 1 шт. | — | |
|
| 5 | 16650-16G00 | GUARD, OIL COOLER Includes Item(s) 6 | 1 шт. | — | |
|
| 6 | 17765-09F00 | PROTECTOR, CENTER | 2 шт. | — | |
|
| 7 | 02142-0510B | BOLT | 1 шт. | — | |
|
| 8 | 16460-16G00 | HOSE, OIL COOLER, RH | 1 шт. | — | |
|
| 9 | 16470-16G00 | HOSE, OIL COOLER, LH | 0 шт. | — | |
|
| 10 | 09168-14015 | GASKET | 8 шт. | — | |
|
| 11 | 09360-12012 | BOLT, UNION | 2 шт. | — | |
|
| 12 | 09360-14015 | BOLT | 2 шт. | — | |
|
