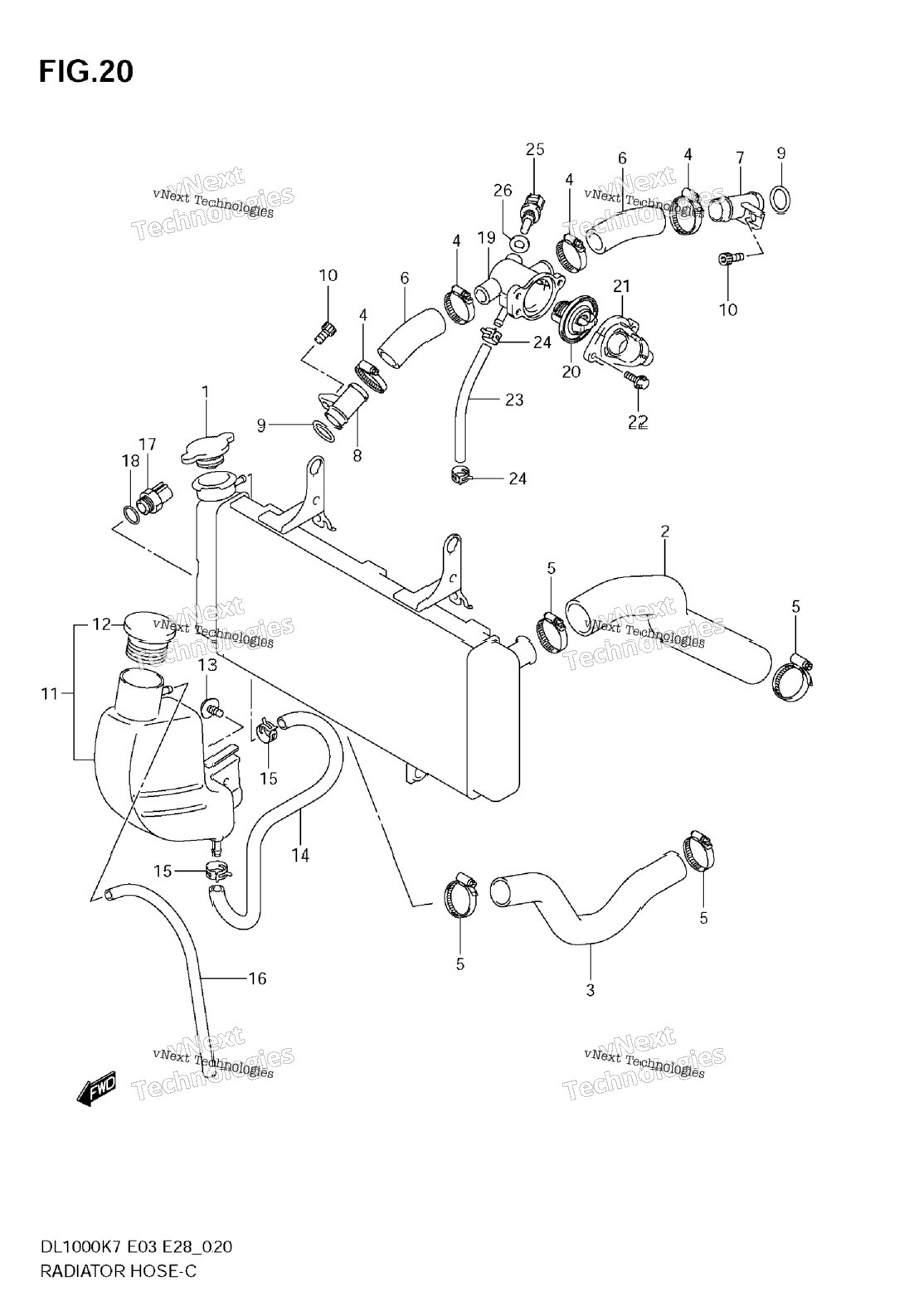

| 1 | 17730-12C20 | CAP, RADIATOR | 1 шт. | — | |
|
| 2 | 17851-06G00 | HOSE, RADIATOR INLET | 1 шт. | — | |
|
| 3 | 17852-06G00 | HOSE, RADIATOR OUTLET | 1 шт. | — | |
|
| 4 | 09402-28513 | CLAMP | 4 шт. | — | |
|
| 5 | 09402-38512 | CLAMP | 4 шт. | — | |
|
| 6 | 17853-02F00 | HOSE, CONNECTOR INLET | 2 шт. | — | |
|
| 7 | 17890-06G20 | UNION,CONNECTOR HOSE | 1 шт. | — | |
|
| 8 | 17890-06G20 | UNION,CONNECTOR HOSE | 1 шт. | — | |
|
| 9 | 09280-18009 | O RING | 2 шт. | — | |
|
| 10 | 07130-0612A | BOLT | 2 шт. | — | |
|
| 11 | 17910-06G10 | TANK ASSY, RESERVOIR Includes Item(s) 12 | 1 шт. | — | |
|
| 12 | 17931-06G00 | CAP | 1 шт. | — | |
|
| 13 | 09111-06085 | BOLT | 1 шт. | — | |
|
| 14 | 17981-19F00 | HOSE, RESERVOIR TANK INLET | 1 шт. | — | |
|
| 15 | 09401-08411 | CLIP | 2 шт. | — | |
|
| 16 | 09352-50901-00B | HOSE, RESERVOIR TANK L:2000!950 | 1 шт. | — | |
|
| 17 | 17680-33E00 | SWITCH, RADIATOR FAN Includes Item(s) 18 | 1 шт. | — | |
|
| 18 | 17689-50F00 | O RING | 1 шт. | — | |
|
| 19 | 17662-02F11 | CONNECTOR,THERMOSTAT,INLET | 1 шт. | — | |
|
| 20 | 17670-06G50 | THERMOSTAT | 1 шт. | — | |
|
| 21 | 17663-42E00 | CAP,THERMOSTAT CONNECTOR | 1 шт. | — | |
|
| 22 | 01550-0616B | .BOLT | 2 шт. | — | |
|
| 23 | 17856-16G10 | HOSE, WATER BYPASS | 1 шт. | — | |
|
| 24 | 09401-12409 | CLIP | 2 шт. | — | |
|
| 25 | 13650-57F00 | SENSOR, WATER TEMP | 1 шт. | — | |
|
| 26 | 09168-12017 | GASKET, TEMP SENSOR | 1 шт. | — | |
|
