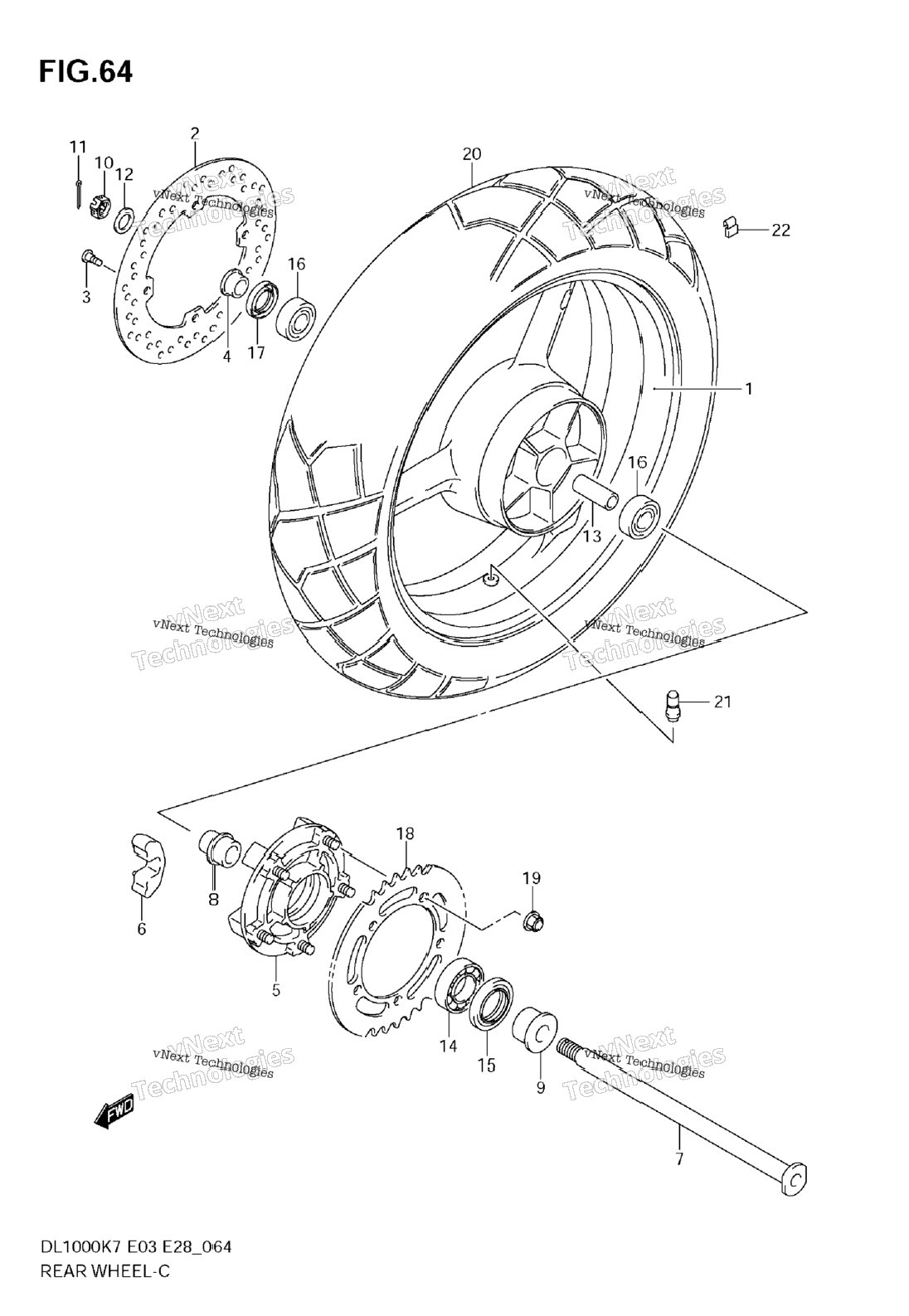

| 1 | 64111-06G01-019 | WHEEL, REAR, 17M/CXMT4.00 (BLACK) | 1 шт. | — | |
|
| 2 | 69211-06G00 | DISC,REAR BRAKE | 1 шт. | — | |
|
| 3 | 09106-08160 | BOLT | 4 шт. | — | |
|
| 4 | 64741-10F00 | SPACER, RR AXLE RH | 1 шт. | — | |
|
| 5 | 64610-06G00 | DRUM, REAR SPROCKET | 1 шт. | — | |
|
| 6 | 64651-35F10 | ABSORBER, RR HUB SHOCK | 5 шт. | — | |
|
| 7 | 64711-06G10 | AXLE, REAR MODEL K7/K8 | 0 шт. | — | |
|
| 8 | 64711-06G00 | AXLE, REAR MODEL K9 | 1 шт. | — | |
|
| 9 | 64733-06G00 | RETAINER, RR SPROCKET DRUM | 1 шт. | — | |
|
| 10 | 64751-06G00 | SPACER, RR AXLE, L | 1 шт. | — | |
|
| 11 | 08314-4018A | NUT MODEL K7/K8 | 1 шт. | — | |
|
| 12 | 09159-18007 | NUT MODEL K9 | 1 шт. | — | |
|
| 13 | 04111-4030A | PIN MODEL K7/K8 | 1 шт. | — | |
|
| 14 | 09160-19022 | WASHER (19X32X3.2) | 1 шт. | — | |
|
| 15 | 09180-20112 | SPACER, RR HUB BEARING | 1 шт. | — | |
|
| 16 | 09262-32007 | BEARING (32X65X17) | 1 шт. | — | |
|
| 17 | 09285-39001 | OIL SEAL (39X65X7) | 1 шт. | — | |
|
| 18 | 08123-62047 | BEARING (20X47X14) | 2 шт. | — | |
|
| 19 | 09285-28001 | SEAL, DUST | 1 шт. | — | |
|
| 20 | 64511-35F20 | SPROCKET, REAR, NT:41-525 | 1 шт. | — | |
|
| 21 | 08319-3110A | NUT | 5 шт. | — | |
|
| 22 | 65110-06G00 | TIRE, REAR, 150/70R17M/C 69H BRIDGESTONE TRAIL WING 152 RADIAL F | 1 шт. | — | |
|
| 23 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 24 | 43222-73H10 | BALANCER, WHEEL NO.1 | 1 шт. | — | |
|
| 25 | 43224-73H10 | BALANCER, WHEEL NO.2 | 1 шт. | — | |
|
| 26 | 43226-73H10 | BALANCER, WHEEL NO.3 | 1 шт. | — | |
|
