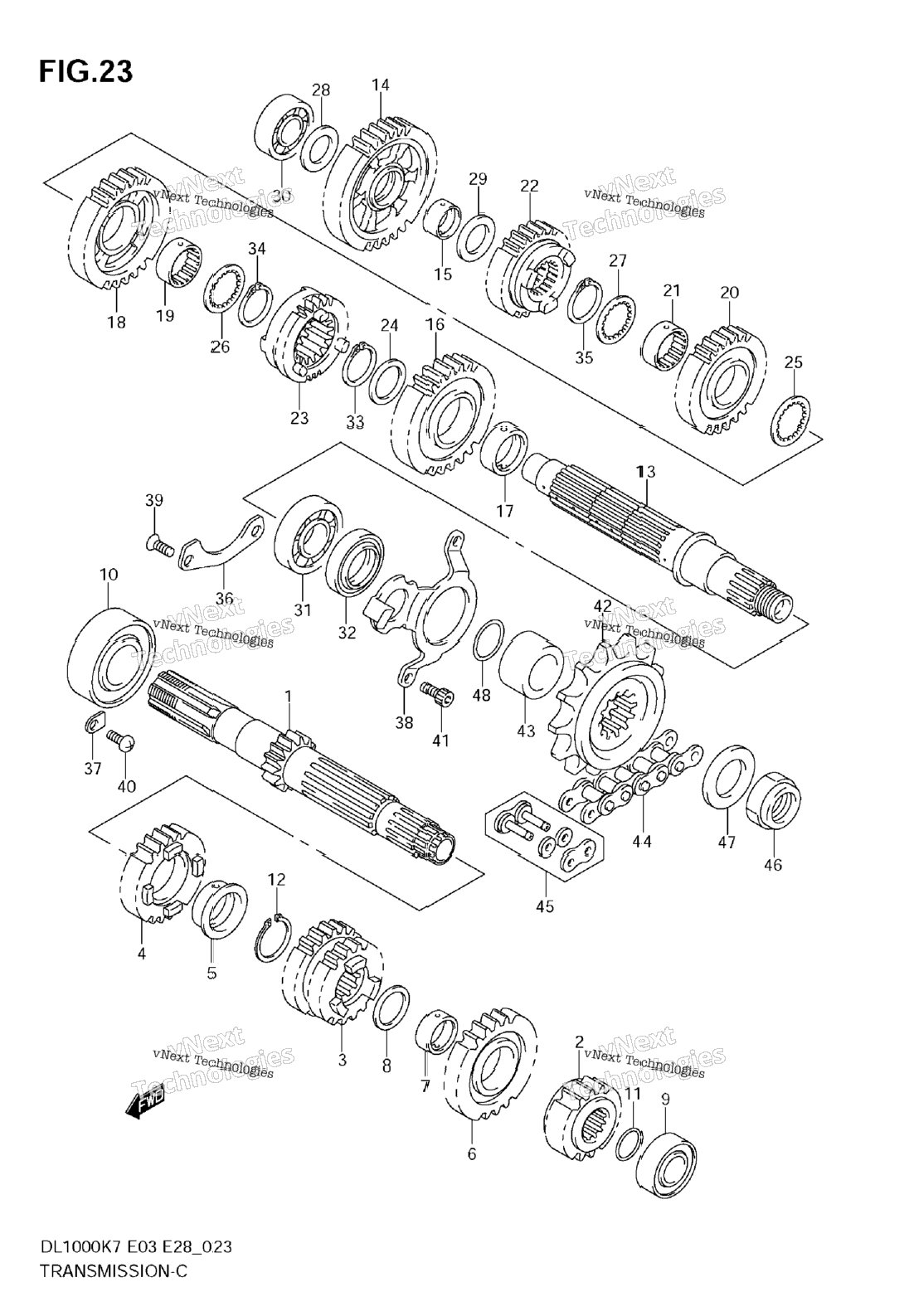

| 1 | 24120-06G00 | SHAFT, COUNTER (NT:12) | 1 шт. | — | |
|
| 2 | 24221-02F01 | GEAR, 2ND DRIVE (NT:15) | 1 шт. | — | |
|
| 3 | 24231-02F20 | GEAR, 3RD & 4TH DRIVE NT:18/27 | 1 шт. | — | |
|
| 4 | 24251-02F11 | GEAR, 5TH DRIVE (NT:23) | 1 шт. | — | |
|
| 5 | 24252-02F10 | BUSH, 5TH DRIVE GEAR | 1 шт. | — | |
|
| 6 | 24261-06G00 | GEAR, 6TH DRIVE (NT:23) | 0 шт. | — | |
|
| 7 | 24262-02F00 | BUSH, 6TH DRIVE GEAR | 1 шт. | — | |
|
| 8 | 09181-22167 | SHIM (22X30X1.0) 22X30X1.0 | 1 шт. | — | |
|
| 9 | 09262-20139 | BEARING, CENTER SHAFT LH 20X47X14 | 1 шт. | — | |
|
| 10 | 09262-25073 | BEARING, CENTER SHAFT RH 25X62X17 | 1 шт. | — | |
|
| 11 | 09280-17004 | O RING, CENTER SHAFT D:1.9,ID:16.6 | 1 шт. | — | |
|
| 12 | 09380-27001 | CIRCLIP, 5TH DRIVE | 1 шт. | — | |
|
| 13 | 24130-02F10 | SHAFT, DRIVE | 0 шт. | — | |
|
| 14 | 24311-06G00 | GEAR, 1ST DRIVEN (NT:36) | 0 шт. | — | |
|
| 15 | 24312-02F00 | BUSH, 1ST DRIVEN | 1 шт. | — | |
|
| 16 | 24321-02F11 | GEAR, 2ND DRIVEN (NT:29) | 1 шт. | — | |
|
| 17 | 24322-02F01 | BUSH, 2ND DRIVEN | 1 шт. | — | |
|
| 18 | 24331-02F12 | GEAR, 3RD DRIVEN (NT:27) | 0 шт. | — | |
|
| 19 | 24332-17E20 | BUSH, 3RD DRIVEN GEAR | 1 шт. | — | |
|
| 20 | 24341-02F20 | GEAR, 4TH DRIVEN (NT:27) | 1 шт. | — | |
|
| 21 | 24332-17E20 | BUSH, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 22 | 24351-02F13 | GEAR, 5TH DRIVEN (NT:25) | 1 шт. | — | |
|
| 23 | 24361-06G00 | GEAR, 6TH DRIVEN (NT:21) | 1 шт. | — | |
|
| 24 | 09160-27008 | WASHER, 2ND DRIVEN GEAR 27X36X1 | 1 шт. | — | |
|
| 25 | 09167-27002 | WASHER, 3RD & 4TH DRIVEN 27X36X2 | 0 шт. | — | |
|
| 26 | 24333-02F00 | WASHER, 3RD DRIVEN | 1 шт. | — | |
|
| 27 | 24333-02F00 | WASHER, 4TH DRIVEN | 1 шт. | — | |
|
| 28 | 09181-20251 | WASHER, 1ST DRIVEN RH 20X34X1 | 1 шт. | — | |
|
| 29 | 09181-22223 | WASHER, 1ST DRIVEN LH 22X34X1 | 1 шт. | — | |
|
| 30 | 09262-20082 | BEARING, DRIVE SHAFT RH 20X52X15 | 1 шт. | — | |
|
| 31 | 09262-28040 | BEARING, DRIVE SHAFT LH 28X68X20 | 1 шт. | — | |
|
| 32 | 09283-38020 | SEAL, DRIVE SHAFT 38X52X8 | 1 шт. | — | |
|
| 33 | 09380-27001 | CIRCLIP, 2ND DRIVEN | 1 шт. | — | |
|
| 34 | 09380-27001 | CIRCLIP, 3RD DRIVEN | 1 шт. | — | |
|
| 35 | 09380-27001 | CIRCLIP, 4TH DRIVEN | 1 шт. | — | |
|
| 36 | 24741-06G00 | RETAINER, DRIVE SHAFT | 1 шт. | — | |
|
| 37 | 24741-21A00 | RETAINER, CENTER SHAFT | 1 шт. | — | |
|
| 38 | 24751-06G00 | RETAINER, DRIVE SHAFT | 1 шт. | — | |
|
| 39 | 09126-06011 | SCREW, DRIVE SHAFT (6X12) | 2 шт. | — | |
|
| 40 | 02112-0612A | SCREW, CENTER SHAFT | 1 шт. | — | |
|
| 41 | 07130-0612A | BOLT, DRIVE SHAFT OIL | 2 шт. | — | |
|
| 42 | 27510-20A20 | SPROCKET, ENGINE (NT:17) | 1 шт. | — | |
|
| 43 | 27531-24B13 | SPACER, SPROCKET | 1 шт. | — | |
|
| 44 | 27600-06G00-112 | CHAIN ASSY (RK525SMOZ7) | 1 шт. | — | |
|
| 45 | 27620-06G00 | JOINT SET, CHAIN OPT | 1 шт. | — | |
|
| 46 | 09159-20004 | NUT | 1 шт. | — | |
|
| 47 | 09160-25009 | WASHER (25X41X3) | 1 шт. | — | |
|
| 48 | 09280-24010 | O RING (D:2.4,ID:23.7) | 1 шт. | — | |
|
