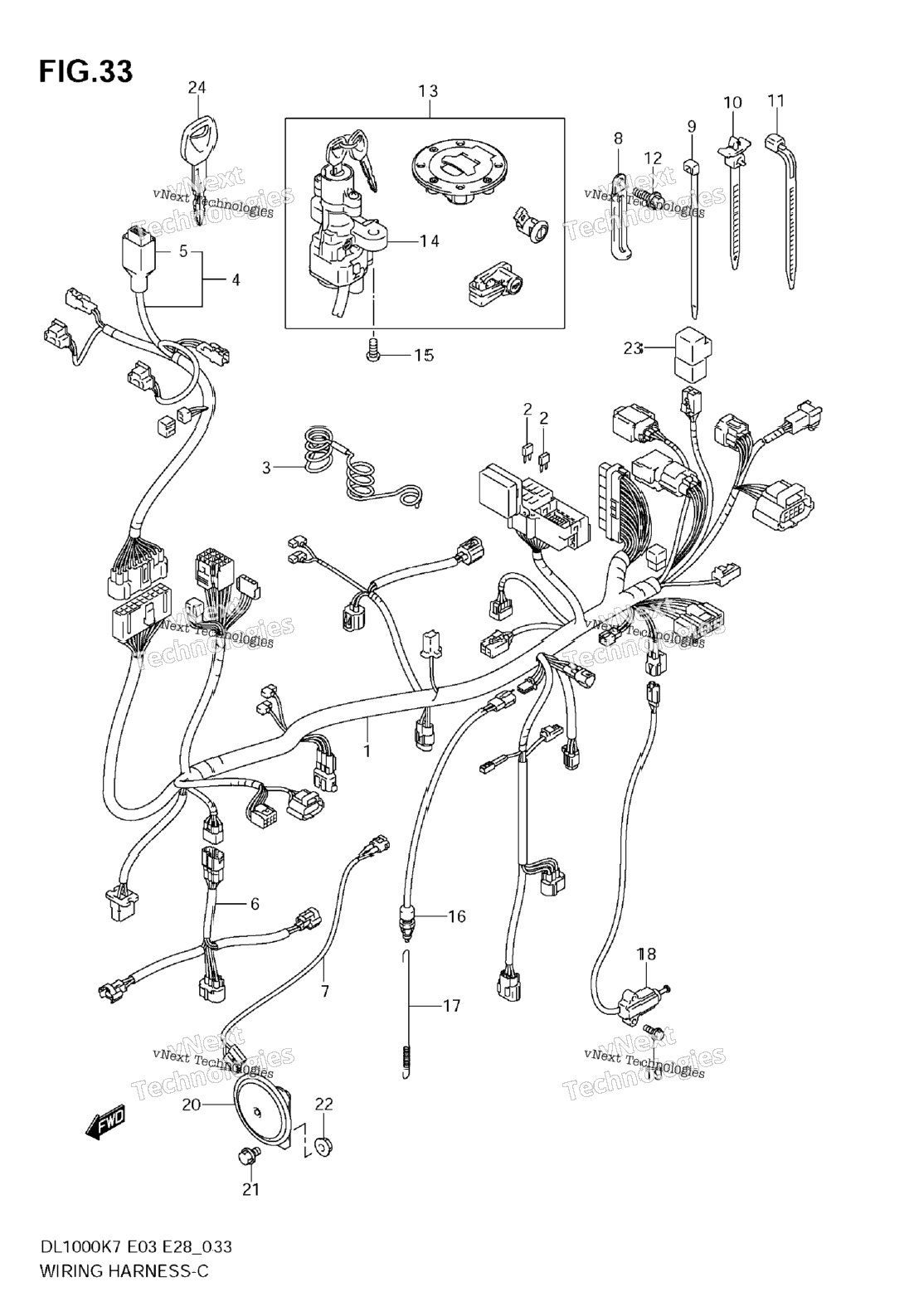

| 1 | 36610-06G70 | HARNESS, WIRING NO.1 Includes Item(s) 2 - 2 | 1 шт. | — | |
|
| 2 | 09481-10501 | FUSE (10A) | 2 шт. | — | |
|
| 3 | 09481-15501 | FUSE (15A) | 4 шт. | — | |
|
| 4 | 36619-06G01 | GUIDE, WIRING HARNESS | 1 шт. | — | |
|
| 5 | 36620-27G30 | HARNESS, WIRING NO.2 Includes Item(s) 5 | 1 шт. | — | |
|
| 6 | 36618-18G10 | COVER, SPEEDOMETER | 0 шт. | — | |
|
| 7 | 36859-06G00 | WIRE, INJECTOR LEAD | 0 шт. | — | |
|
| 8 | 36852-06G00 | WIRE, HORN LEAD | 1 шт. | — | |
|
| 9 | 09404-06429 | CLAMP (L:45) | 1 шт. | — | |
|
| 10 | 09404-06433 | CLAMP (L:80) | 1 шт. | — | — |
|
| 11 | 09407-14407 | CLAMP (L:145) | 1 шт. | — | |
|
| 12 | 09407-17402 | CLAMP (L:150) | 1 шт. | — | |
|
| 13 | 09407-11401 | CLAMP (L:95) | 1 шт. | — | |
|
| 14 | 09407-14403 | CLAMP (L:125) | 2 шт. | — | |
|
| 15 | 01547-0610B | BOLT | 1 шт. | — | |
|
| 16 | 37000-06860 | LOCK SET | 1 шт. | — | |
|
| 17 | 37000-06870 | LOCK SET E33; Includes Item(s) 14 | 0 шт. | — | |
|
| 18 | 37100-06G00 | LOCK ASSY, STEERING | 1 шт. | — | |
|
| 19 | 09139-08016 | SCREW (8X20) | 2 шт. | — | |
|
| 20 | 37740-45D00 | SWITCH ASSY, STOP LAMP | 1 шт. | — | |
|
| 21 | 43259-06G00 | SPRING, STOP LAMP | 0 шт. | — | |
|
| 22 | 37840-06G00 | SWITCH ASSY, SIDE STAND | 1 шт. | — | |
|
| 23 | 01550-0616B | .BOLT | 2 шт. | — | |
|
| 24 | 38500-41F00 | HORN ASSY | 1 шт. | — | |
|
| 25 | 01550-0812B | BOLT | 1 шт. | — | |
|
| 26 | 08316-1008B | .NUT | 1 шт. | — | |
|
| 27 | 38740-24X50 | RELAY ASSY, FUEL PUMP | 1 шт. | — | |
|
| 28 | 37146-33E00 | KEY,BLANK OPT | 1 шт. | — | |
|
