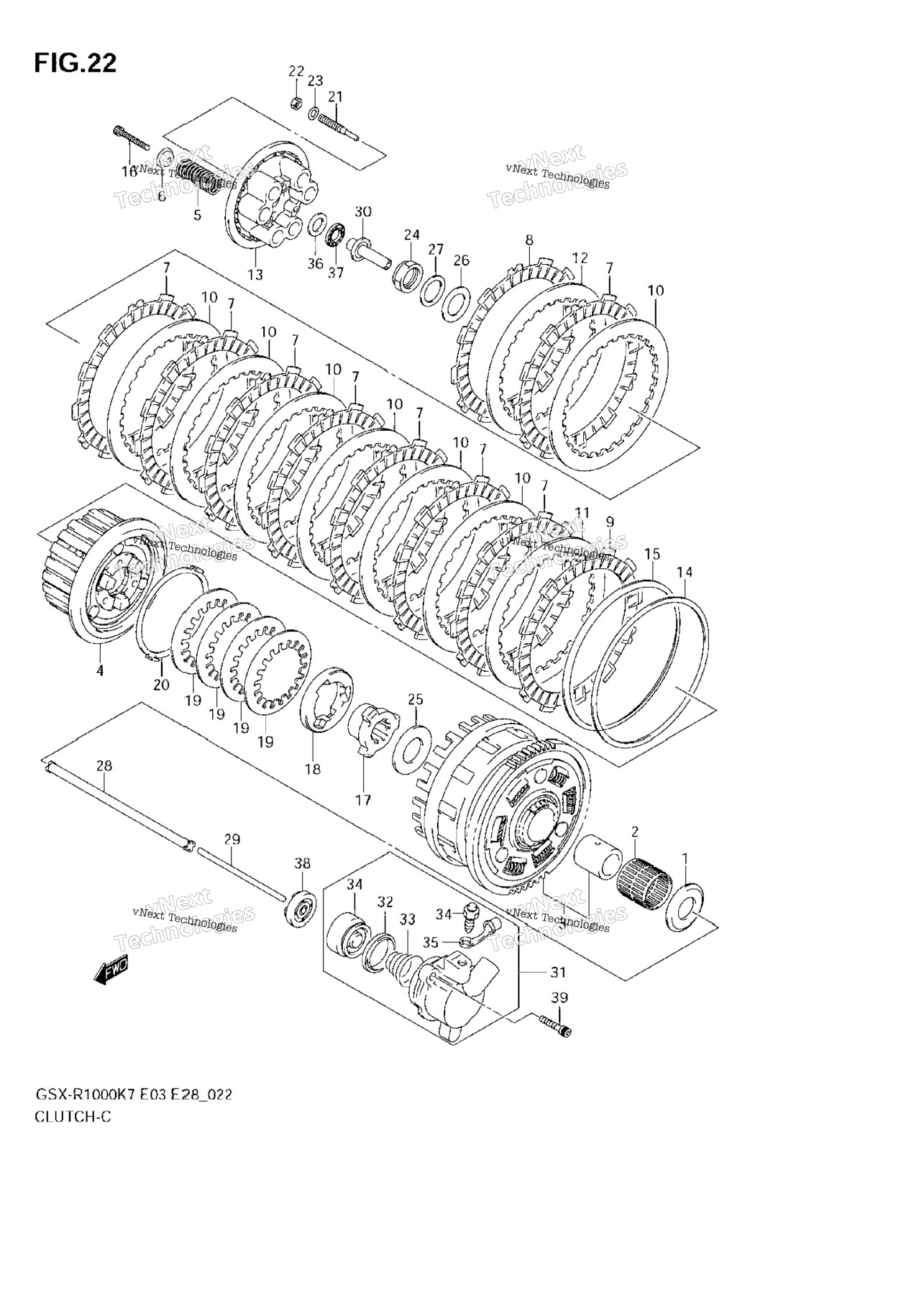

| 1 | 09160-25073 | WASHER, PRI DRIVEN GEAR THR 25X54X2.4 | 1 шт. | — | |
|
| 2 | 09263-35017 | BEARING, PRIMARY DRIVEN GEAR 35X40X35.8 | 1 шт. | — | |
|
| 3 | 21200-40880 | GEAR ASSY, PRI DRIVEN (NT:73) NT:73 | 1 шт. | — | |
|
| 4 | 21410-41G20 | HUB,CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21413-41G00 | SPRING, CLUTCH | 6 шт. | — | |
|
| 6 | 21414-29F00 | WASHER, CLUTCH SPRING | 6 шт. | — | |
|
| 7 | 21441-36F00 | PLATE, CLUTCH DRIVE NO.1 | 8 шт. | — | |
|
| 8 | 21441-36F20 | PLATE, CLUTCH DRIVE NO.2 | 1 шт. | — | |
|
| 9 | 21442-41G00 | PLATE, CLUTCH DRIVE NO.3 | 1 шт. | — | |
|
| 10 | 21451-41G00 | PLATE, CLUTCH DRIVEN (T:2.3) T:2.3 | 8 шт. | — | |
|
| 11 | 21451-41G40 | PLATE, CLUTCH DRIVEN NO.2 T:2.3 | 1 шт. | — | |
|
| 12 | 21451-41G20 | PLATE, CLUTCH DRIVEN NO.3 T:2.6 | 1 шт. | — | |
|
| 13 | 21462-41G00 | DISC,CLUTCH PRESSURE | 1 шт. | — | |
|
| 14 | 21471-41G00 | SEAT,WAVE WASHER | 1 шт. | — | |
|
| 15 | 21472-41G10 | WASHER, CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 16 | 21482-41G10 | BOLT, CLUTCH SPRING | 6 шт. | — | |
|
| 17 | 21611-41G20 | CAM,CLUTCH DRIVE | 1 шт. | — | |
|
| 18 | 21612-41G20 | CAM,CLUTCH DRIVEN | 1 шт. | — | |
|
| 19 | 21621-41G00 | WASHER,CAM REACTION WAVE | 4 шт. | — | |
|
| 20 | 21624-41G10 | WASHER,CAM REACTION SEAT | 1 шт. | — | |
|
| 21 | 21622-41G00 | LIFTER, CLUTCH PRESSURE DISK | 3 шт. | — | |
|
| 22 | 21623-41G00 | NUT, CL PRESS DISK LIFTER LOCK | 3 шт. | — | |
|
| 23 | 09181-08139 | WASHER, LIFTER LOCK NUT | 3 шт. | — | |
|
| 24 | 09159-24010 | NUT, CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 25 | 09160-25056 | WASHER, CLUTCH SLEEVE HUB THR 25X50X2.5 | 1 шт. | — | |
|
| 26 | 09160-25077 | WASHER, CLUTCH SLEEVE HUB 25X41X2.5 | 1 шт. | — | |
|
| 27 | 09164-24006 | WASHER, CLUTCH SLEEVE HUB WAVE | 1 шт. | — | |
|
| 28 | 23110-24F00 | ROD, CLUTCH | 1 шт. | — | |
|
| 29 | 23111-24A01 | ROD, CLUTCH PUSH, L | 1 шт. | — | |
|
| 30 | 23121-31E20 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 31 | 23160-06G10 | CYLINDER, CLUTCH RELEASE Includes Item(s) 32 - 35 | 1 шт. | — | |
|
| 32 | 23163-06B00 | CUP | 1 шт. | — | |
|
| 33 | 23164-05A00 | SPRING | 1 шт. | — | |
|
| 34 | 59121-01A00 | BLEEDER | 1 шт. | — | |
|
| 35 | 59122-01A00 | CAP, BLEEDER | 1 шт. | — | |
|
| 36 | 09160-15045 | WASHER, CLUTCH PUSH 15.5X28X1 | 1 шт. | — | |
|
| 37 | 09263-15003 | BEARING, CLUTCH PUSH 15X28X2 | 1 шт. | — | |
|
| 38 | 09285-06011 | SEAL, CLUTCH PUSH ROD 5X34X10 | 1 шт. | — | |
|
| 39 | 07130-0620A | BOLT, CLUTCH RELEASE | 2 шт. | — | |
|
