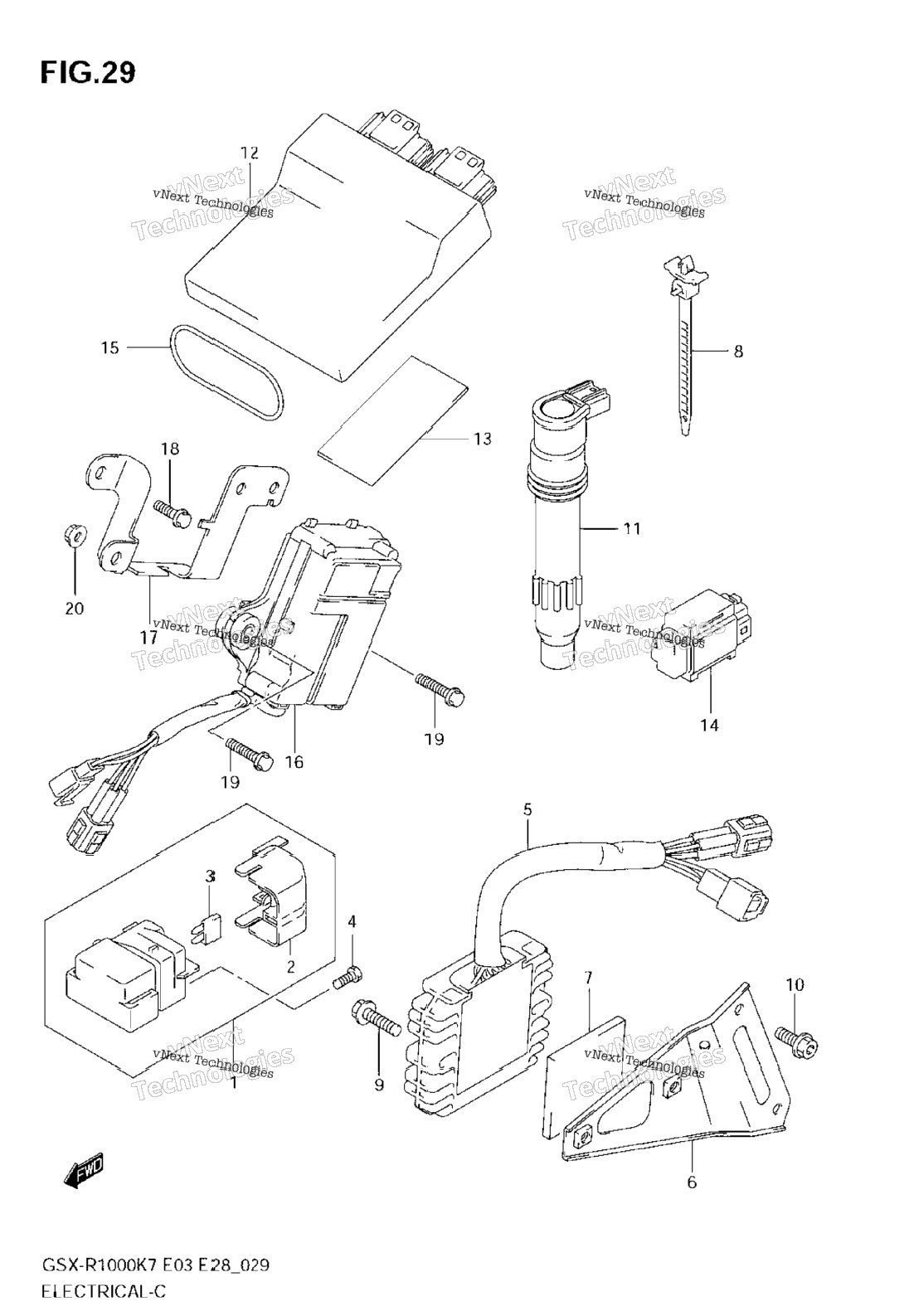

| 1 | 31800-41G00 | RELAY ASSY, STARTING MOTOR Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 31861-38G00 | COVER | 1 шт. | — | |
|
| 3 | 09481-30501 | FUSE (30A) | 2 шт. | — | |
|
| 4 | 09128-06013 | BOLT, STARTING MOTOR (6X8) | 2 шт. | — | |
|
| 5 | 32800-21H00 | RECTIFIER ASSY | 1 шт. | — | |
|
| 6 | 32830-21H00 | BRACKET, RECT FTG | 1 шт. | — | |
|
| 7 | 33652-20C00 | PROTECTOR (50X50X5) CUT AS REQUIRED (30X30) | 1 шт. | — | |
|
| 8 | 09407-11402 | CLAMP (L:90) | 1 шт. | — | |
|
| 9 | 02162-0620C | BOLT, RECTIFIER | 2 шт. | — | |
|
| 10 | 07120-0612A | BOLT, RECT BRKT | 2 шт. | — | |
|
| 11 | 33410-35F10 | COIL ASSY, IGNITION | 4 шт. | — | |
|
| 12 | 32920-21H10 | CONTROL UNIT, FI | 1 шт. | — | |
|
| 13 | 32920-21H20 | CONTROL UNIT, FI E33 | 0 шт. | — | |
|
| 14 | 33652-07D00 | CUSHION, FI (80X80X2.0) CUT AS REQUIRED (30X80) | 2 шт. | — | |
|
| 15 | 33960-06G10 | SENSOR ASSY,FUEL CUT | 1 шт. | — | |
|
| 16 | 09280-61002 | BAND, FI CONTROL UNIT D:3.5,ID:61 | 1 шт. | — | |
|
| 17 | 33970-41G00 | ACTUATOR ASSY, EXHAUST CONTROL | 1 шт. | — | |
|
| 18 | 33971-21H00 | HOLDER, ACTUATOR | 0 шт. | — | |
|
| 19 | 01550-0612A | BOLT, ACTUATOR HOLDER | 1 шт. | — | |
|
| 20 | 01560-0625A | BOLT, ACTUATOR | 2 шт. | — | |
|
| 21 | 08319-3106A | NUT, ACTUATOR | 1 шт. | — | |
|
