Fuel Tank (Model K8)

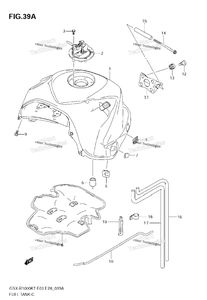

Схема Fuel Tank (Model K8)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 44100-21H80-019 | TANK ASSY, FUEL (BLACK) E33 FOR CRU,FGG | 0 шт. | — | |
| 1 | 44100-21H60-019 | TANK ASSY, FUEL (BLACK) E3,E28 FOR CRU,FGG | 1 шт. | — | |
| 1 | 44100-21H80-YKY | TANK ASSY, FUEL (BLUE) E33 FOR CWH | 0 шт. | — | |
| 1 | 44100-21H60-YKY | TANK ASSY, FUEL (BLUE) E3,E28 FOR CWH | 1 шт. | — | |
| 1 | 44100-21H80-YBD | TANK ASSY, FUEL (WHITE) E33 FOR FGF | 0 шт. | — | |
| 1 | 44100-21H60-YBD | TANK ASSY, FUEL (WHITE) E3,E28 FOR FGF | 1 шт. | — | |
| 2 | 44200-16870 | CAP SET, FUEL TANK E33 | 1 шт. | — | |
| 2 | 44200-16850 | CAP SET, FUEL TANK E3,E28 | 1 шт. | — | |
| 3 | 09106-05017 | BOLT | 3 шт. | — | |
| 4 | 44572-13G00 | .FASTENER (33X25X2.6) | 6 шт. | — | |
| 5 | 44541-41G00 | CUSHION, FUEL TANK SIDE | 2 шт. | — | |
| 6 | 44542-41G00 | CUSHION, LOWER | 2 шт. | — | |
| 7 | 09329-18001 | CUSHION, SIDE COVER | 4 шт. | — | |
| 8 | 44191-21H00 | SHIELD, HEAT | 1 шт. | — | |
| 9 | 09139-06172 | SCREW, BRACKET FRONT | 4 шт. | — | |
| 10 | 44574-35F00 | STAY, FUEL TANK | 1 шт. | — | |
| 11 | 44530-41G00 | BRACKET, NO.1 | 1 шт. | — | |
| 12 | 09139-06132 | SCREW | 4 шт. | — | |
| 13 | 09320-08071 | CUSHION | 4 шт. | — | |
| 14 | 09106-06119 | BOLT, JOINT | 1 шт. | — | |
| 15 | 44561-18G00 | SPACER, JOINT | 1 шт. | — | |
| 16 | 44423-21H00 | HOSE, DRAIN | 1 шт. | — | |
| 17 | 44424-21H00 | HOSE, BREATHER | 1 шт. | — | |
| 18 | 09403-11307 | CLAMP, NO.1 | 0 шт. | — | |
| 19 | 09404-06433 | CLAMP, NO.2 | 1 шт. | — | — |
