Fuel Tank Front Cover (Model K7)

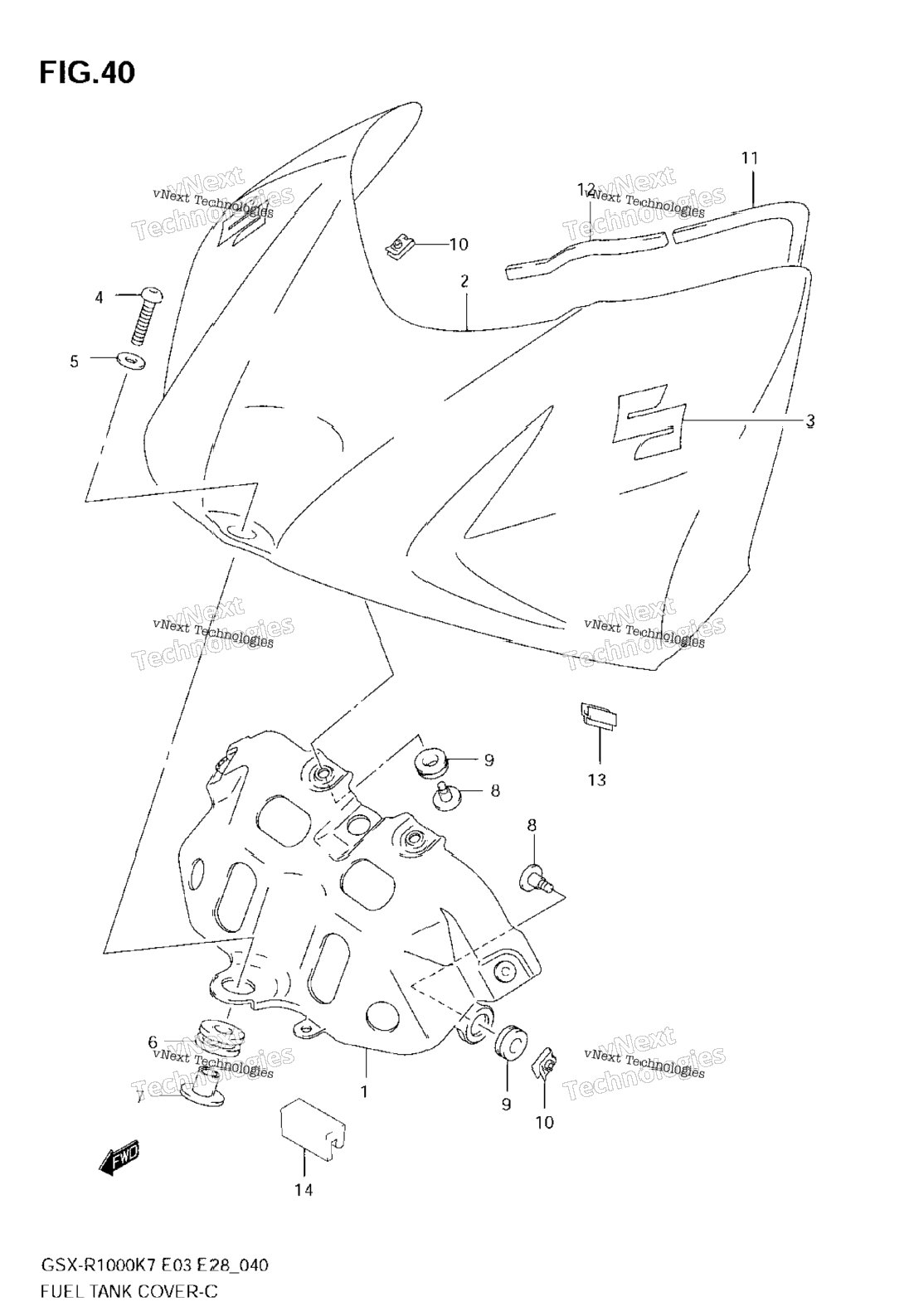

Схема Fuel Tank Front Cover (Model K7)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 44520-21H00 | BRACKET, FRONT | 1 шт. | — | |
| 2 | 44291-21H00-019 | COVER, TANK FRONT (BLACK) FOR CRU,ECE | 0 шт. | — | |
| 2 | 44291-21H00-YKY | COVER, TANK FRONT (BLUE) FOR CWH | 0 шт. | — | |
| 2 | 44291-21H00-YMD | COVER, TANK FRONT (SILVER) FOR EDR | 0 шт. | — | |
| 2 | 44291-21H00-YMF | COVER, TANK FRONT (YELLOW) FOR EDS | 0 шт. | — | |
| 3 | 68111-18G20 | EMBLEM | 2 шт. | — | |
| 4 | 09106-08156 | BOLT (8X37) | 1 шт. | — | |
| 5 | 09160-08054 | WASHER | 1 шт. | — | |
| 6 | 09320-12053 | CUSHION | 1 шт. | — | |
| 7 | 09180-08174 | SPACER | 1 шт. | — | |
| 8 | 09139-05078 | SCREW, TANK COVER | 4 шт. | — | |
| 9 | 09320-08021 | CUSHION | 3 шт. | — | |
| 10 | 09148-05052 | NUT (M5) | 3 шт. | — | |
| 11 | 44277-01H00 | CUSHION, TANK COVER NO.1 | 2 шт. | — | |
| 12 | 44278-01H00 | CUSHION, TANK COVER NO.2 | 2 шт. | — | |
| 13 | 44276-21H00 | CUSHION | 2 шт. | — | |
| 14 | 47142-48G00 | .MOLDING (L:60) | 1 шт. | — | |
