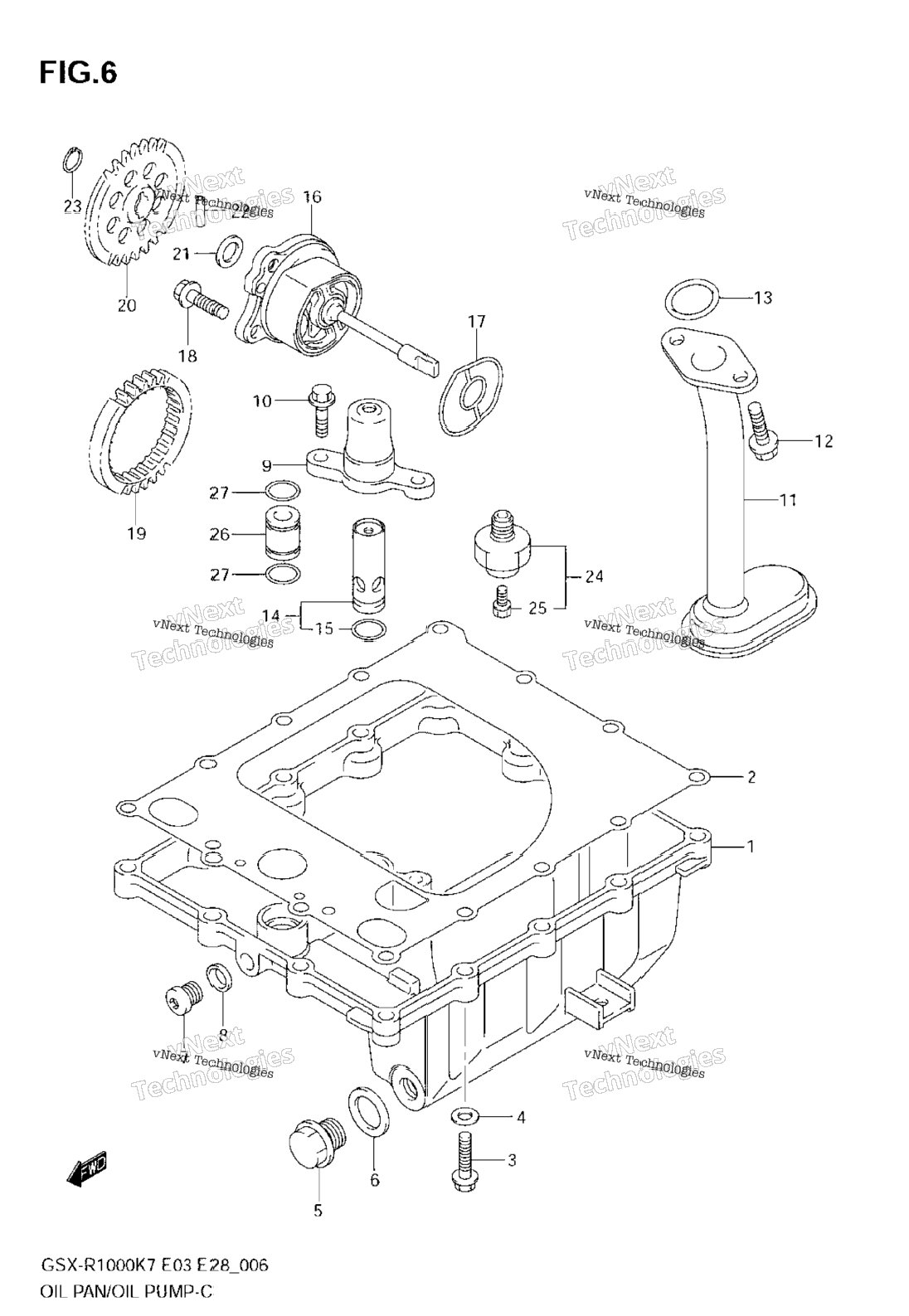

| 1 | 11511-21H00 | PAN, OIL | 1 шт. | — | |
|
| 2 | 11489-21H00 | .GASKET, OIL PAN | 1 шт. | — | |
|
| 3 | 01547-0625A | BOLT | 14 шт. | — | |
|
| 4 | 09168-06023 | GASKET (5.8X13X1.2) | 2 шт. | — | |
|
| 5 | 09247-14036 | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 6 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 7 | 09248-10010 | PLUG (10X10) | 1 шт. | — | |
|
| 8 | 09168-10002 | GASKET (10X14X3.6) | 1 шт. | — | |
|
| 9 | 11512-44G00 | CAP, OIL RELIEF VALVE | 1 шт. | — | |
|
| 11 | 16520-21H00 | STRAINER, ENGINE OIL | 1 шт. | — | |
|
| 12 | 09106-06099 | BOLT (6X16) | 2 шт. | — | |
|
| 13 | 09280-19008 | O RING (D:2.62,ID:20.3) | 1 шт. | — | |
|
| 14 | 16440-24F00 | VALVE ASSY, OIL RELIEF Includes Item(s) 15 | 1 шт. | — | |
|
| 16 | 16400-21H00 | PUMP ASSY, ENGINE OIL | 1 шт. | — | |
|
| 17 | 16491-35F00 | O RING | 1 шт. | — | |
|
| 18 | 01547-0620A | BOLT | 3 шт. | — | |
|
| 18 | 01547-0620A | BOLT | 2 шт. | — | |
|
| 19 | 16321-35F01 | GEAR, OIL PUMP DRIVE (NT:33) | 1 шт. | — | |
|
| 20 | 16331-35F00 | GEAR, OIL PUMP DRIVEN (NT:35) | 1 шт. | — | |
|
| 21 | 09181-10158 | WASHER | 1 шт. | — | |
|
| 22 | 09261-04009 | PIN | 1 шт. | — | |
|
| 23 | 08331-31106 | CIRCLIP | 1 шт. | — | |
|
| 24 | 37820-33D10 | SWITCH, OIL PRESSURE Includes Item(s) 25 | 1 шт. | — | |
|
| 25 | 37822-33D00 | .BOLT,OIL PRESSURE SWITCH | 1 шт. | — | |
|
| 26 | 11281-44G00 | PIPE, OIL GALLERY | 1 шт. | — | |
|
| 27 | 09280-13004 | .O-RING (D:1.9,ID:13) | 1 шт. | — | |
|
| 27 | 09280-13004 | .O-RING (D:1.9,ID:13) | 2 шт. | — | |
|
