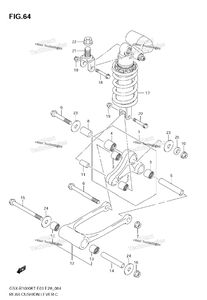

| 1 | 62600-21810 | LEVER SET, REAR CUSHION Includes Item(s) 2 - 4 | 1 шт. | — | |
|
| 2 | 09263-17034 | BEARING, FRONT (17X24X26) | 1 шт. | — | |
|
| 3 | 09263-17037 | BEARING, LOWER (17X24X25) | 2 шт. | — | |
|
| 4 | 09263-20074 | BEARING, UPPER (20X27X32) | 1 шт. | — | |
|
| 5 | 62646-08G00 | SPACER, LOWER | 1 шт. | — | |
|
| 6 | 62621-42E10 | BOLT, LOWER | 1 шт. | — | |
|
| 7 | 09159-12056-A05 | NUT | 1 шт. | — | |
|
| 8 | 62317-27C10 | SPACER, UPPER | 1 шт. | — | |
|
| 9 | 62658-19F00 | BOLT, UPPER | 1 шт. | — | |
|
| 10 | 09159-12056-A05 | NUT | 1 шт. | — | |
|
| 11 | 62684-40A10 | SPACER,RR CUSHION LEVER (10X1 | 1 шт. | — | |
|
| 12 | 62600-21820 | ROD SET, REAR CUSHION LEVER Includes Item(s) 13 | 1 шт. | — | |
|
| 13 | 09263-17037 | BEARING, ROD (17X24X25) | 2 шт. | — | |
|
| 14 | 62626-21H00 | SPACER, ROD | 1 шт. | — | |
|
| 15 | 62621-21H00 | BOLT, ROD | 1 шт. | — | |
|
| 16 | 09159-12056-A05 | NUT | 1 шт. | — | |
|
| 17 | 62100-21H10-163 | ABSORBER ASSY, REAR SHOCK E3 | 0 шт. | — | |
|
| 18 | 62100-21H20-163 | ABSORBER ASSY, REAR SHOCK E28 | 0 шт. | — | |
|
| 19 | 09103-10143 | BOLT, UPPER (10X55) | 1 шт. | — | |
|
| 20 | 09159-10115 | NUT | 2 шт. | — | |
|
| 21 | 09103-10143 | BOLT, LOWER (10X55) | 1 шт. | — | |
|
| 22 | 62993-35F00 | BRACKET, ABSORBER | 0 шт. | — | |
|
| 23 | 09159-20006 | NUT | 1 шт. | — | |
|
| 24 | 09160-12037 | WASHER (12X34X1.0) | 2 шт. | — | |
|
| 25 | 62628-42AA0 | WASHER | 2 шт. | — | |
|
| 26 | 09160-12080 | WASHER | 1 шт. | — | |
|
