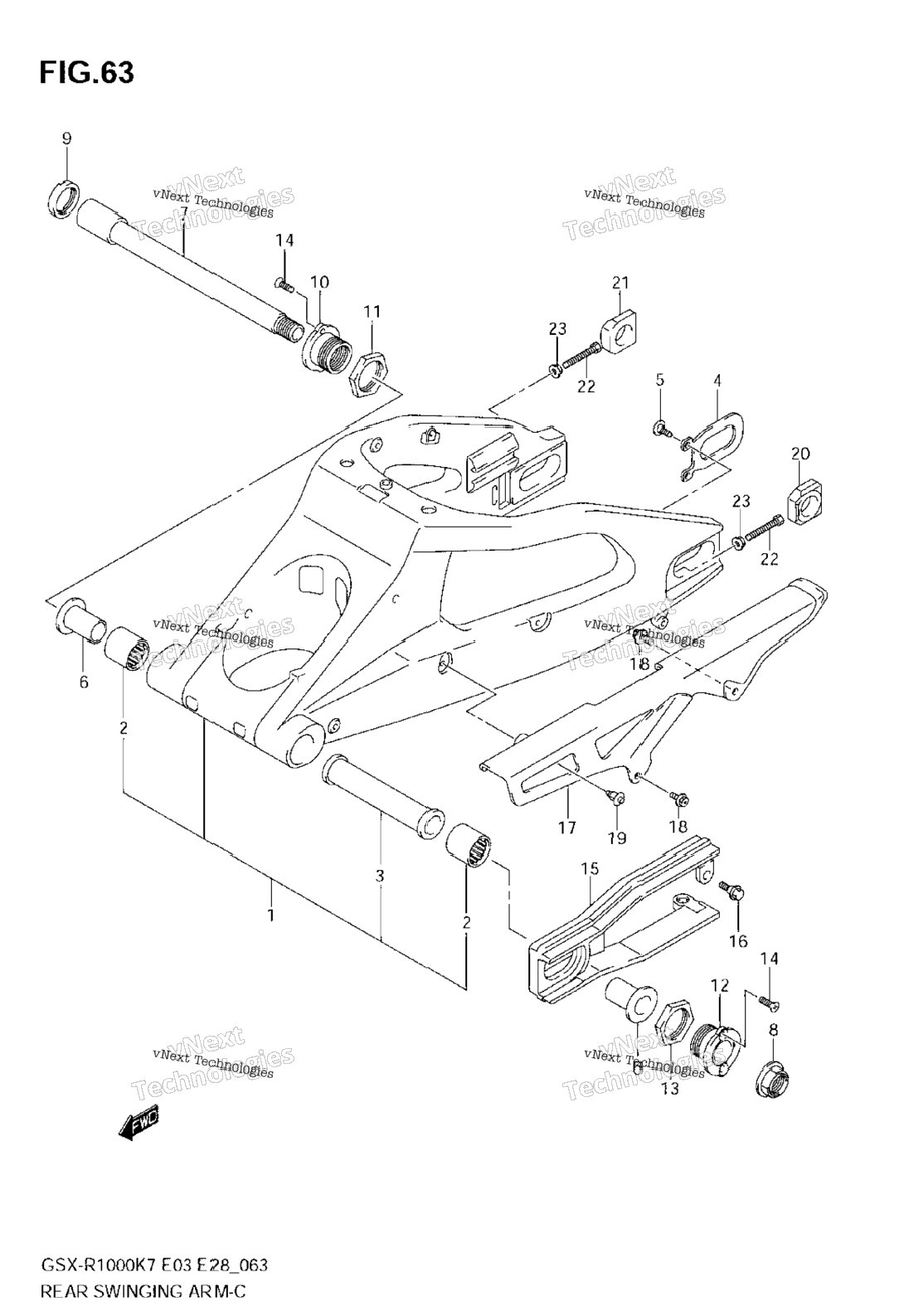

| 1 | 61000-21H00-YAP | SWINGING ARM ASSY, REAR (BLACK) Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 09263-27013 | BEARING, PIVOT | 2 шт. | — | |
|
| 3 | 61281-41G00 | SPACER, CENTER | 1 шт. | — | |
|
| 4 | 61124-41G00 | PLATE,RR SWGARM BRKT | 1 шт. | — | |
|
| 5 | 09125-06073-A05 | SCREW | 1 шт. | — | |
|
| 6 | 61251-41G00 | SPACER, BEARING | 2 шт. | — | |
|
| 7 | 61211-41G00 | SHAFT, PIVOT | 1 шт. | — | |
|
| 8 | 09159-20006 | NUT | 1 шт. | — | |
|
| 9 | 61214-42E00 | NUT, PIVOT | 1 шт. | — | |
|
| 10 | 61212-41G00 | BOSS, RR SWGARM PIVOT, R | 1 шт. | — | |
|
| 11 | 61213-41G00 | NUT, RR SWGARM PIVOT BOSS, R | 1 шт. | — | |
|
| 12 | 61214-41G00 | BOSS, RR SWGARM PIVOT, L | 1 шт. | — | |
|
| 13 | 61215-41G00 | NUT, RR SWGARM PIVOT BOSS, L | 1 шт. | — | |
|
| 14 | 02122-0512B | SCREW, BOSS | 4 шт. | — | |
|
| 15 | 61273-41G00 | BUFFER, CHAIN TOUCH DEFENSE | 1 шт. | — | |
|
| 16 | 09111-06072 | SCREW | 3 шт. | — | |
|
| 17 | 61311-21H00 | CASE, CHAIN NO.1 | 1 шт. | — | |
|
| 18 | 63161-43E00 | BOLT, CHAIN CASE | 2 шт. | — | |
|
| 19 | 09409-08308-5ES | CLIP (7.6X25.7,BLACK) | 1 шт. | — | |
|
| 20 | 61445-40F20 | ADJUSTER, CHAIN RH | 1 шт. | — | |
|
| 21 | 61446-40F10 | ADJUSTER, CHAIN LH | 1 шт. | — | |
|
| 22 | 09100-08305 | BOLT (8X50) | 2 шт. | — | |
|
| 23 | 08316-1008A | NUT | 2 шт. | — | |
|
