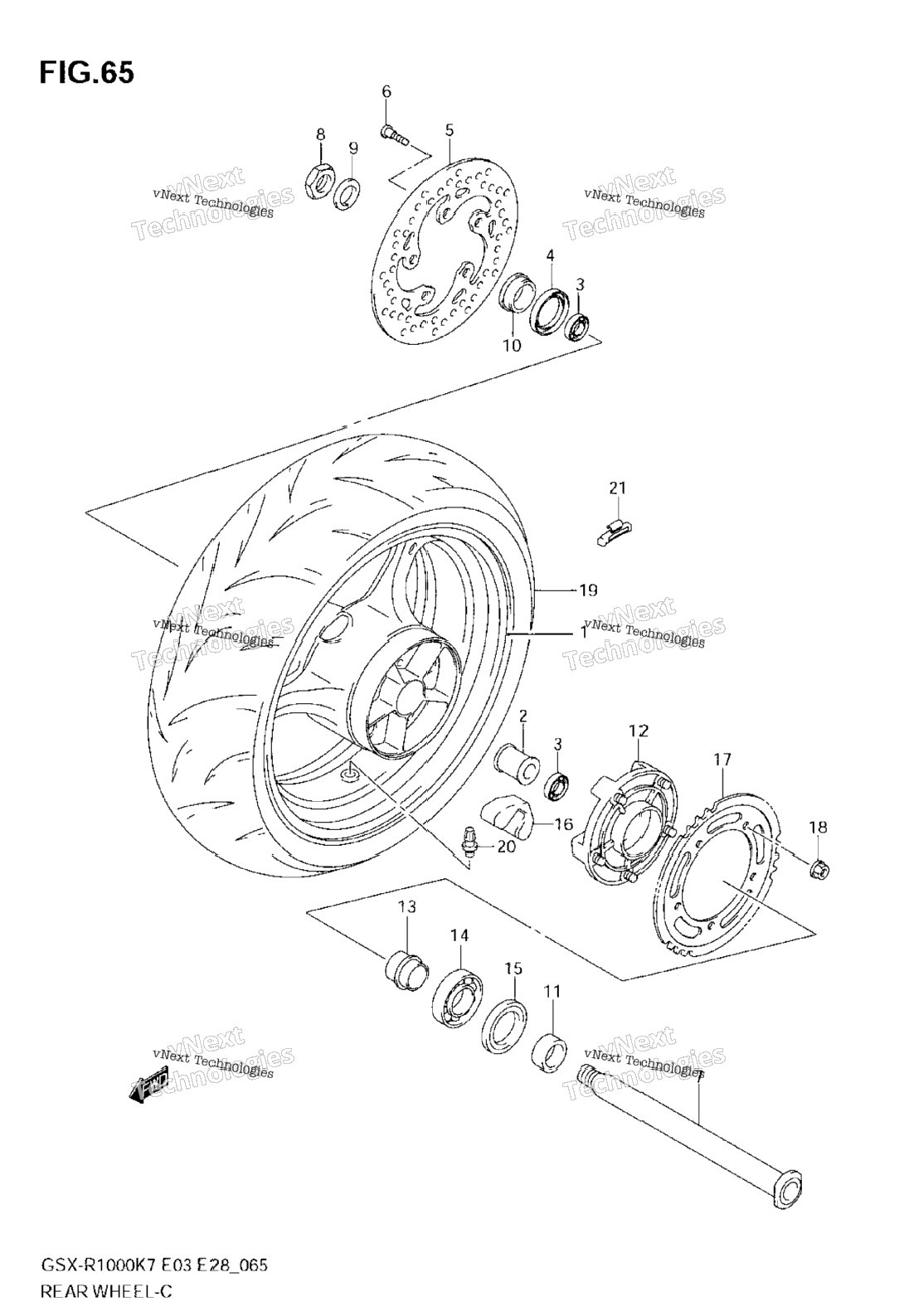

| 1 | 64111-41G00-019 | WHEEL, REAR (17M/CXMT6.00) (BLACK) MODEL K7 MODEL K8 FOR CRU,FGF,FGG | 1 шт. | — | |
|
| 2 | 64111-41G00-YLY | WHEEL, REAR (17M/CXMT6.00) (BLUE) MODEL K8 FOR CWH | 0 шт. | — | |
|
| 3 | 64731-40F10 | SPACER, HUB BEARING | 1 шт. | — | |
|
| 4 | 09262-28043 | BEARING (28X52X12) | 2 шт. | — | |
|
| 5 | 09284-37001 | SEAL, REAR WHEEL BEARING, R | 1 шт. | — | |
|
| 6 | 69211-18G00 | DISC,REAR BRAKE | 1 шт. | — | |
|
| 7 | 09106-08160 | BOLT | 5 шт. | — | |
|
| 8 | 64711-33E20 | AXLE,RR | 1 шт. | — | |
|
| 9 | 09159-25003 | NUT | 1 шт. | — | |
|
| 10 | 09160-25070 | WASHER | 1 шт. | — | |
|
| 11 | 64741-35F00 | SPACER, AXLE RH | 1 шт. | — | |
|
| 12 | 64751-40F00 | SPACER, AXLE LH | 1 шт. | — | |
|
| 13 | 64610-35F30 | DRUM,RR SPROCKET | 1 шт. | — | |
|
| 14 | 64733-35F00 | RETAINER, SPROCKET DRUM | 1 шт. | — | |
|
| 15 | 09262-32007 | BEARING (32X65X17) | 1 шт. | — | |
|
| 16 | 09285-39001 | OIL SEAL (39X65X7) | 1 шт. | — | |
|
| 17 | 64651-35F20 | ABSORBER, HUB SHOCK | 5 шт. | — | |
|
| 18 | 64511-21H00 | SPROCKET, REAR (NT:43) | 1 шт. | — | |
|
| 19 | 08319-3110A | NUT | 5 шт. | — | |
|
| 20 | 65110-21H00 | TIRE, REAR, 190/50ZR17 M/C (73W)(BRIDGESTONE) BT015 R RADIAL G | 0 шт. | — | |
|
| 21 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 22 | 43222-73H20 | BALANCER (10G) | 0 шт. | — | |
|
| 23 | 43224-73H20 | BALANCER (20G) | 0 шт. | — | |
|
| 24 | 43226-73H20 | BALANCER (30G) | 0 шт. | — | |
|
