Under Cowl Cover (Model K8)

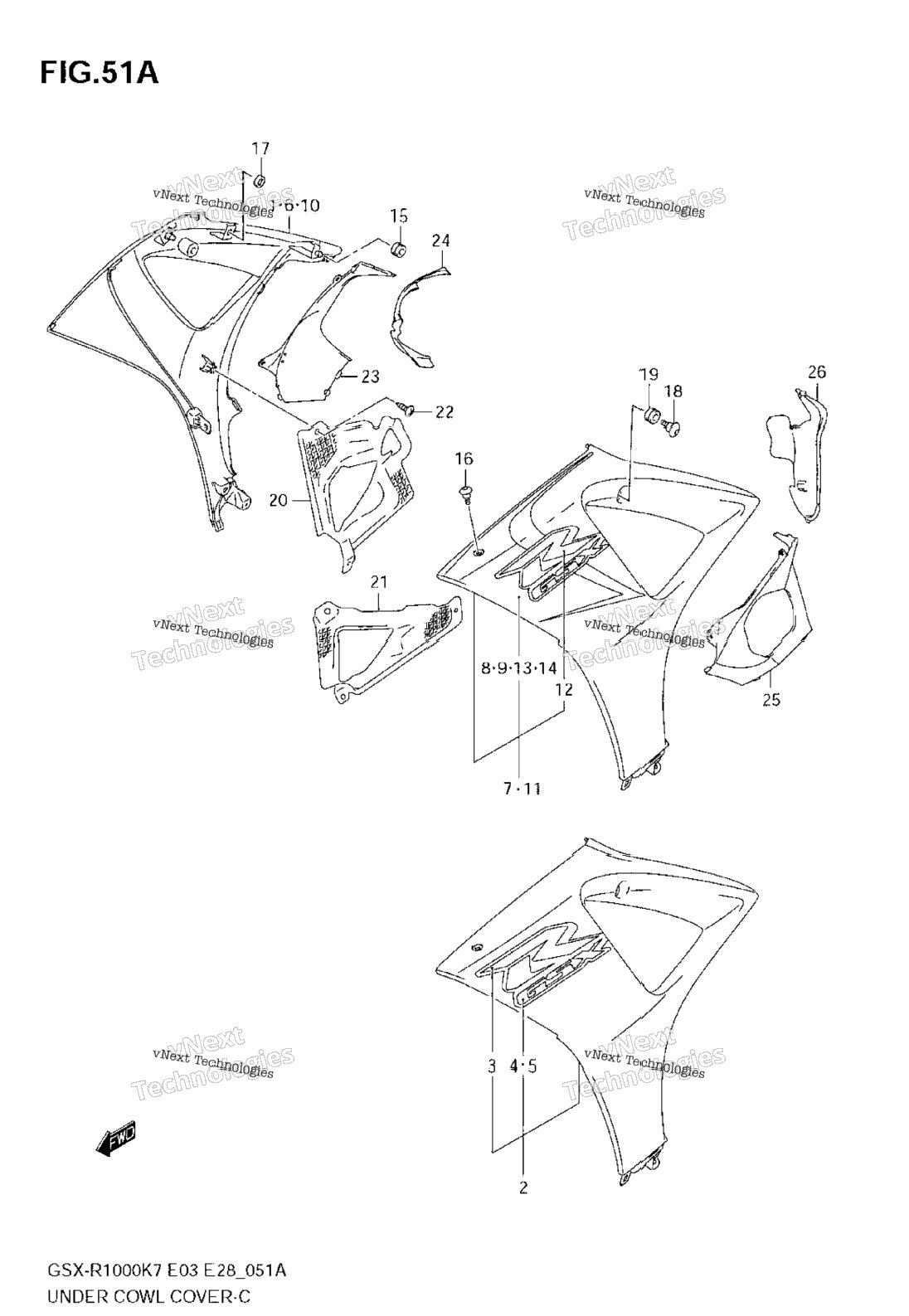

Схема Under Cowl Cover (Model K8)

№	Артикул	Название	Кол-во	Наличие и цены	Действия

1	`94490-21H40-YKV`	COVER, UNDER, RH (BLACK) FOR CRU	1 шт.	—

2	`94440-21H40-YKV`	COVER, UNDER, LH (BLACK) FOR CRU; Includes Item(s) 3 - 5	1 шт.	—

3	`68681-21HA0`	EMBLEM, "R"	2 шт.	—

4	`68681-21H10-LB4`	EMBLEM, "GSX", RH	1 шт.	—

5	`68691-21H10-LB4`	EMBLEM, "GSX", LH	1 шт.	—

6	`94490-21H30-YBD`	COVER, UNDER, RH (BLUE) FOR CWH	1 шт.	—

7	`94440-21H30-YBD`	COVER, UNDER, LH (BLUE) FOR CWH; Includes Item(s) 8 - 9	1 шт.	—

8	`68685-21H30-FJC`	TAPE, UNDER SIDE, RH	0 шт.	—

9	`68695-21H30-FJC`	TAPE, UNDER SIDE, LH	0 шт.	—

10	`94490-21H50-YBD`	COVER, UNDER, RH (BLUE) FOR FGF	1 шт.	—

11	`94490-21H50-YHF`	COVER, UNDER, RH (GRAY) FOR FGG	1 шт.	—

12	`94440-21H50-YBD`	COVER, UNDER, RH (BLUE) FOR FGF	1 шт.	—

13	`94440-21H50-YHF`	COVER, UNDER, RH (GRAY) FOR FGG; Includes Item(s) 12 - 14	1 шт.	—

14	`68681-21HA0`	EMBLEM, "R"	2 шт.	—

15	`68685-21H30-FJD`	TAPE, UNDER SIDE, RH FOR YBD	1 шт.	—

16	`68685-21H30-FJE`	TAPE, UNDER SIDE, RH FOR YHF	1 шт.	—

17	`68695-21H30-FJD`	TAPE, UNDER SIDE, LH FOR YBD	1 шт.	—

18	`68695-21H30-FJE`	TAPE, UNDER SIDE, LH FOR YHF	0 шт.	—

19	`09320-08028`	CUSHION (8X26X7)	4 шт.	—

20	`09139-05064`	SCREW	2 шт.	—

21	`09321-10018`	CUSHION	2 шт.	—

22	`09139-06126`	SCREW	2 шт.	—

23	`09320-09016`	CUSHION (9X18X9.5)	2 шт.	—

24	`94478-21H00`	SHIELD, HEAT RH	1 шт.	—

25	`94488-21H00`	SHIELD, HEAT LH	1 шт.	—

26	`03541-1516A`	SCREW	4 шт.	—

27	`94474-21H00-019`	COVER, LOWER RH (BLACK) FOR CRU	1 шт.	—

28	`94474-21H00-YMD`	COVER, LOWER RH (SILVER) FOR CWH,FGF	1 шт.	—

29	`94474-21H00-YMG`	COVER, LOWER RH (GOLD) FOR FGG	1 шт.	—

30	`94477-21H00`	PROTECTOR, RH	1 шт.	—

31	`94484-21H00-019`	COVER, LOWER LH (BLACK) FOR CRU	1 шт.	—

32	`94484-21H00-YMD`	COVER, LOWER LH (SILVER) FOR CWH,FGF	1 шт.	—

33	`94484-21H00-YMG`	COVER, LOWER LH (GOLD) FOR FGG	1 шт.	—

34	`94487-21H00`	PROTECTOR, LH	1 шт.	—
