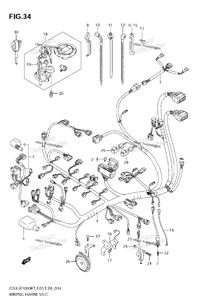

| 1 | 36610-21H30 | HARNESS, WIRING NO.1 Includes Item(s) 2 - 4 | 1 шт. | — | |
|
| 2 | 09481-10501 | FUSE (10A) | 4 шт. | — | |
|
| 3 | 09481-15501 | FUSE (15A) | 2 шт. | — | |
|
| 4 | 36618-21H00 | COVER | 1 шт. | — | |
|
| 5 | 36620-21H00 | HARNESS, WIRING NO.2 Includes Item(s) 6 | 1 шт. | — | |
|
| 6 | 36618-35F00 | .COVER,SPEEDOMETER COUPLER | 1 шт. | — | |
|
| 7 | 36855-21H00 | WIRE, REAR COMB | 1 шт. | — | |
|
| 8 | 09403-06322 | GUIDE | 1 шт. | — | |
|
| 9 | 09404-06429 | CLAMP (L:45) | 5 шт. | — | |
|
| 10 | 09407-14403 | CLAMP (L:125) | 1 шт. | — | |
|
| 11 | 09407-18402 | CLAMP (L:165) | 1 шт. | — | |
|
| 12 | 09407-17403 | CLAMP (L:170) | 1 шт. | — | |
|
| 13 | 09407-14407 | CLAMP (L:145) | 1 шт. | — | |
|
| 14 | 01547-0612A | BOLT | 1 шт. | — | |
|
| 15 | 36851-35F00 | WIRE, OIL PRESSURE SWITCH LEAD | 1 шт. | — | |
|
| 16 | 09404-06429 | CLAMP, OIL PRESS LEAD (L:45) | 1 шт. | — | |
|
| 17 | 36744-21H00 | BRACKET, FUSE | 0 шт. | — | |
|
| 18 | 01550-0612A | BOLT, BRACKET | 2 шт. | — | |
|
| 19 | 37101-40820 | LOCK SET | 1 шт. | — | |
|
| 20 | 37101-40840 | LOCK SET E33; Includes Item(s) 19 | 1 шт. | — | |
|
| 21 | 37100-41G10 | LOCK ASSY, STEERING | 1 шт. | — | |
|
| 22 | 09139-08016 | SCREW, STEERING LOCK (8X20) | 2 шт. | — | |
|
| 23 | 37740-45D00 | SWITCH ASSY, STOP LAMP | 1 шт. | — | |
|
| 24 | 09443-06087 | SPRING, BRAKE LAMP SWITCH | 1 шт. | — | |
|
| 25 | 37840-21H00 | SWITCH ASSY, SIDE STAND | 1 шт. | — | |
|
| 26 | 09103-08357 | .BOLT (8X35) | 1 шт. | — | |
|
| 27 | 08316-1008B | .NUT | 1 шт. | — | |
|
| 28 | 38500-21H00 | HORN ASSY | 1 шт. | — | |
|
| 29 | 09139-06148 | BOLT, HORN (6X20) | 2 шт. | — | |
|
| 30 | 38740-24X50 | RELAY ASSY, FUEL PUMP | 1 шт. | — | |
|
| 31 | 38740-24X50 | RELAY ASSY, FAN MOTOR | 1 шт. | — | |
|
| 32 | 37146-41G10 | KEY, BLANK OPT | 1 шт. | — | |
|
