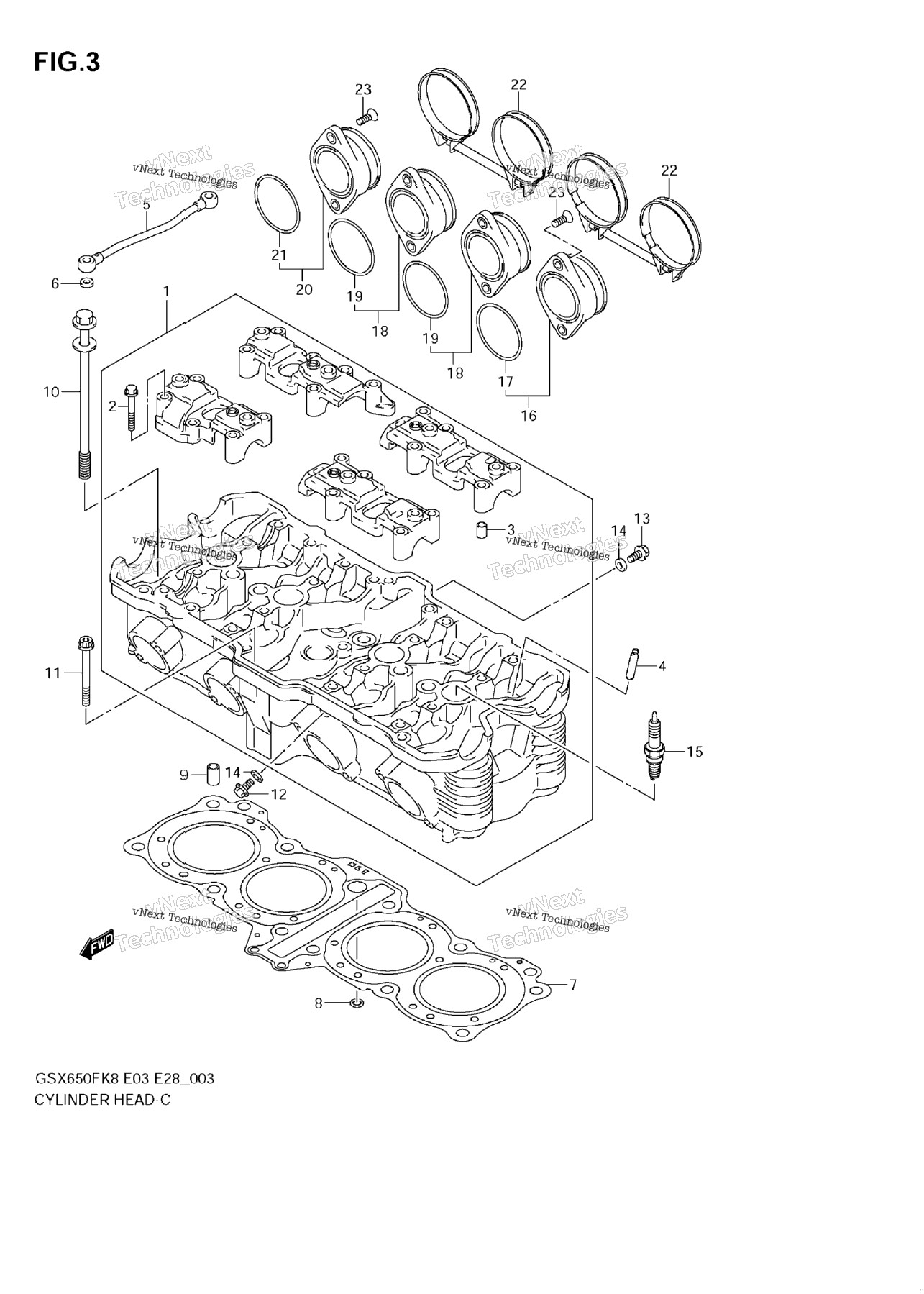

| 1 | 11100-17H00 | HEAD ASSY, CYLINDER Includes Item(s) 2 - 3 | 0 шт. | — | |
|
| 2 | 09103-06293 | BOLT | 21 шт. | — | |
|
| 3 | 09206-08001 | PIN | 8 шт. | — | |
|
| 4 | 11115-17E70 | GUIDE, VALVE (OS 0.3) OPT | 0 шт. | — | |
|
| 5 | 11131-18H00 | PIPE, OIL | 0 шт. | — | |
|
| 6 | 08322-0106B | WASHER | 2 шт. | — | |
|
| 7 | 11141-17H01 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 8 | 11143-32F00 | O RING | 1 шт. | — | |
|
| 9 | 04211-11169 | .PIN | 2 шт. | — | |
|
| 10 | 11117-18H00 | BOLT | 0 шт. | — | |
|
| 11 | 07120-0665B | BOLT | 2 шт. | — | |
|
| 12 | 01550-0612A | BOLT, OIL GALLERY | 1 шт. | — | |
|
| 13 | 07120-0612B | BOLT, OIL GALLERY | 1 шт. | — | |
|
| 14 | 09168-06023 | GASKET | 2 шт. | — | |
|
| 15 | 09482-00458 | PLUG SPARK (CR9E) OPT | 4 шт. | — | |
|
| 15 | 09482-00515 | SPARK PLUG (DENSO,U22ESR-N) OPT | 4 шт. | — | |
|
| 15 | 09482-00457 | SPARK PLUG (DENSO,U24ESR-N) | 4 шт. | — | |
|
| 15 | 09482-00459 | SPARK PLUG (DENSO,U27ESR-N) OPT | 4 шт. | — | |
|
| 15 | 09482-00516 | SPARK PLUG (NGK,CR7E) OPT | 4 шт. | — | |
|
| 15 | 09482-00456 | SPARK PLUG (NGK,CR8E) | 4 шт. | — | |
|
| 16 | 13101-17H00 | PIPE, INTAKE NO.1 Includes Item(s) 17 | 1 шт. | — | |
|
| 18 | 13102-17H00 | PIPE, INTAKE NO.2 Includes Item(s) 19 | 0 шт. | — | |
|
| 20 | 13104-17H00 | PIPE, INTAKE NO.4 Includes Item(s) 21 | 0 шт. | — | |
|
| 21 | 09280-42003 | O RING (D:2.40,ID:41.7) | 1 шт. | — | |
|
| 21 | 09280-42003 | O RING (D:2.40,ID:41.7) | 1 шт. | — | |
|
| 21 | 09280-42003 | O RING (D:2.40,ID:41.7) | 2 шт. | — | |
|
| 22 | 13170-18H10 | CLAMP, INTAKE PIPE | 2 шт. | — | |
|
| 23 | 02122-0616B | SCREW | 8 шт. | — | |
|
