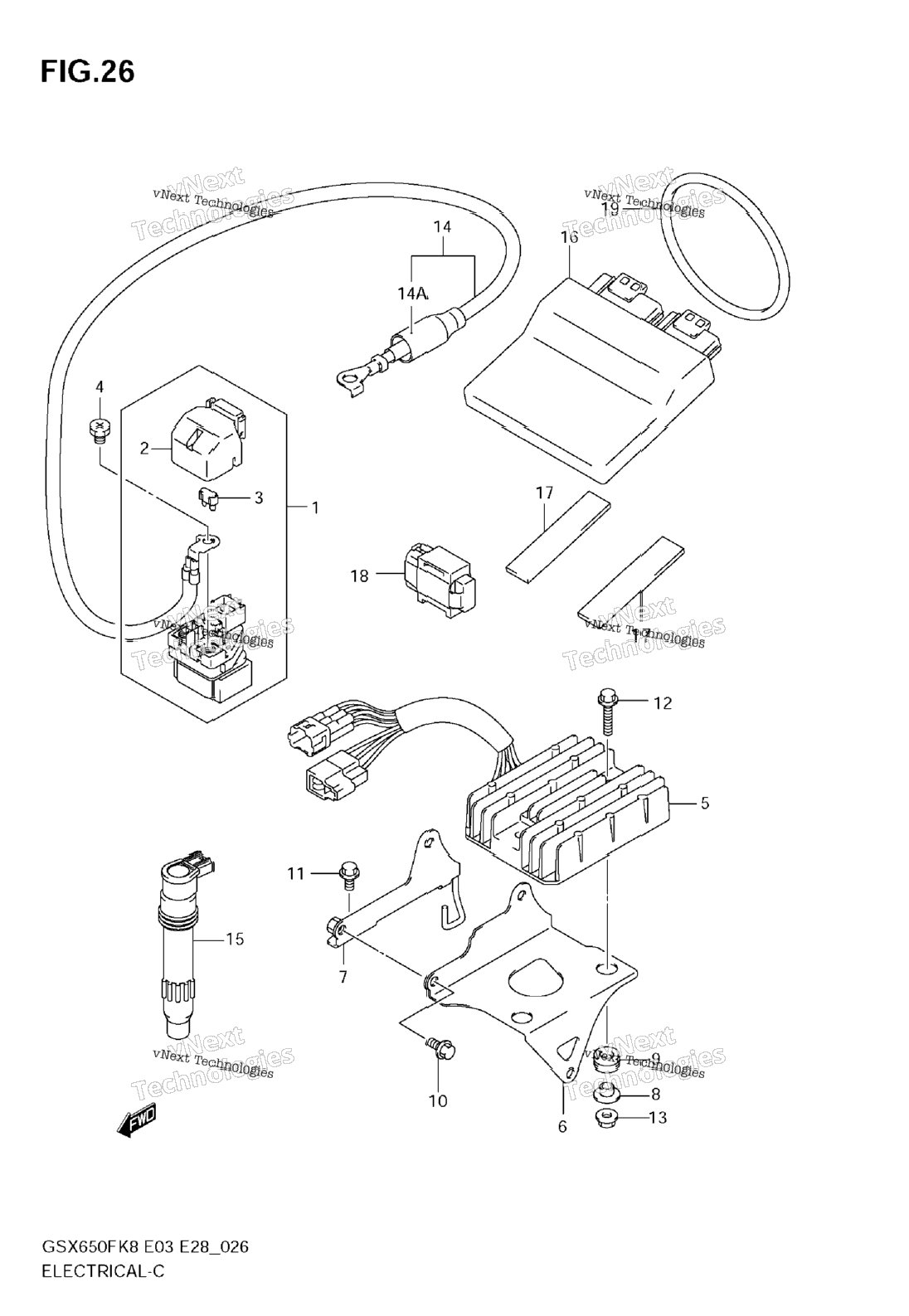

| 1 | 31800-38G10 | RELAY ASSY,STARTING MOTOR Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 31861-38G00 | COVER | 1 шт. | — | |
|
| 3 | 09481-30501 | FUSE (30A) | 2 шт. | — | |
|
| 4 | 09128-06013 | SCREW (6X8) | 2 шт. | — | |
|
| 5 | 32800-18H00 | RECTIFIER ASSY | 1 шт. | — | |
|
| 6 | 32830-18H10 | BRACKET, RECT NO.1 | 1 шт. | — | |
|
| 7 | 32830-18H20 | BRACKET, RECT NO.2 | 0 шт. | — | |
|
| 8 | 09180-06325 | SPACER, RECT 6.2X8.4X6.9 | 2 шт. | — | |
|
| 9 | 09320-08066 | .CUSHION (8.4X18X6) | 2 шт. | — | |
|
| 10 | 01547-0612A | BOLT, RECT BRKT NO.1 | 3 шт. | — | |
|
| 11 | 01547-0612A | BOLT, RECT BRKT NO.2 | 2 шт. | — | |
|
| 12 | 01547-0625A | BOLT RECT | 2 шт. | — | |
|
| 13 | 08316-1006B | NUT, RECT BRKT | 2 шт. | — | |
|
| 14 | 33810-17H00 | WIRE, STARTER MOTOR LEAD Includes Item(s) 14A | 1 шт. | — | |
|
| 15 | 33624-18H00 | CAP, STARTER MOTOR | 0 шт. | — | |
|
| 16 | 33410-35F10 | COIL ASSY, IGNITION | 4 шт. | — | |
|
| 17 | 32920-17H50 | CONTROL UNIT, FI | 0 шт. | — | |
|
| 18 | 32920-17H60 | CONTROL UNIT, FI E33 | 0 шт. | — | |
|
| 19 | 33652-07D00 | CUSHION, FI (80X80X2) CUT AS REQUIRED (20X80) | 2 шт. | — | |
|
| 20 | 33960-06G10 | SENSOR ASSY,FUEL CUT | 1 шт. | — | |
|
| 21 | 09280-70004 | O-RING (D:3.53,ID:69.44) D:3.53,ID:69.44 | 1 шт. | — | |
|
