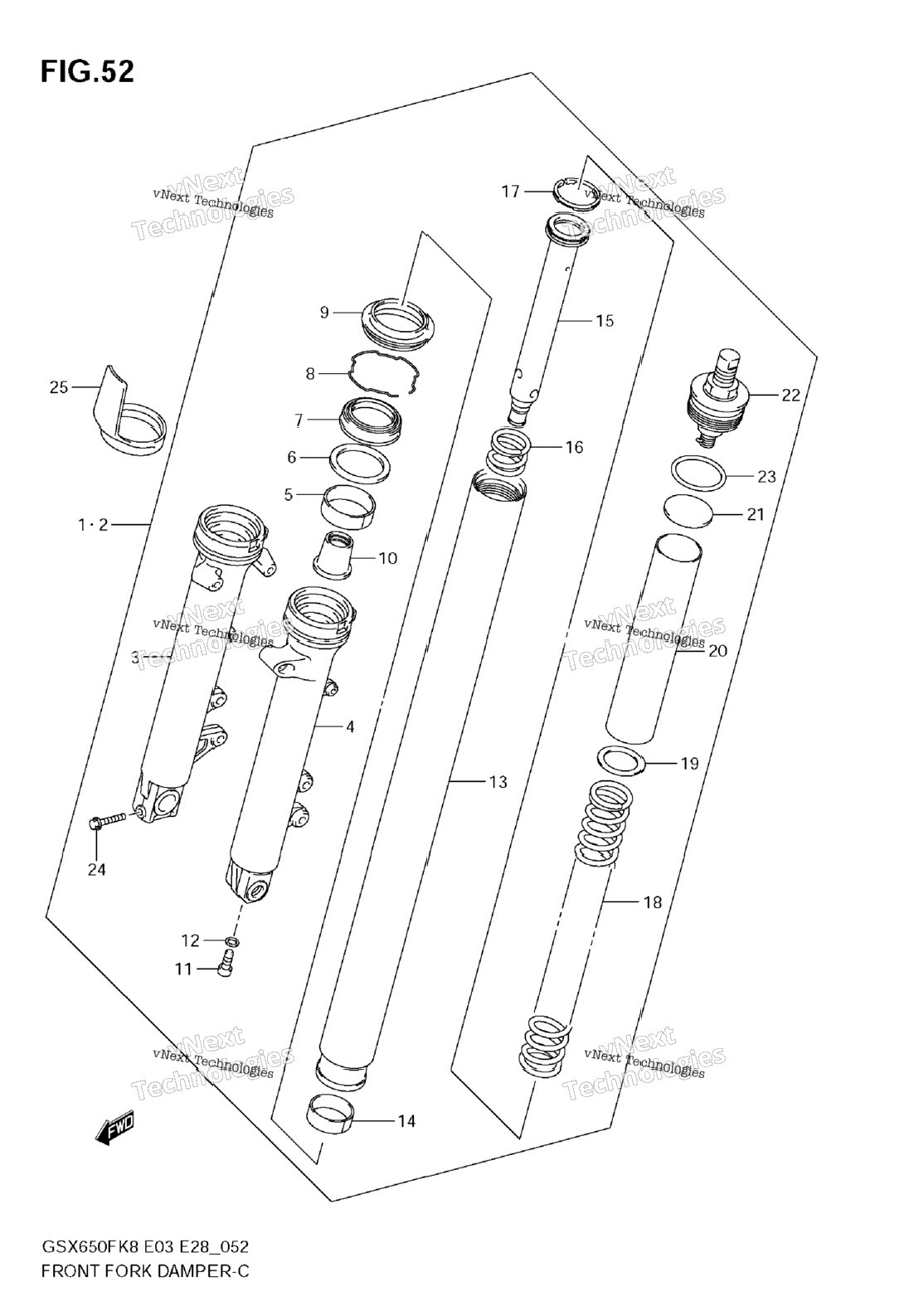

| 1 | 51103-17H10 | DAMPER ASSY, FRONT FORK RH | 0 шт. | — | |
|
| 2 | 51104-17H10 | DAMPER ASSY, FRONT FORK LH Includes Item(s) 3 - 23 | 1 шт. | — | |
|
| 3 | 51130-17H00 | TUBE, OUTER RH | 0 шт. | — | |
|
| 4 | 51140-17H00 | TUBE, OUTER LH | 0 шт. | — | |
|
| 5 | 51167-26E10 | METAL, SLIDE | 2 шт. | — | |
|
| 6 | 51158-05A00 | WASHER | 2 шт. | — | |
|
| 7 | 51153-10G50 | SEAL, OIL | 2 шт. | — | |
|
| 8 | 51156-49440 | RING, STOPPER | 2 шт. | — | |
|
| 9 | 51173-14F00 | SEAL, DUST | 2 шт. | — | |
|
| 10 | 51195-33D10 | PIECE, OIL LOCK | 2 шт. | — | |
|
| 11 | 51147-16510 | BOLT | 2 шт. | — | |
|
| 12 | 51148-41310 | WASHER | 2 шт. | — | |
|
| 13 | 51110-17H00 | TUBE, INNER | 0 шт. | — | |
|
| 14 | 51121-23EA0 | BUSH, SLIDE | 2 шт. | — | |
|
| 15 | 51146-17H20 | CYLINDER | 0 шт. | — | |
|
| 16 | 51177-06C00 | SPRING | 2 шт. | — | |
|
| 17 | 51196-31F00 | RING, PISTON | 2 шт. | — | |
|
| 18 | 51171-17H20 | SPRING, FRONT | 2 шт. | — | |
|
| 19 | 51356-17H00 | SEAT, SPRING LOWER | 0 шт. | — | |
|
| 20 | 51176-12D10 | COLLAR, SPRING | 0 шт. | — | |
|
| 21 | 51192-27A00 | O RING | 2 шт. | — | |
|
| 22 | 51351-31FA0 | CAP | 2 шт. | — | |
|
| 23 | 09280-32001 | O RING | 2 шт. | — | |
|
| 24 | 51451-10G00 | BOLT | 1 шт. | — | |
|
| 25 | 51201-31F00 | PROTECTOR | 2 шт. | — | |
|
