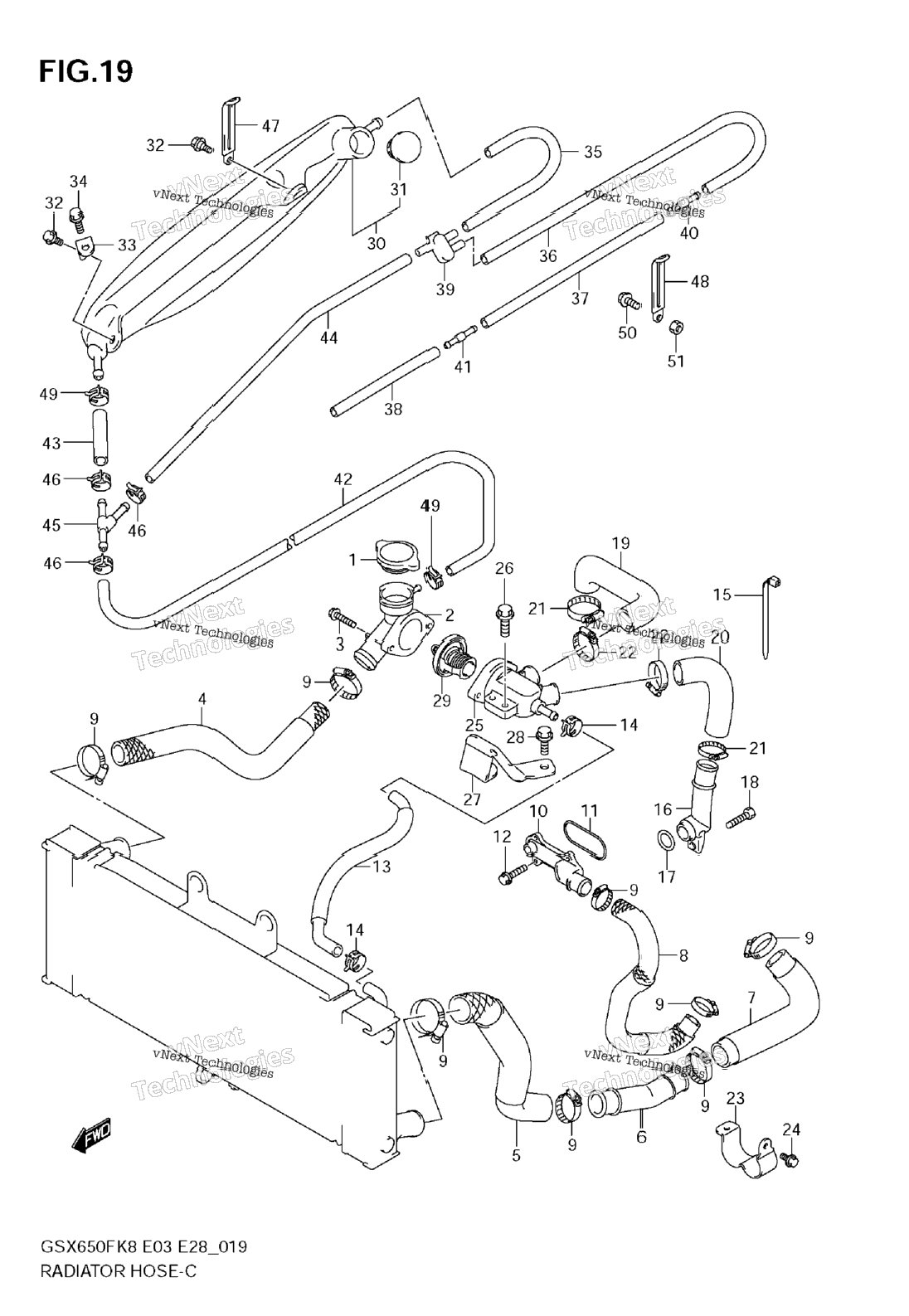

| 1 | 17730-14G00 | CAP, RADIATOR (1.1) | 1 шт. | — | |
|
| 2 | 17791-18H00 | CONDUCTION | 1 шт. | — | |
|
| 3 | 01550-0620A | BOLT | 2 шт. | — | |
|
| 4 | 17851-18H00 | HOSE, RADIATOR INLET | 1 шт. | — | |
|
| 5 | 17852-18H00 | HOSE, RADIATOR OUTLET | 1 шт. | — | |
|
| 6 | 17890-17H00 | PIPE, RADIATOR OUTLET | 0 шт. | — | |
|
| 7 | 17853-18H00 | HOSE, WATER PUMP INLET | 1 шт. | — | |
|
| 8 | 17854-18H00 | HOSE, WATER PUMP OUTLET | 1 шт. | — | |
|
| 9 | 09402-38512 | CLAMP | 8 шт. | — | |
|
| 10 | 17861-17H00 | CONNECTOR, CYLINDER INLET | 0 шт. | — | |
|
| 11 | 17863-18H00 | O RING | 1 шт. | — | |
|
| 12 | 01547-0620A | BOLT | 4 шт. | — | |
|
| 13 | 17856-18H00 | HOSE, WATER BYPASS | 0 шт. | — | |
|
| 14 | 09401-12409 | CLIP | 2 шт. | — | |
|
| 15 | 09407-18402 | CLAMP | 1 шт. | — | |
|
| 16 | 17880-18H00 | PIPE, CYLINDER OUTLET | 0 шт. | — | |
|
| 17 | 09280-18009 | O RING | 2 шт. | — | |
|
| 18 | 07130-0612A | BOLT | 2 шт. | — | |
|
| 19 | 17857-18H00 | HOSE, CYLINDER OUTLET RH | 1 шт. | — | |
|
| 20 | 17858-18H00 | HOSE, CYLINDER OUTLET LH | 1 шт. | — | |
|
| 21 | 09402-28513 | CLAMP | 2 шт. | — | |
|
| 22 | 09402-32512 | CLAMP | 2 шт. | — | |
|
| 23 | 17859-18H00 | PLATE, WATER HOSE CLAMP | 1 шт. | — | |
|
| 24 | 01547-0612A | BOLT | 2 шт. | — | |
|
| 25 | 17662-18H00 | CONNECTOR | 0 шт. | — | |
|
| 26 | 01550-0620A | BOLT | 2 шт. | — | |
|
| 27 | 17669-18H00 | BRACKET | 0 шт. | — | |
|
| 28 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 29 | 17670-76G00 | THERMOSTAT,WTR (82<-C) | 1 шт. | — | |
|
| 30 | 17910-18H00 | TANK ASSY, RESERVOIR Includes Item(s) 31 | 1 шт. | — | |
|
| 31 | 17931-02FA0 | .CAP, RESERVOIR TANK | 1 шт. | — | |
|
| 32 | 09111-06085 | BOLT | 2 шт. | — | |
|
| 33 | 17920-18H00 | BRACKET, RESERVER TANK | 1 шт. | — | |
|
| 34 | 01550-0620A | BOLT | 1 шт. | — | |
|
| 35 | 17982-18H00 | HOSE, OVERFLOW | 0 шт. | — | |
|
| 36 | 17983-18H00 | HOSE, OVERFLOW NO.2 | 0 шт. | — | |
|
| 37 | 17984-18H00 | HOSE, OVERFLOW NO.3 | 0 шт. | — | |
|
| 38 | 09359-50901-980 | HOSE, OVERFLOW NO.4 L:980!260 | 1 шт. | — | |
|
| 39 | 13471-18H00 | JOINT, OVERFLOW HOSE | 1 шт. | — | |
|
| 40 | 09367-04011 | JOINT, OVERFLOW HOSE NO.2 | 0 шт. | — | |
|
| 41 | 09367-06009 | JOINT, OVERFLOW HOSE NO.3 | 0 шт. | — | |
|
| 42 | 09352-50901-00B | HOSE, TANK INLET L:2000!730 | 1 шт. | — | |
|
| 43 | 09352-50901-600 | HOSE, TANK INLET NO.2 L:600!60 | 1 шт. | — | |
|
| 44 | 09359-35751-600 | HOSE, TANK INLET NO.3 L:600!230 | 1 шт. | — | |
|
| 45 | 09367-06007 | JOINT | 1 шт. | — | |
|
| 46 | 09401-08410 | .CLIP | 3 шт. | — | |
|
| 47 | 09404-08205 | CLAMP | 1 шт. | — | |
|
| 48 | 09404-06429 | CLAMP | 1 шт. | — | |
|
| 49 | 09401-08411 | CLIP | 2 шт. | — | |
|
| 50 | 01550-0612A | BOLT | 1 шт. | — | |
|
| 51 | 08316-1006A | NUT | 1 шт. | — | |
|
