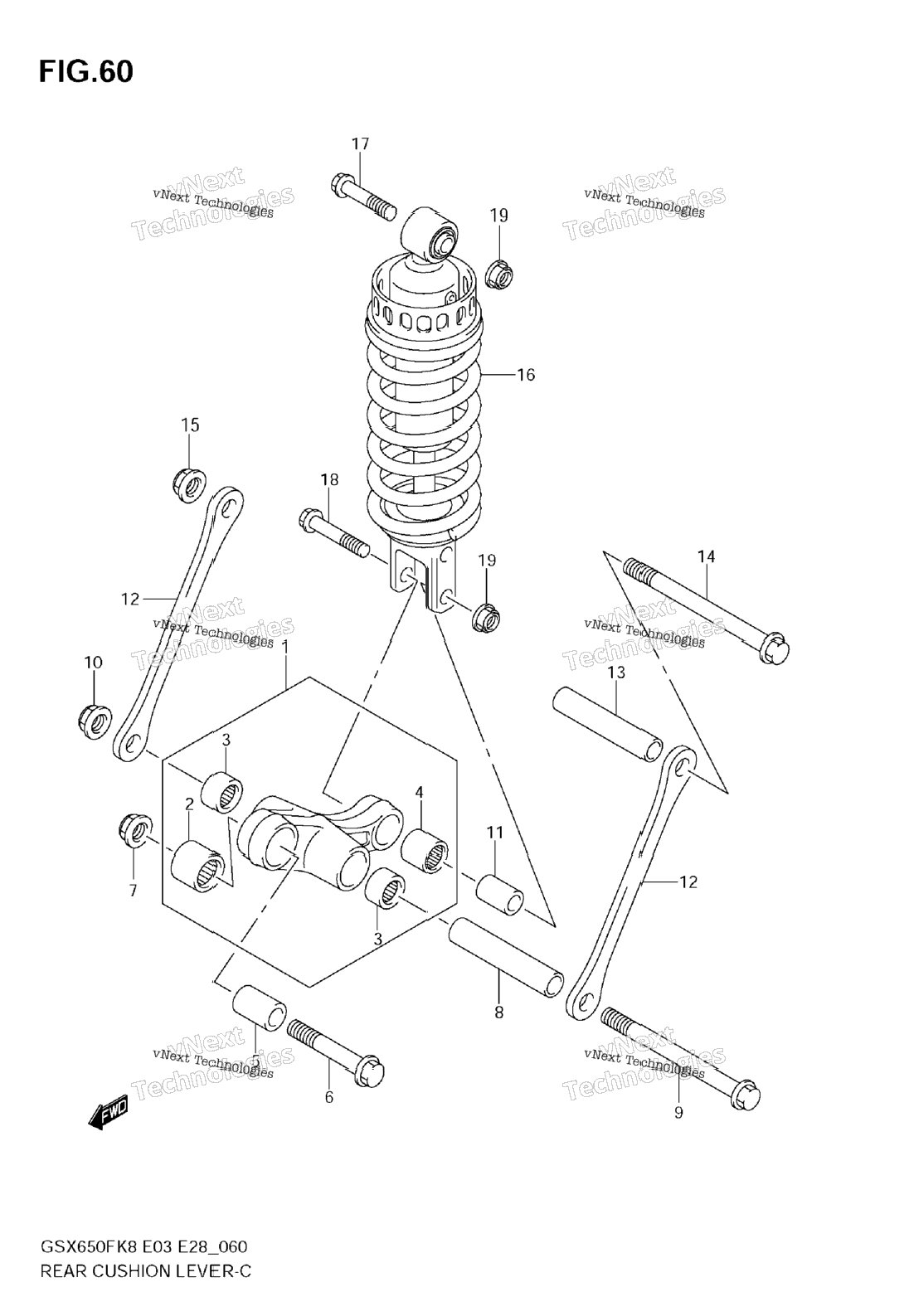

| 1 | 62600-32850 | LEVER SET, REAR CUSHION Includes Item(s) 2 - 4 | 0 шт. | — | |
|
| 2 | 09263-20064 | BEARING, FRONT (20X27X26) | 1 шт. | — | |
|
| 3 | 09263-17037 | BEARING, CENTER (17X24X25) | 2 шт. | — | |
|
| 4 | 09263-17034 | BEARING, REAR (17X24X26) | 1 шт. | — | |
|
| 5 | 62684-01D00 | SPACER, FRONT (12X20X30) | 1 шт. | — | |
|
| 6 | 62668-42A02 | BOLT (12X62) | 1 шт. | — | |
|
| 7 | 09159-12056 | NUT | 1 шт. | — | |
|
| 8 | 62626-33D00 | SPACER,RR CUSHION LEVER CTR ( | 1 шт. | — | |
|
| 9 | 62621-33D10 | BOLT, CENTER | 1 шт. | — | |
|
| 10 | 09159-12056 | NUT | 1 шт. | — | |
|
| 11 | 62684-40A10 | SPACER,RR CUSHION LEVER (10X1 | 1 шт. | — | |
|
| 12 | 62641-31F00 | ROD, REAR CUSHION | 2 шт. | — | |
|
| 13 | 62626-33D00 | SPACER,RR CUSHION LEVER CTR ( | 1 шт. | — | |
|
| 14 | 62621-33D10 | BOLT, ROD | 1 шт. | — | |
|
| 15 | 09159-12056 | NUT | 1 шт. | — | |
|
| 16 | 62100-17H10 | ABSORBER ASSY, REAR SHOCK E28 | 0 шт. | — | |
|
| 17 | 62100-17H20 | ABSORBER ASSY, REAR SHOCK E3,E33 | 0 шт. | — | |
|
| 18 | 09103-10213 | BOLT, UPPER | 1 шт. | — | |
|
| 19 | 09103-10143 | BOLT, LOWER | 1 шт. | — | |
|
| 20 | 09159-10115 | NUT | 2 шт. | — | |
|
