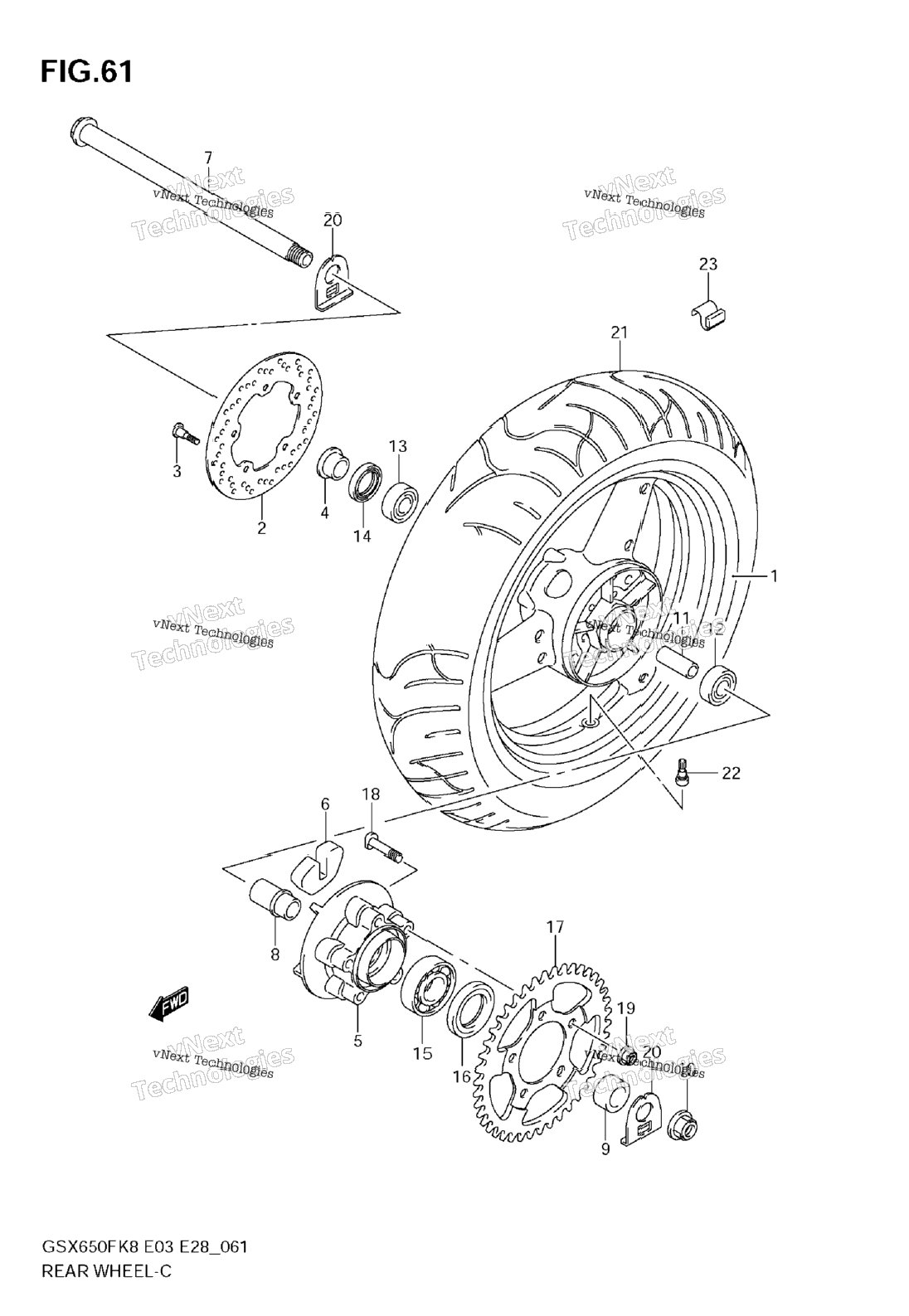

| 1 | 64111-08F70-019 | WHEEL, REAR (17M/CXMT5.00) (BLACK) | 1 шт. | — | |
|
| 2 | 69211-38G00 | DISC,REAR BRAKE | 1 шт. | — | |
|
| 3 | 09106-08148 | BOLT | 5 шт. | — | |
|
| 4 | 64741-22D00 | SPACER,REAR AXLE RH | 1 шт. | — | |
|
| 5 | 64611-33C00 | DRUM, SPROCKET MOUNTING | 0 шт. | — | |
|
| 6 | 64651-27A01 | ABSORBER,SHOCK REAR HUB | 5 шт. | — | |
|
| 7 | 64711-17H00 | AXLE, REAR | 1 шт. | — | |
|
| 8 | 64733-27A00 | RETAINER,REAR HUB BEARING | 1 шт. | — | |
|
| 9 | 64751-26E00 | SPACER, REAR AXLE LH | 1 шт. | — | |
|
| 10 | 09159-20013 | NUT | 1 шт. | — | |
|
| 11 | 09180-20062 | SPACER (20.5X28X88) | 1 шт. | — | |
|
| 12 | 09262-20042 | BEARING (20X47X14)LH | 1 шт. | — | |
|
| 13 | 08123-62047 | BEARING RH | 2 шт. | — | |
|
| 14 | 09285-28001 | SEAL, RH (28X47X7) | 1 шт. | — | |
|
| 15 | 09262-25073 | BEARING (25X62X17) | 1 шт. | — | |
|
| 16 | 09285-35001 | OIL SEAL (35X62X8) | 1 шт. | — | |
|
| 17 | 64511-33C11 | SPROCKET, REAR (NT:48) | 1 шт. | — | |
|
| 18 | 09119-10043 | BOLT (10X47) | 5 шт. | — | |
|
| 19 | 08319-3110A | NUT | 5 шт. | — | |
|
| 20 | 61445-26E00 | WASHER, CHAIN ADJUSTER | 2 шт. | — | |
|
| 21 | 65110-17H00 | TIRE, REAR, 160/160 ZR17M/C (69W)(BRIDGESTONE) BT020 R RADIAL G | 0 шт. | — | |
|
| 22 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 23 | 55411-22H00 | BALANCER,WHEEL (10G) | 1 шт. | — | |
|
| 24 | 55412-22H00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
|
| 25 | 55413-22H00 | BALANCER,WHEEL (30G) | 1 шт. | — | |
|
