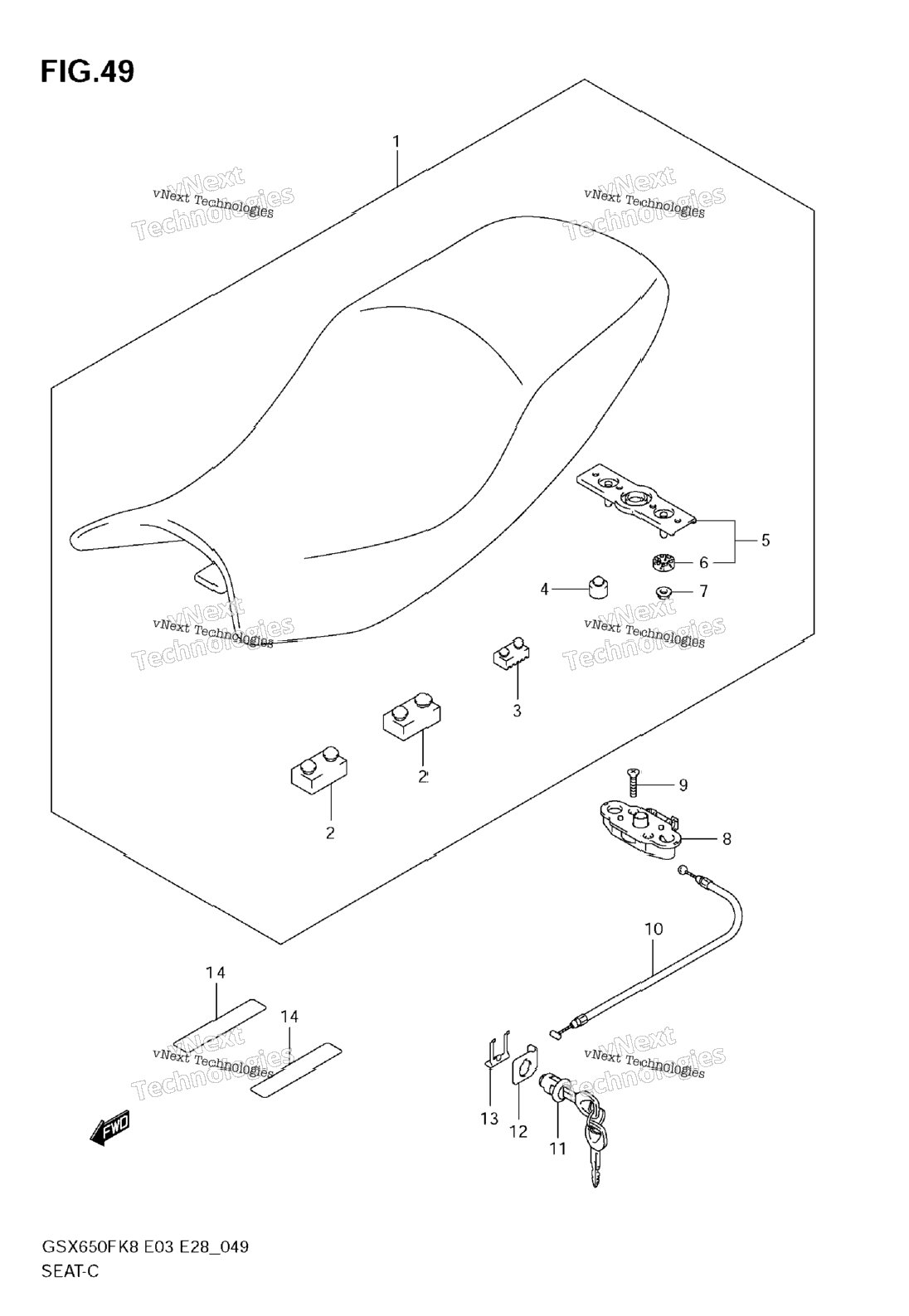

| 1 | 45100-17H00-P3H | SEAT ASSY Includes Item(s) 2 - 7 | 1 шт. | — | |
|
| 2 | 45149-17H00 | CUSHION | 4 шт. | — | |
|
| 3 | 45149-42F00 | CUSHION | 2 шт. | — | |
|
| 4 | 09321-10011 | CUSHION | 2 шт. | — | |
|
| 5 | 45290-42F01 | STRIKER | 1 шт. | — | |
|
| 6 | 45213-42F00 | CUSHION | 2 шт. | — | |
|
| 7 | 08319-3106A | NUT | 2 шт. | — | |
|
| 8 | 45220-20A01 | BRACKET, SEAT SUPPORT | 1 шт. | — | |
|
| 9 | 02122-0630B | SCREW | 2 шт. | — | |
|
| 10 | 45280-33400 | CABLE, SEAT LOCK | 0 шт. | — | |
|
| 11 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 12 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
| 13 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 14 | 45414-38G00 | TAPE,SEAT LOWER COVER | 0 шт. | — | |
|
