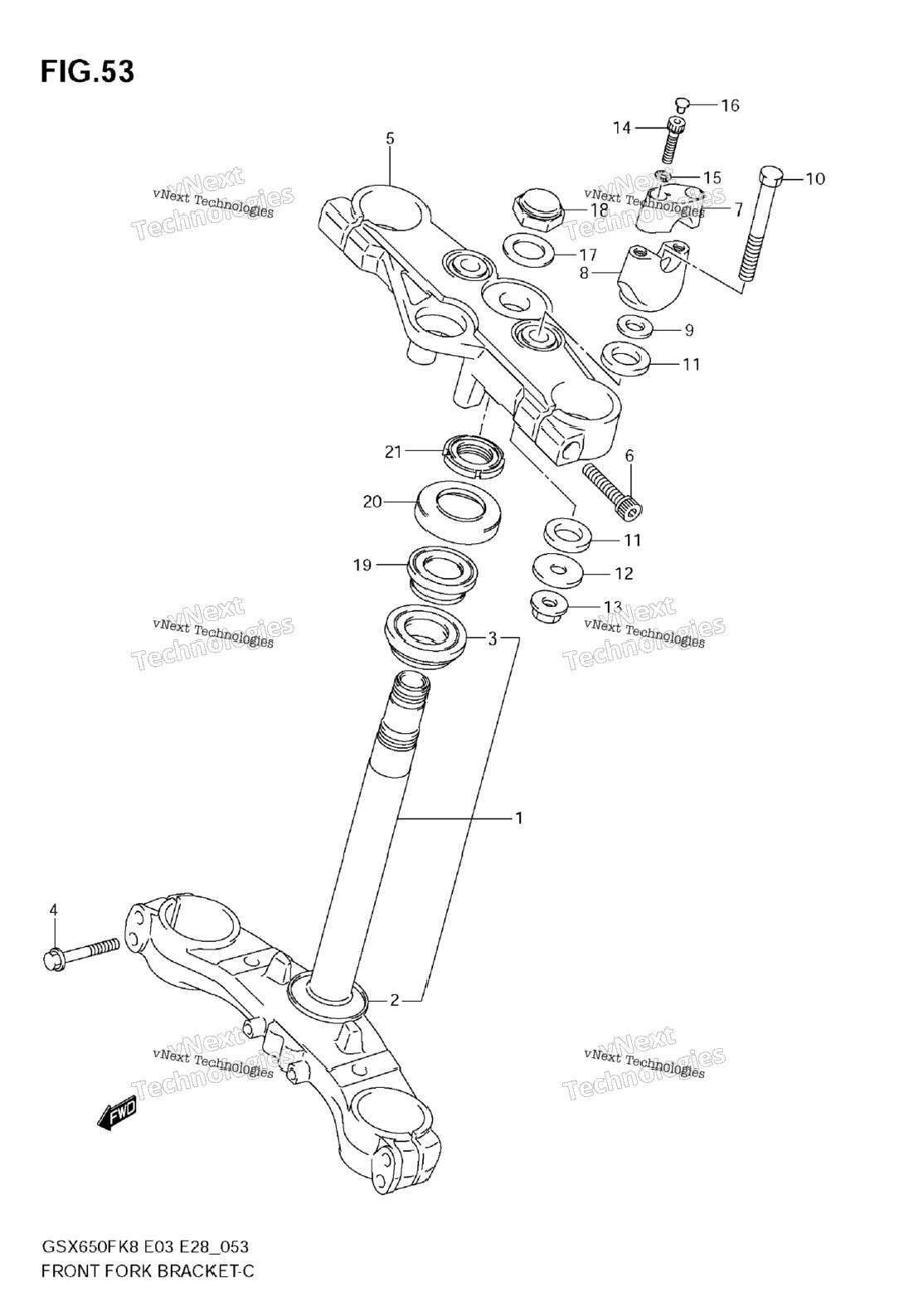

| 1 | 51410-17H10 | BRACKET, FRONT FORK UNDER Includes Item(s) 2 - 3 | 0 шт. | — | |
|
| 2 | 51644-12C00 | .SEAL,STEERING LOWER (30.1X56 | 1 шт. | — | |
|
| 3 | 09265-30020 | BEARING (30X55X17) | 1 шт. | — | |
|
| 4 | 51451-10G00 | BOLT | 4 шт. | — | |
|
| 5 | 51311-17H10 | BRACKET, FRONT FORK UPPER | 0 шт. | — | |
|
| 6 | 51166-17H00 | BOLT | 0 шт. | — | |
|
| 7 | 56211-26F20 | HOLDER, HANDLE | 0 шт. | — | |
|
| 8 | 56221-17H10 | HOLDER, HANDLE, LOWER | 0 шт. | — | |
|
| 9 | 51354-42F00 | WASHER | 2 шт. | — | |
|
| 10 | 51321-17H10 | BOLT | 2 шт. | — | |
|
| 11 | 56245-16G00 | HOLDER RUBBER, HANDLE | 4 шт. | — | |
|
| 12 | 51355-16G00 | WASHER | 2 шт. | — | |
|
| 13 | 08319-3110A | NUT | 2 шт. | — | |
|
| 14 | 51147-48E10 | BOLT | 4 шт. | — | |
|
| 15 | 09164-08015 | WASHER | 4 шт. | — | |
|
| 16 | 09250-06011 | CAP | 4 шт. | — | |
|
| 17 | 51356-10D03 | WASHER | 1 шт. | — | |
|
| 18 | 51353-24B00 | NUT | 1 шт. | — | |
|
| 19 | 09265-25038 | BEARING (25X47X15) | 1 шт. | — | |
|
| 20 | 51643-40502 | SEAL, DUST UPPER | 1 шт. | — | |
|
| 21 | 51631-31F00 | NUT, STEERING STEM | 1 шт. | — | |
|
