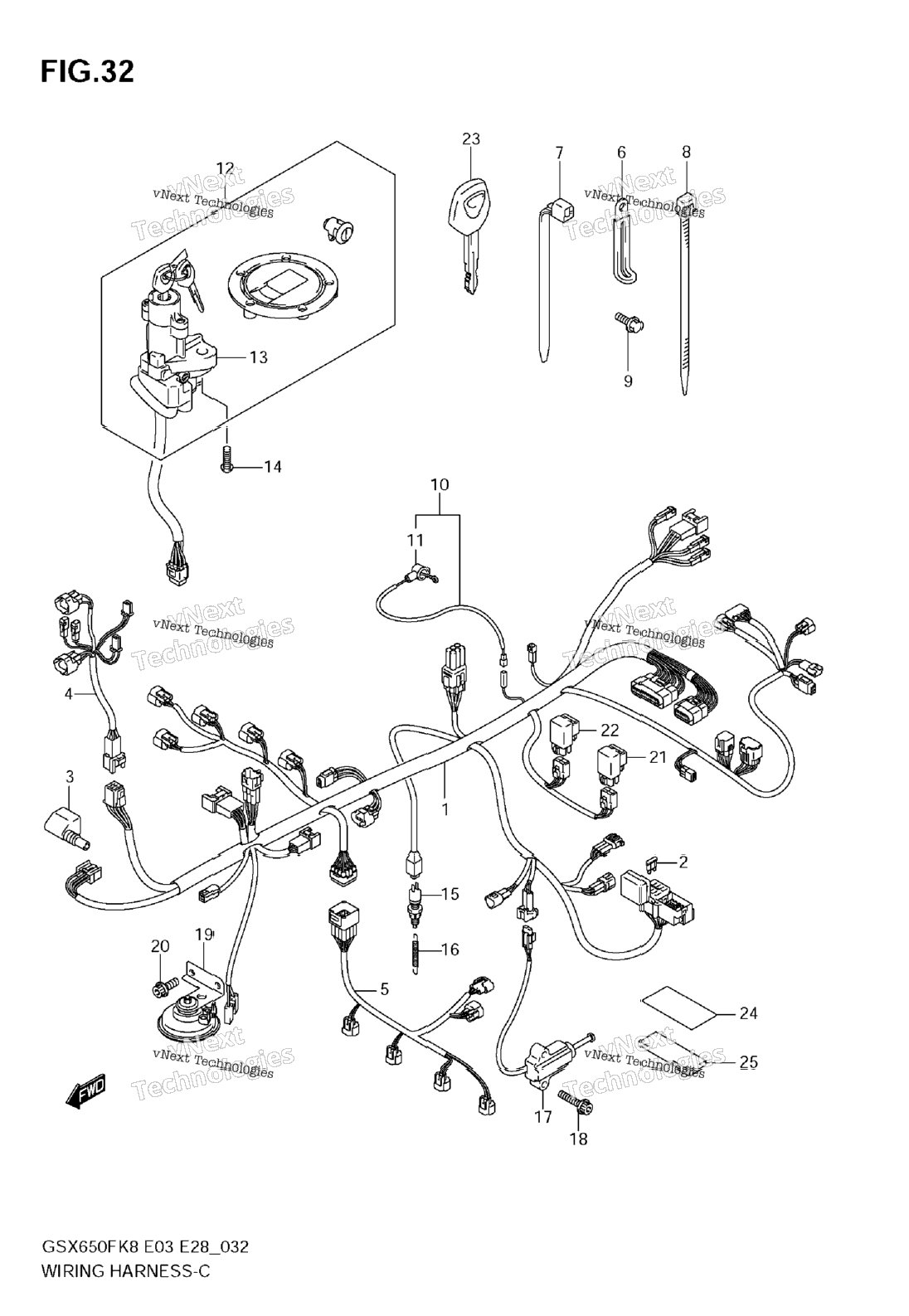

| 1 | 36610-17H80 | HARNESS, WIRING NO.1 | 1 шт. | — | |
|
| 2 | 36610-17H90 | HARNESS, WIRING NO.1 E33; Includes Item(s) 2 - 3 | 0 шт. | — | |
|
| 3 | 09481-10501 | FUSE (10A) | 3 шт. | — | |
|
| 4 | 09481-15501 | FUSE (15A) | 3 шт. | — | |
|
| 5 | 36618-35F00 | .COVER,SPEEDOMETER COUPLER | 1 шт. | — | |
|
| 6 | 36620-17H00 | HARNESS, WIRING NO.2 | 1 шт. | — | |
|
| 7 | 36859-17H00 | WIRE, INJECTOR LEAD | 0 шт. | — | |
|
| 8 | 09404-06429 | CLAMP (L:45) | 4 шт. | — | |
|
| 9 | 09404-06433 | CLAMP (L:95) | 1 шт. | — | — |
|
| 10 | 09407-11401 | CLAMP (L:95) | 3 шт. | — | |
|
| 11 | 09407-14403 | CLAMP (L:125) | 1 шт. | — | |
|
| 12 | 09407-18402 | CLAMP (L:165) | 1 шт. | — | |
|
| 13 | 09407-25401 | CLAMP (L:235) | 1 шт. | — | |
|
| 14 | 09407-14407 | CLAMP (L:145) | 5 шт. | — | |
|
| 15 | 01550-0612A | BOLT, WIRING HARNESS | 1 шт. | — | |
|
| 16 | 36851-18H00 | WIRE, OIL PRESSURE SWITCH Includes Item(s) 11 | 0 шт. | — | |
|
| 17 | 36618-43410 | CAP, OIL PRESSURE | 1 шт. | — | |
|
| 18 | 37000-49820 | LOCK SET | 1 шт. | — | |
|
| 19 | 37000-49830 | LOCK SET E33; Includes Item(s) 13 | 1 шт. | — | |
|
| 20 | 37100-49G00 | LOCK ASSY, STEERING | 1 шт. | — | |
|
| 21 | 09139-08016 | SCREW (8X20) | 2 шт. | — | |
|
| 22 | 37740-24A00 | SWITCH ASSY, STOP LAMP | 1 шт. | — | |
|
| 23 | 09443-06054 | SPRING | 1 шт. | — | |
|
| 24 | 37840-25D00 | SWITCH ASSY, SIDE STAND | 1 шт. | — | |
|
| 25 | 07120-0620B | SCREW | 2 шт. | — | |
|
| 26 | 38500-17H00 | HORN ASSY | 1 шт. | — | |
|
| 27 | 07120-0512A | BOLT | 1 шт. | — | |
|
| 28 | 38740-24X50 | RELAY ASSY, FUEL PUMP | 1 шт. | — | |
|
| 29 | 38740-24X50 | RELAY ASSY, FAN MOTOR | 1 шт. | — | |
|
| 30 | 37146-33E00 | KEY,BLANK OPT | 1 шт. | — | |
|
| 31 | 63131-10F00 | TAPE,RR FENDER (30X75X0.2) | 1 шт. | — | |
|
| 32 | 33652-38A10 | PROTECTOR (20X90X2.0) | 1 шт. | — | |
|
