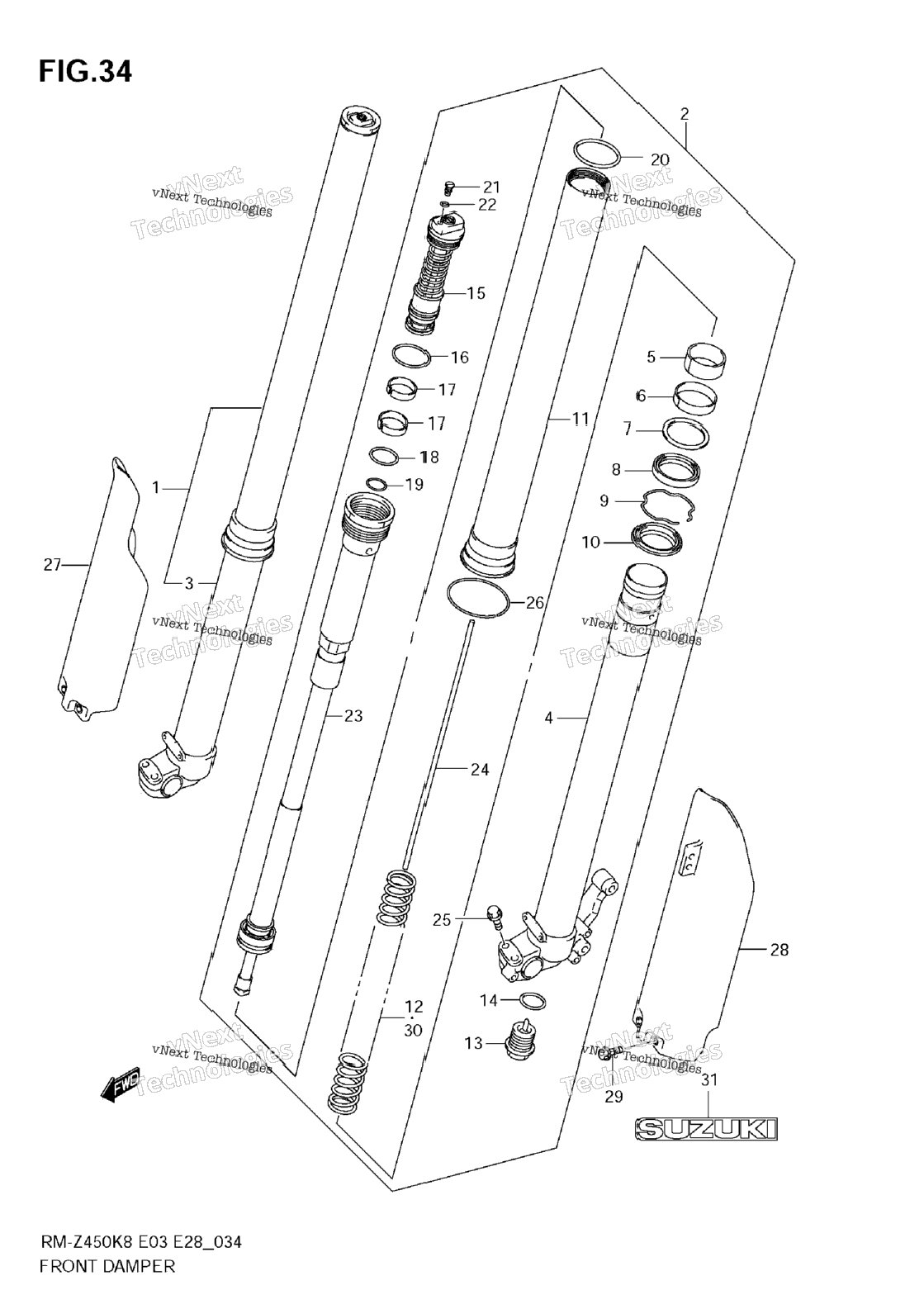

| 1 | 51103-28H00 | DAMPER ASSY, FRONT FORK RH K8/K9 | 0 шт. | — | |
|
| 1 | 51103-28H10 | DAMPER ASSY, FRONT FORK RH L0/L1 | 1 шт. | — | |
|
| 2 | 51104-28H00 | DAMPER ASSY, FRONT FORK LH K8/K9 | 0 шт. | — | |
|
| 2 | 51104-28H10 | DAMPER ASSY, FRONT FORK LH L0/L1 | 1 шт. | — | |
|
| 3 | 51110-35G30 | TUBE, INNER RH K8/K9 | 1 шт. | — | |
|
| 3 | 51110-28H10 | TUBE, INNER RH L0/L1 | 1 шт. | — | |
|
| 4 | 51120-35G30 | TUBE, INNER LH K8/K9 | 1 шт. | — | |
|
| 4 | 51120-28H10 | TUBE, INNER LH L0/L1 | 0 шт. | — | |
|
| 5 | 51121-28H10 | BUSH, GUIDE L0/L1 | 2 шт. | — | |
|
| 5 | 51121-36F00 | ..BUSH SLIDE K8/K9 | 2 шт. | — | |
|
| 6 | 51167-36F00 | ..BUSH GUIDE K8/K9 | 2 шт. | — | |
|
| 6 | 51167-28H10 | BUSH, GUIDE L0/L1 | 2 шт. | — | |
|
| 7 | 51158-36F00 | ..SPACER SEAL | 2 шт. | — | |
|
| 8 | 51153-37F80 | ..SEAL OIL | 2 шт. | — | |
|
| 9 | 51156-27C40 | ..RING OIL SEAL STOPPER | 2 шт. | — | |
|
| 10 | 51173-37F80 | ..SEAL DUST | 2 шт. | — | |
|
| 11 | 51130-28H01 | TUBE, OUTER | 0 шт. | — | |
|
| 12 | 51171-28H00 | SPRING, FRONT (K=0.46) K8/K9 | 0 шт. | — | |
|
| 12 | 51171-28H40 | SPRING, FRONT (K=0.50) L0/L1 | 2 шт. | — | |
|
| 13 | 51170-37FC0 | BOLT, CENTER | 2 шт. | — | |
|
| 14 | 51177-36E20 | O RING | 2 шт. | — | |
|
| 15 | 51351-28H00 | BOLT, FORK K8/K9 | 0 шт. | — | |
|
| 15 | 51351-28H10 | BOLT, FORK L0/L1 | 2 шт. | — | |
|
| 16 | 51117-37F80 | O RING | 2 шт. | — | |
|
| 17 | 51123-10H10 | BUSH, FORK BOLT SLIDE K8/K9 | 0 шт. | — | |
|
| 17 | 51123-28H10 | BUSH, FORK BOLT SLIDE L0/L1 | 4 шт. | — | |
|
| 18 | 51174-36E40 | O RING | 2 шт. | — | |
|
| 19 | 51175-37F80 | O RING | 2 шт. | — | |
|
| 20 | 51118-37F80 | O RING | 2 шт. | — | |
|
| 21 | 51357-36F20 | .BOLT PLUG | 2 шт. | — | |
|
| 22 | 51358-28E30 | ..O RING PLUG | 2 шт. | — | |
|
| 23 | 51190-28H00 | ROD, DAMPER K8/K9 | 0 шт. | — | |
|
| 23 | 51190-28H10 | ROD, DAMPER L0/L1 | 2 шт. | — | |
|
| 24 | 51191-10H10 | ROD, PUSH | 2 шт. | — | |
|
| 25 | 51328-37F80 | BOLT | 4 шт. | — | |
|
| 26 | 51211-37FC0 | RING STOPPER | 2 шт. | — | |
|
| 27 | 51501-28H00 | PROTECTOR, RH | 1 шт. | — | |
|
| 28 | 51511-28H00 | PROTECTOR, LH | 1 шт. | — | |
|
| 29 | 09111-06098 | BOLT (6X10) | 6 шт. | — | |
|
| 30 | 51171-28H10 | SPRING, FRONT (K=0.45) OPT | 2 шт. | — | |
|
| 30 | 51171-10H30 | SPRING, FRONT (K=0.46) OPT | 0 шт. | — | |
|
| 30 | 51171-28H30 | SPRING, FRONT (K=0.48) OPT | 0 шт. | — | |
|
| 30 | 51171-28H20 | SPRING, FRONT (K=0.49) OPT | 0 шт. | — | |
|
| 31 | 68661-29F00-DPZ | EMBLEM, "SUZUKI" | 2 шт. | — | |
|
