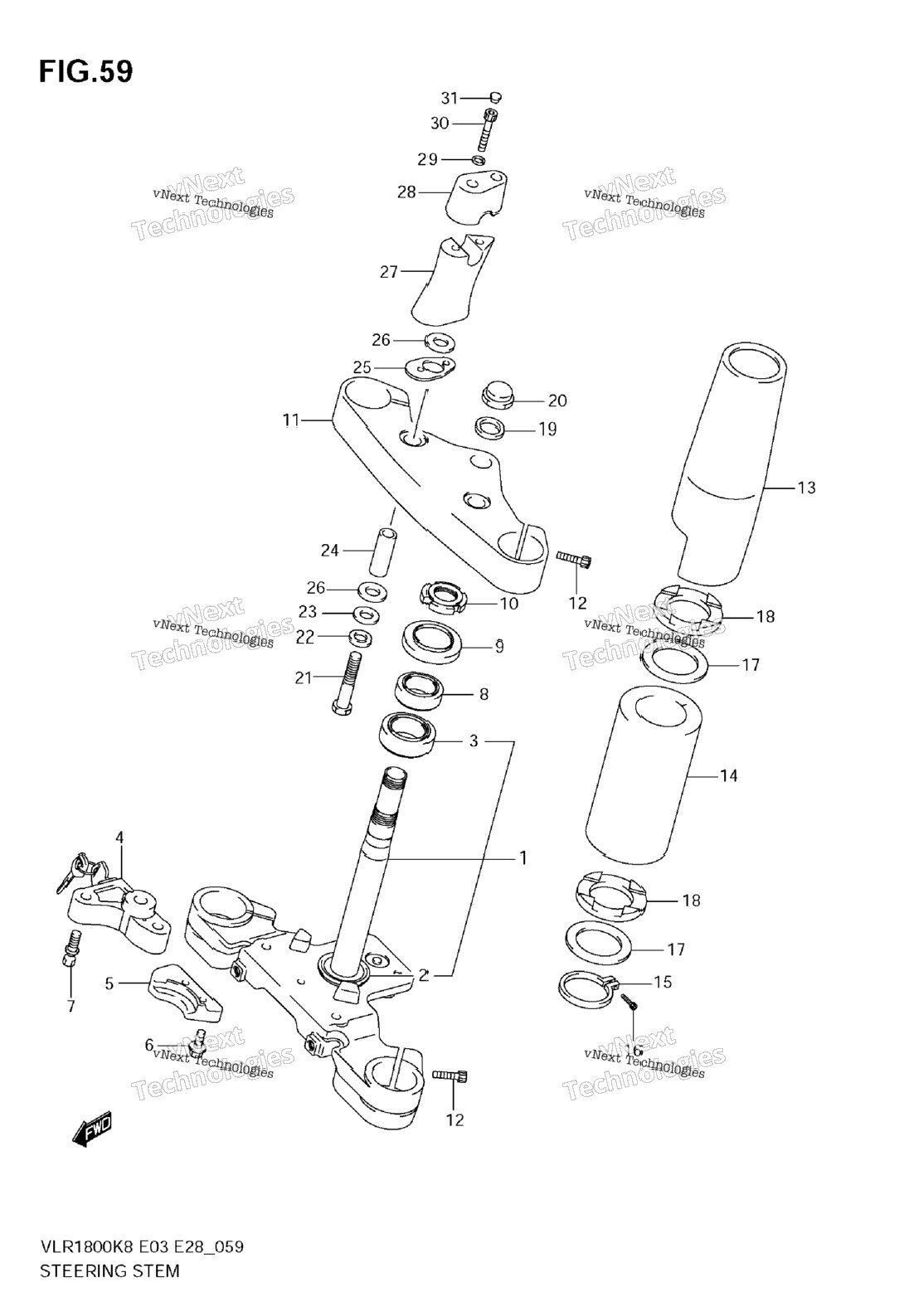

| 1 | 51410-22H00 | STEM, STEERING Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 51644-12C00 | .SEAL,STEERING LOWER (30.1X56 | 1 шт. | — | |
|
| 3 | 09265-30020 | BEARING, STEERING LOWER | 1 шт. | — | |
|
| 4 | 51900-22820 | LOCK SET, STEERING | 0 шт. | — | |
|
| 5 | 51921-22H00 | BRACKET, STEERING LOCK | 0 шт. | — | |
|
| 6 | 09103-08288 | BOLT, STEERING LOCK BRACKET | 2 шт. | — | |
|
| 7 | 51925-48G00 | SCREW, STEERING LOCK | 2 шт. | — | |
|
| 8 | 09265-25038 | BEARING, STEERING UPPER | 1 шт. | — | |
|
| 9 | 51643-40502 | SEAL, STEERING UPPER DUST | 1 шт. | — | |
|
| 10 | 51631-31F00 | NUT, STEERING STEM | 1 шт. | — | |
|
| 11 | 51311-22H00 | BRACKET, FRONT FORK, UPPER | 0 шт. | — | |
|
| 12 | 51312-22H00 | BOLT | 6 шт. | — | |
|
| 13 | 51530-22H00 | COVER, UPPER | 2 шт. | — | |
|
| 14 | 51464-22H00 | CASE, UNDER | 2 шт. | — | |
|
| 15 | 51465-22H00 | SPACER | 0 шт. | — | |
|
| 16 | 51466-10F00 | BOLT | 2 шт. | — | |
|
| 17 | 51467-22H00 | WASHER | 4 шт. | — | |
|
| 18 | 51468-22H00 | RUBBER, SEAT | 0 шт. | — | |
|
| 19 | 51356-24B01 | WASHER, 22.5X32X1.6 | 1 шт. | — | |
|
| 20 | 51353-24B00 | NUT, CAP | 1 шт. | — | |
|
| 21 | 51226-22H00 | BOLT | 0 шт. | — | |
|
| 22 | 51354-41F20 | WASHER | 2 шт. | — | |
|
| 23 | 56245-41F20 | SEAT, RUBBER | 2 шт. | — | |
|
| 24 | 56240-41F20 | DAMPER, RUBBER | 2 шт. | — | |
|
| 25 | 56245-22H00 | RUBBER, HANDLE, LOWER | 2 шт. | — | |
|
| 26 | 51355-22H00 | WASHER | 0 шт. | — | |
|
| 27 | 56221-22H00 | HOLDER, HANDLE, LOWER | 0 шт. | — | |
|
| 28 | 09164-08015 | WASHER | 4 шт. | — | |
|
| 29 | 56211-22H00 | HOLDER, HANDLE, UPPER | 0 шт. | — | |
|
| 30 | 07130-08407 | BOLT | 4 шт. | — | |
|
| 31 | 09250-06011 | CAP, HANDLE HOLDER BOLT | 4 шт. | — | |
|
