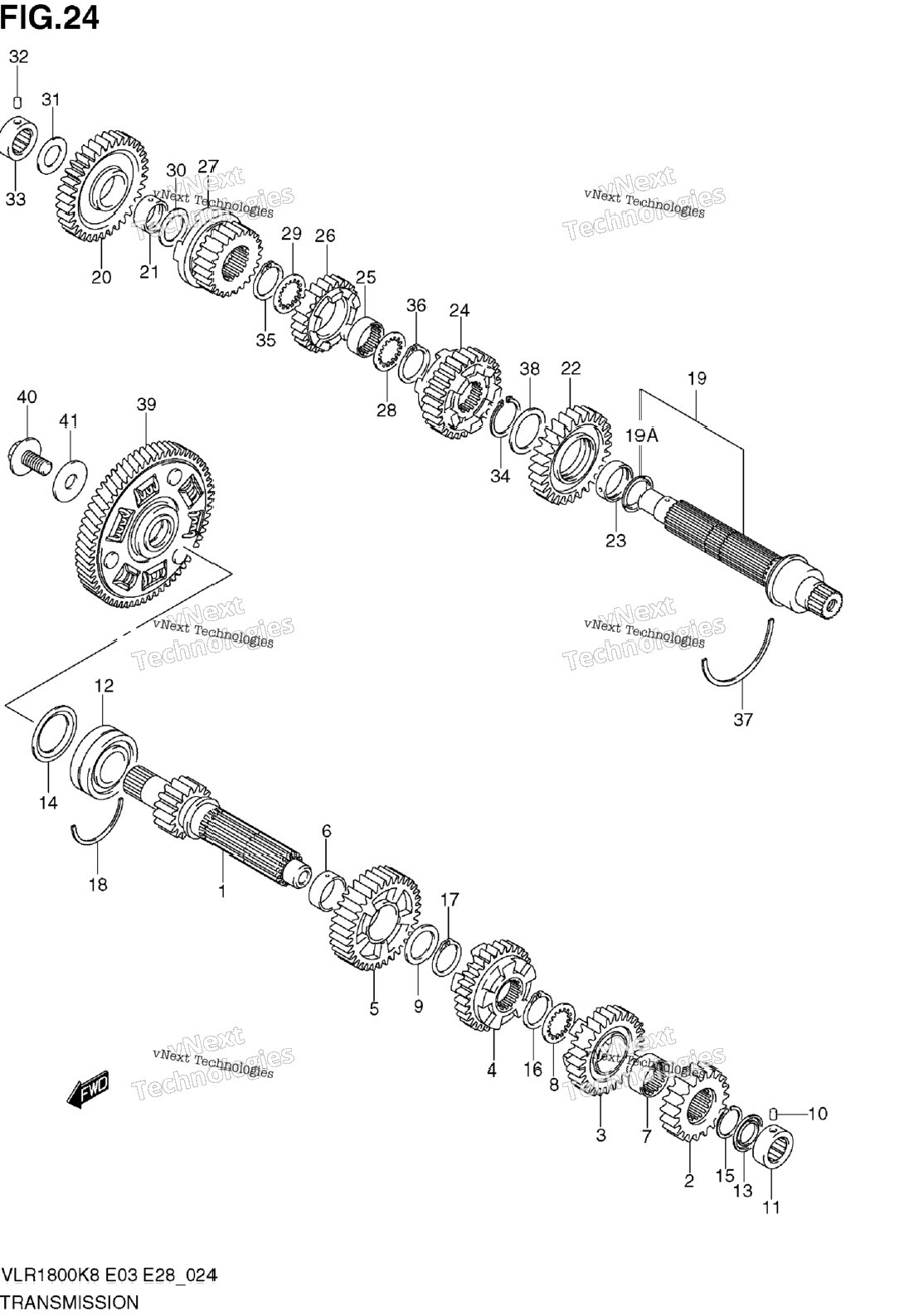

| 1 | 24121-48G10 | SHAFT, CNTR (NT:16) | 1 шт. | — | |
|
| 2 | 24221-48G10 | GEAR, 2ND DRIVE (NT:20) | 0 шт. | — | |
|
| 3 | 24231-48G00 | GEAR, 3RD DRIVE (NT:28) | 1 шт. | — | |
|
| 4 | 24241-48G00 | GEAR, 4TH DRIVE (NT:29) | 1 шт. | — | |
|
| 5 | 24251-48G00 | GEAR, 5TH DRIVE (NT:35) | 1 шт. | — | |
|
| 6 | 24252-24F10 | BUSH, 5TH DRIVE GEAR | 1 шт. | — | |
|
| 7 | 24262-24F10 | BUSH, 3RD DRIVE GEAR | 1 шт. | — | |
|
| 8 | 09167-27003 | LOCK WASHER (27X36X2.5) | 1 шт. | — | |
|
| 9 | 09181-27014 | WASHER, 5TH DRIVE GEAR 27X36X2.5 | 1 шт. | — | |
|
| 10 | 09261-06003 | PIN, CNTR SHAFT BRG, L 6X10 | 1 шт. | — | |
|
| 11 | 09263-20087 | BEARING, CNTR SHAFT, L 20X34X13.5 | 1 шт. | — | |
|
| 12 | 09267-25012 | BEARING, CNTR SHAFT, R | 1 шт. | — | |
|
| 13 | 09285-20006 | SEAL,OIL (20X31.2X2.7) | 1 шт. | — | |
|
| 14 | 09285-34011 | SEAL, COUNTER SHAFT, R | 1 шт. | — | |
|
| 15 | 09380-27004 | CIRCLIP, 2ND DRIVE GEAR | 1 шт. | — | |
|
| 16 | 09380-27006 | CIRCLIP, 3RD DRIVE GEAR | 1 шт. | — | |
|
| 17 | 09380-27006 | CIRCLIP, 5TH DRIVE GEAR | 1 шт. | — | |
|
| 18 | 09390-62012 | C-RING | 1 шт. | — | |
|
| 19 | 24130-48G01 | SHAFT, DRIVE Includes Item(s) 19A | 1 шт. | — | |
|
| 20 | 24136-48G01 | RING, DRIVE SHAFT FRICT | 1 шт. | — | |
|
| 21 | 24311-48G00 | GEAR, 1ST DRIVEN (NT:35) | 1 шт. | — | |
|
| 22 | 24312-24F10 | BUSH, 1ST DRIVEN GEAR | 1 шт. | — | |
|
| 23 | 24321-48G01 | GEAR, 2ND DRIVEN (NT:28) | 1 шт. | — | |
|
| 24 | 24322-48G00 | BUSH, 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 25 | 24331-48G00 | GEAR, 3RD DRIVEN (NT:27) | 1 шт. | — | |
|
| 26 | 24332-24F10 | BUSH, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 27 | 24341-48G00 | GEAR, 4TH DRIVEN (NT:24) | 1 шт. | — | |
|
| 28 | 24351-48G00 | GEAR, 5TH DRIVEN (NT:24) | 1 шт. | — | |
|
| 29 | 09167-30008 | WASHER, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 30 | 09167-30008 | WASHER, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 31 | 09181-20251 | WASHER, 1ST DRIVEN GEAR 20X34X1.0 | 1 шт. | — | |
|
| 32 | 09181-24005 | WASHER, 1ST DRIVEN GEAR 24X34X1.0 | 1 шт. | — | |
|
| 33 | 09261-06003 | PIN, DRIVE SHAFT BRG, R 6X10 | 1 шт. | — | |
|
| 34 | 09263-20087 | BEARING, DRIVE SHAFT, R | 1 шт. | — | |
|
| 35 | 09380-30009 | CIRCLIP, 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 36 | 09380-30009 | CIRCLIP, 4TH DRIVEN GEAR, R | 1 шт. | — | |
|
| 37 | 09380-30009 | CIRCLIP, 4TH DRIVEN GEAR, L | 1 шт. | — | |
|
| 38 | 09390-80004 | C RING, DRIVE SHAFT BRG, L | 2 шт. | — | |
|
| 39 | 08211-30403 | WASHER, 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 40 | 21200-22810 | GEAR ASSY, PRIMARY DRIVEN NT:58 | 1 шт. | — | |
|
| 41 | 09103-12084 | BOLT, PRIMARY DRIVEN GEAR 12X24 | 1 шт. | — | |
|
| 42 | 09160-12045 | WASHER, PRIMARY DRIVEN 12X35X2.0 | 1 шт. | — | |
|
