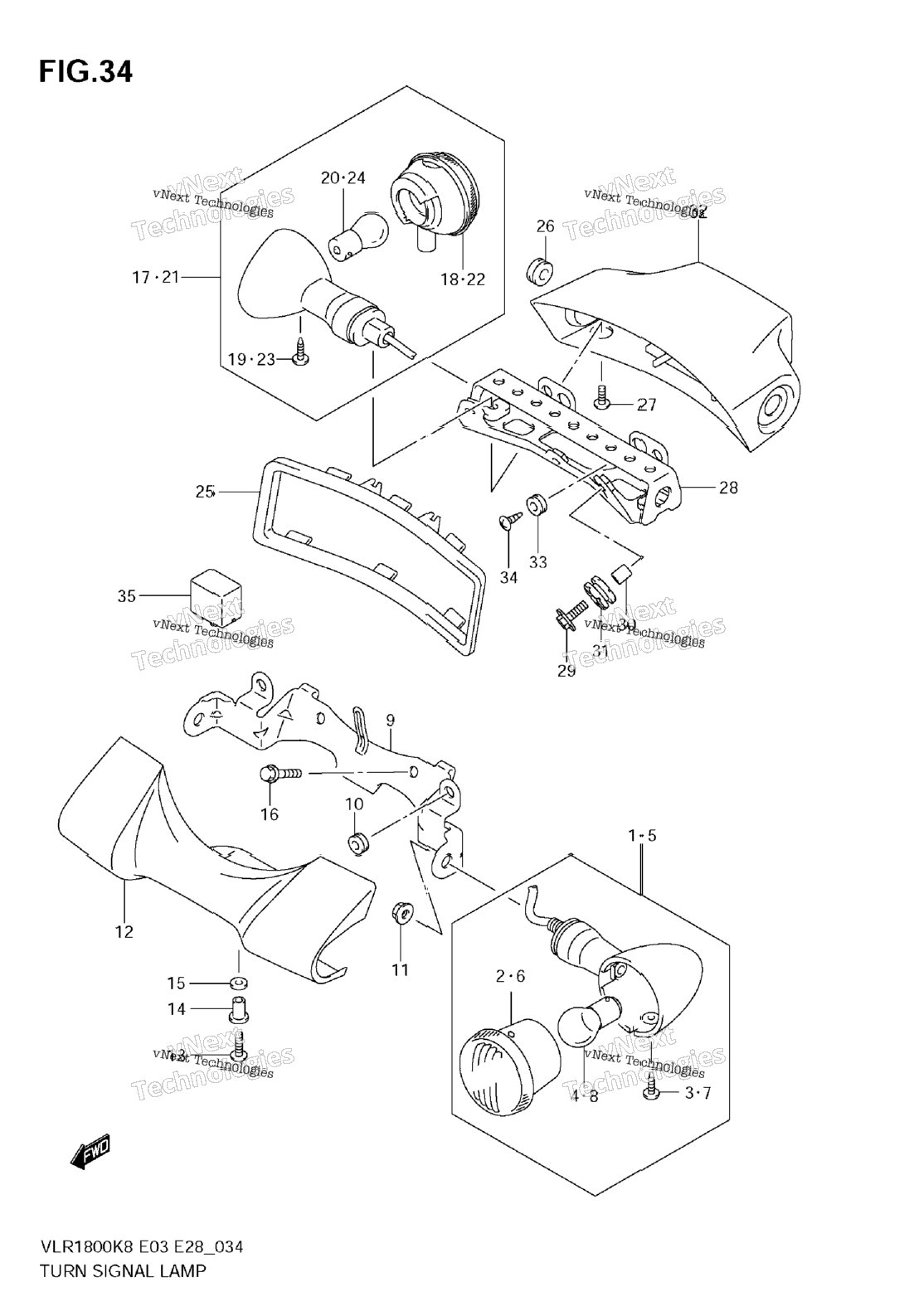

| 1 | 35601-41FC0 | LAMP ASSY, FR TURNSIGNAL, R Includes Item(s) 2 - 4 | 1 шт. | — | |
|
| 2 | 35610-38AA0 | LENS, R | 1 шт. | — | |
|
| 3 | 35623-38AA0 | SCREW (4X40) | 1 шт. | — | |
|
| 4 | 09471-12083 | BULB (12V21/5W) | 1 шт. | — | |
|
| 5 | 35602-41FC0 | LAMP ASSY, FR TURNSIGNAL, L Includes Item(s) 6 - 8 | 1 шт. | — | |
|
| 6 | 35630-38AA0 | LENS, L | 1 шт. | — | |
|
| 7 | 35623-38AA0 | SCREW (4X40) | 1 шт. | — | |
|
| 8 | 09471-12083 | BULB (12V21/5W) | 1 шт. | — | |
|
| 9 | 35616-41FD0 | BRACKET, FRONT | 1 шт. | — | |
|
| 10 | 09320-06016 | CUSHION | 2 шт. | — | |
|
| 11 | 08310-0010B | NUT | 2 шт. | — | |
|
| 12 | 35641-41F02 | COVER, FR | 1 шт. | — | |
|
| 13 | 09139-05042 | SCREW, FR (5X16) | 1 шт. | — | |
|
| 14 | 09159-05019 | NUT, FR | 1 шт. | — | |
|
| 15 | 09160-05048 | WASHER | 1 шт. | — | |
|
| 16 | 01550-0816B | BOLT, FR TURN | 2 шт. | — | |
|
| 17 | 35603-38AB2 | LAMP ASSY, REAR TURNSIGNAL, R Includes Item(s) 18 - 20 | 1 шт. | — | |
|
| 18 | 35630-38AE1 | LENS | 1 шт. | — | |
|
| 19 | 35623-38AA0 | SCREW | 1 шт. | — | |
|
| 20 | 09471-12045 | BULB (12V21W) | 1 шт. | — | |
|
| 21 | 35604-38AB2 | LAMP ASSY, REAR TURNSIGNAL, L Includes Item(s) 22 - 24 | 1 шт. | — | |
|
| 22 | 35610-38AE1 | LENS | 1 шт. | — | |
|
| 23 | 35623-38AA0 | SCREW | 1 шт. | — | |
|
| 24 | 09471-12045 | BULB (12V21W) | 1 шт. | — | |
|
| 25 | 35657-22H00 | GASKET, RR TURNSIGNAL | 1 шт. | — | |
|
| 26 | 09308-10005 | GROMMET, RR LEAD | 0 шт. | — | |
|
| 27 | 09103-06507 | BOLT, RR TURNSIGNAL (6X14) E3,E33 | 2 шт. | — | |
|
| 28 | 09125-06092 | SCREW, RR TURNSIGNAL (6X12) E28 | 2 шт. | — | |
|
| 29 | 35620-22H00 | BRACKET, RR TURNSIGNAL | 1 шт. | — | |
|
| 30 | 09116-06131 | BOLT (6X25) | 3 шт. | — | |
|
| 31 | 09180-06290 | SPACER (6.5X10X12) | 3 шт. | — | |
|
| 32 | 09320-10051 | CUSHION | 3 шт. | — | |
|
| 33 | 35621-22H00 | COVER, RR TURNSIGNAL | 1 шт. | — | |
|
| 34 | 09320-06016 | CUSHION | 2 шт. | — | |
|
| 35 | 03541-0510A | SCREW, RR COVER | 2 шт. | — | |
|
| 36 | 38610-03F00 | RELAY ASSY, TURNSIGNAL | 1 шт. | — | |
|
