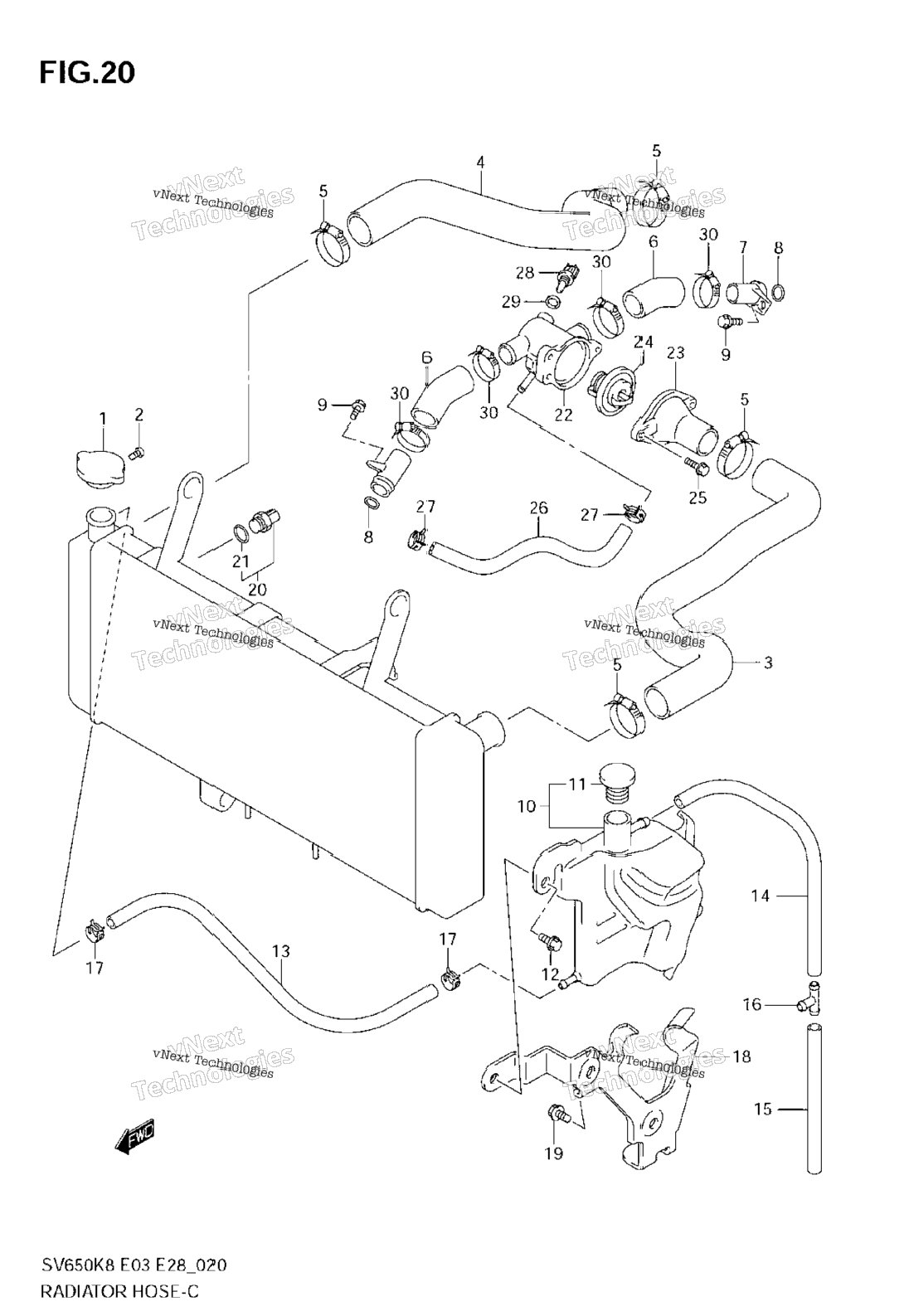

| 1 | 17730-19D11 | CAP RADIATOR (1.1) | 1 шт. | — | |
|
| 2 | 17733-03D10 | SCREW RADIATOR CAP | 1 шт. | — | |
|
| 3 | 17851-17G10 | HOSE, RADIATOR INLET | 1 шт. | — | |
|
| 4 | 17852-17G20 | HOSE, RADIATOR OUTLET | 1 шт. | — | |
|
| 5 | 09402-38512 | CLAMP | 4 шт. | — | |
|
| 6 | 17853-19F00 | HOSE, CONNECTOR INLET | 2 шт. | — | |
|
| 7 | 17890-06G20 | UNION,CONNECTOR HOSE | 2 шт. | — | |
|
| 8 | 09280-18009 | O RING | 2 шт. | — | |
|
| 9 | 07130-0612A | BOLT | 2 шт. | — | |
|
| 10 | 17910-17G10 | TANK ASSY, RESERVOIR Includes Item(s) 11 | 1 шт. | — | |
|
| 11 | 17931-02FA0 | .CAP, RESERVOIR TANK | 1 шт. | — | |
|
| 12 | 09111-06085 | BOLT | 1 шт. | — | |
|
| 13 | 09352-50901-600 | HOSE, RESERVOIR TANK INLET L:600!550 | 1 шт. | — | |
|
| 14 | 09352-50901-600 | HOSE, RESERVOIR TANK OVERFLOW, NO.1 L:600!400 | 1 шт. | — | |
|
| 15 | 09352-70103-600 | HOSE, RESERVOIR TANK OVERFLOW, NO.2 L:600!380 | 1 шт. | — | |
|
| 16 | 09367-08005 | JOINT | 1 шт. | — | |
|
| 17 | 09401-08411 | CLIP | 2 шт. | — | |
|
| 18 | 17920-17G10 | BRACKET, RESERVOIR TANK | 0 шт. | — | |
|
| 19 | 01550-0610A | BOLT | 2 шт. | — | |
|
| 20 | 17680-50F10 | SWITCH, RADIATOR FAN Includes Item(s) 21 | 1 шт. | — | |
|
| 21 | 17689-50F00 | O RING | 1 шт. | — | |
|
| 22 | 17662-02F11 | CONNECTOR,THERMOSTAT,INLET | 1 шт. | — | |
|
| 23 | 17663-17G00 | CAP, THERMOSTAT CONNECTOR | 1 шт. | — | |
|
| 24 | 17670-06G70 | THERMOSTAT, WATER | 1 шт. | — | |
|
| 25 | 01550-0616B | .BOLT | 2 шт. | — | |
|
| 26 | 17856-19F00 | HOSE, CONNECTOR TO WATER PUMP | 1 шт. | — | |
|
| 27 | 09401-12409 | CLAMP | 2 шт. | — | |
|
| 28 | 13650-57F00 | SENSOR, WATER TEMPERATURE | 1 шт. | — | |
|
| 29 | 09168-12017 | GASKET | 1 шт. | — | |
|
| 30 | 09402-28513 | CLAMP | 4 шт. | — | |
|
