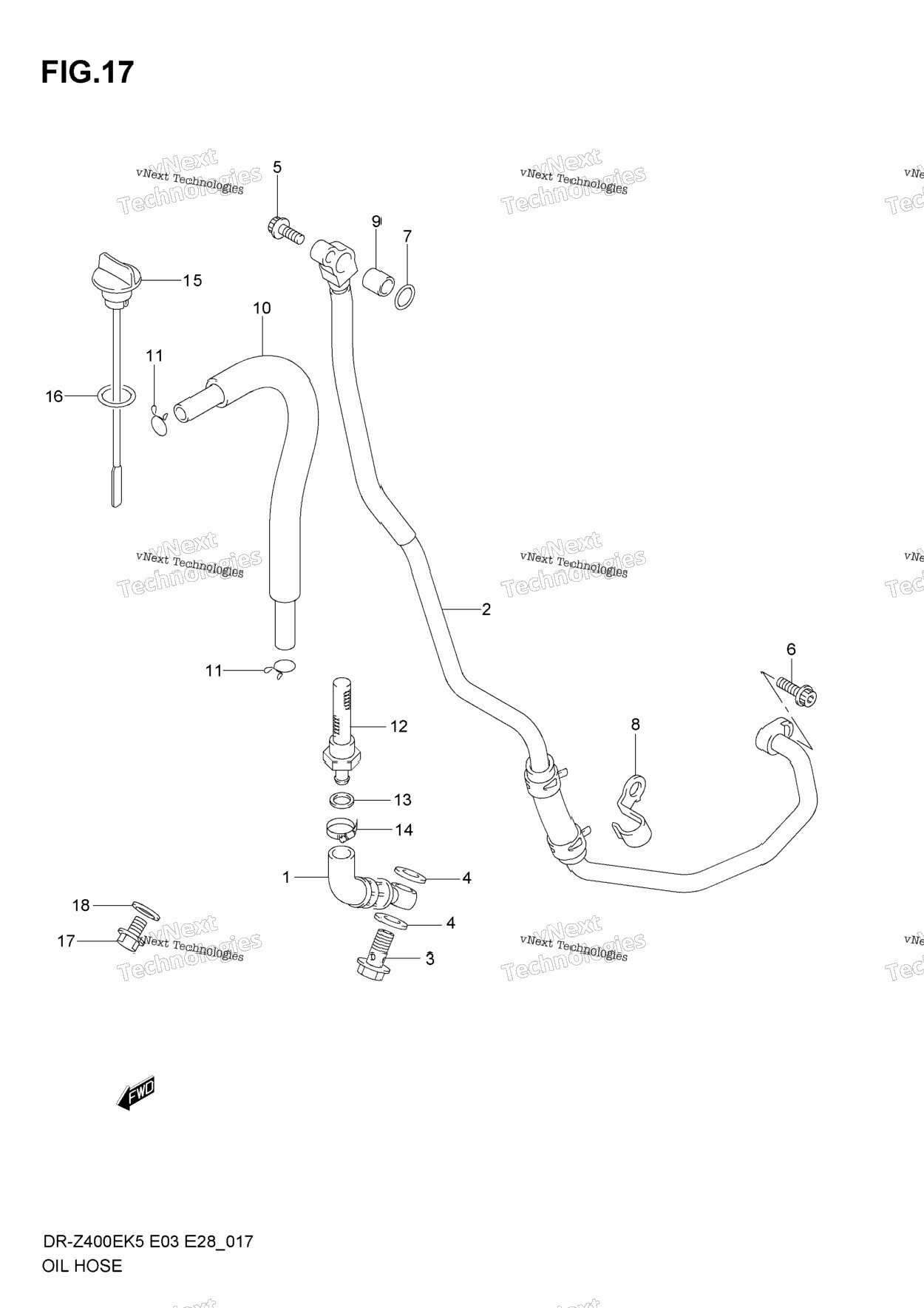

| 1 | 16460-29F10 | HOSE OIL TANK R | 1 шт. | — | |
|
| 2 | 16470-29F00 | HOSE, OIL TANK LH | 0 шт. | — | |
|
| 3 | 09360-14012 | BOLT, UNION (14X27) | 1 шт. | — | |
|
| 4 | 09168-14015 | GASKET (14X20X1.5) | 2 шт. | — | |
|
| 5 | 07120-06163 | BOLT, UPPER | 1 шт. | — | |
|
| 6 | 07120-06203 | BOLT | 1 шт. | — | |
|
| 7 | 09280-11005 | .O-RING (D:2.4 ID:11) | 2 шт. | — | |
|
| 8 | 16491-29F01 | CLAMP, OIL TANK HOSE | 0 шт. | — | |
|
| 9 | 04211-11129 | PIN, OIL TANK HOSE | 2 шт. | — | |
|
| 10 | 16480-29F00 | HOSE OIL TANK OVER FLOW | 1 шт. | — | |
|
| 11 | 09401-12403 | CLIP | 2 шт. | — | |
|
| 12 | 16550-29F00 | STRAINER FRAME HEAD UNDER | 1 шт. | — | |
|
| 13 | 09168-18007 | GASKET | 1 шт. | — | |
|
| 14 | 09402-22511 | CLAMP | 1 шт. | — | |
|
| 15 | 16561-29F10 | GAUGE OIL LEVEL | 1 шт. | — | |
|
| 16 | 09280-17003 | O-RING (D:3.1,ID:16.8) | 1 шт. | — | |
|
| 17 | 09247-10008 | PLUG, DRAIN | 1 шт. | — | |
|
| 18 | 09168-10002 | GASKET (10X14X3.6) | 1 шт. | — | |
|
