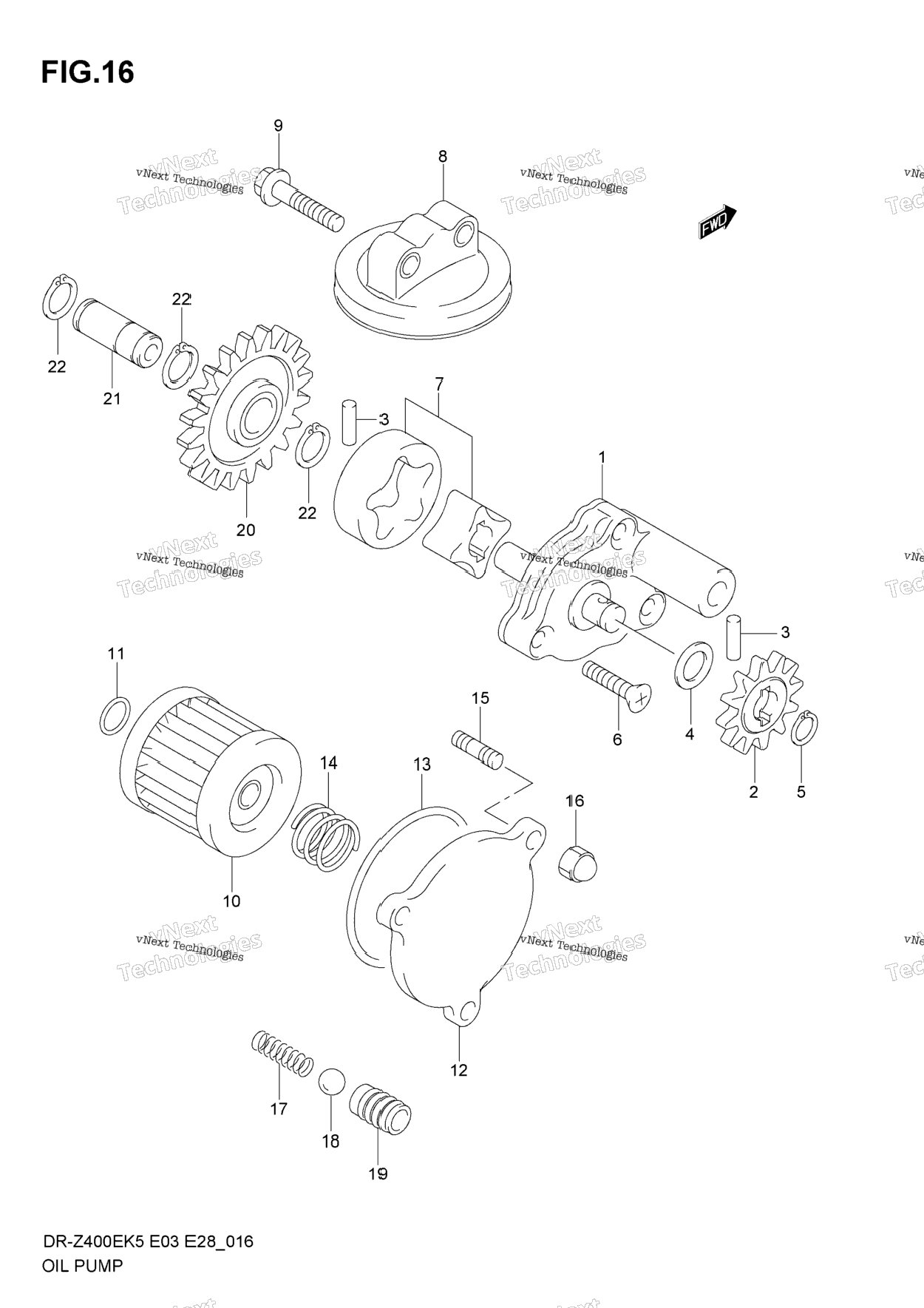

| 1 | 16400-29F00 | PUMP ASSY ENGINE OIL NO.1 | 1 шт. | — | |
|
| 2 | 16331-29F01 | GEAR OIL PUMP DRIVEN (NT:12) | 1 шт. | — | |
|
| 3 | 09261-04009 | PIN | 2 шт. | — | |
|
| 4 | 09181-10158 | WASHER | 1 шт. | — | |
|
| 5 | 08331-31106 | CIRCLIP | 1 шт. | — | |
|
| 6 | 02122-06253 | SCREW | 3 шт. | — | |
|
| 7 | 16410-29F00 | ROTOR SET OIL PUMP NO.2 | 1 шт. | — | |
|
| 8 | 16520-29F00 | STRAINER, OIL PUMP | 1 шт. | — | |
|
| 9 | 01550-06253 | BOLT MODEL K5/K6 | 2 шт. | — | |
|
| 9 | 01550-0625A | BOLT MODEL K7 | 2 шт. | — | |
|
| 10 | 16510-29F00 | FILTER ASSY ENGINE OIL | 1 шт. | — | |
|
| 11 | 09280-13004 | .O-RING (D:1.9,ID:13) | 1 шт. | — | |
|
| 12 | 16512-47E00 | CAP OIL FILTER | 1 шт. | — | |
|
| 13 | 09280-54001 | .O-RING (D:2.4,ID:52.6) | 1 шт. | — | |
|
| 14 | 09440-18002 | SPRING | 1 шт. | — | |
|
| 15 | 09108-06123 | STUD BOLT | 3 шт. | — | |
|
| 16 | 08313-10063 | NUT MODEL K5/K6 | 3 шт. | — | |
|
| 16 | 08313-1006A | NUT MODEL K7 | 3 шт. | — | |
|
| 17 | 09440-07073 | SPRING | 1 шт. | — | |
|
| 18 | 06111-12004 | BALL | 1 шт. | — | |
|
| 19 | 16442-29F00 | SEAT OIL CHECK VALVE | 1 шт. | — | |
|
| 20 | 16321-29F00 | GEAR OIL PUMP IDLE (NT:20) | 1 шт. | — | |
|
| 21 | 16322-29F00 | SHAFT OIL PUMP IDLE GEAR | 1 шт. | — | |
|
| 22 | 08331-31126 | CIRCLIP | 2 шт. | — | |
|
