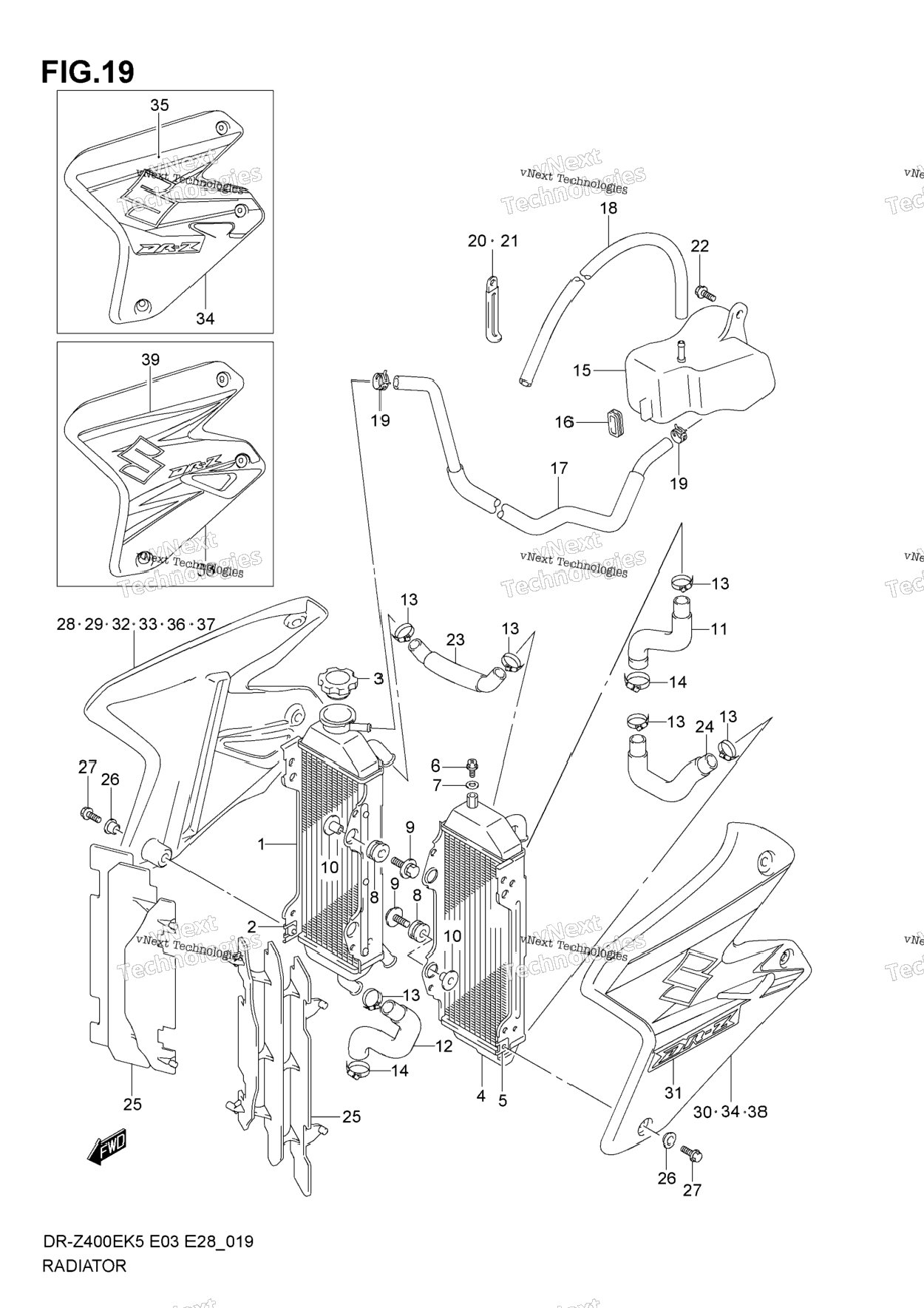

| 1 | 17710-29F20 | RADIATOR, RH Includes Item(s) 2 | 1 шт. | — | |
|
| 2 | 09148-06015 | NUT | 1 шт. | — | |
|
| 3 | 17730-12C30 | CAP, RADIATOR (1.1) | 1 шт. | — | |
|
| 4 | 17720-29F20 | RADIATOR, LH Includes Item(s) 5 | 0 шт. | — | |
|
| 5 | 09148-06015 | NUT | 1 шт. | — | |
|
| 6 | 17568-50F00 | BOLT, AIR RELEASE | 1 шт. | — | |
|
| 7 | 09168-06026 | GASKET, AIR RELEASE | 1 шт. | — | |
|
| 8 | 17787-19A00 | CUSHION RADIATOR LWR | 4 шт. | — | |
|
| 9 | 09116-06147 | BOLT (6X25) | 4 шт. | — | |
|
| 10 | 09180-06243 | SPACER | 4 шт. | — | |
|
| 11 | 17851-29F21 | HOSE,RADIATOR INLET | 1 шт. | — | |
|
| 12 | 17852-29F20 | HOSE, OUTLET | 1 шт. | — | |
|
| 13 | 09402-28511 | CLAMP | 6 шт. | — | |
|
| 14 | 09402-32511 | CLAMP | 2 шт. | — | |
|
| 15 | 17911-29F11 | TANK RESERVOIR | 1 шт. | — | |
|
| 16 | 17913-29F00 | CUSHION RESERVOIR TANK | 1 шт. | — | |
|
| 17 | 17981-29F01 | HOSE RESERVOIR TANK INLET | 1 шт. | — | |
|
| 18 | 09352-50901-00B | HOSE, OVERFLOW L:2000!650 | 1 шт. | — | |
|
| 19 | 09401-08411 | CLIP | 2 шт. | — | |
|
| 20 | 09404-08205 | CLAMP, RESERVOIR HOSE | 1 шт. | — | |
|
| 21 | 09404-06429 | CLAMP, RESERVOIR INLET HOSE | 1 шт. | — | |
|
| 22 | 01550-06123 | BOLT | 1 шт. | — | |
|
| 23 | 17853-29F10 | HOSE RADIATOR JOINT | 1 шт. | — | |
|
| 24 | 17854-29F20 | HOSE, JOINT LOWER | 1 шт. | — | |
|
| 25 | 17831-37E11 | LOUVER RADIATOR | 2 шт. | — | |
|
| 26 | 09169-06060 | WASHER MODEL K5 | 6 шт. | — | |
|
| 27 | 09169-06053 | WASHER MODEL K6/K7 | 6 шт. | — | |
|
| 28 | 01547-06123 | BOLT MODEL K5 | 6 шт. | — | |
|
| 29 | 09103-06273 | BOLT MODEL K6/K7 | 6 шт. | — | |
|
| 30 | 17760-29F70-YU1 | COVER, RADIATOR, RH (YELLOW) MODEL K5; Includes Item(s) 29 | 0 шт. | — | |
|
| 31 | 68665-29F70-YHB | TAPE, RADIATOR COVER, RH MODEL K5 | 0 шт. | — | |
|
| 32 | 17770-29F70-YU1 | COVER, RADIATOR, LH (YELLOW) MODEL K5; Includes Item(s) 31 | 0 шт. | — | |
|
| 33 | 68675-29F70-YHB | TAPE, RADIATOR COVER, LH MODEL K5 | 0 шт. | — | |
|
| 34 | 17760-29F90-YU1 | COVER, RADIATOR, RH (YELLOW) MODEL K6; Includes Item(s) 33 | 0 шт. | — | |
|
| 35 | 68665-29F90-CET | TAPE, RADIATOR COVER, RH MODEL K6 | 0 шт. | — | |
|
| 36 | 17770-29F90-YU1 | COVER, RADIATOR, LH (YELLOW) MODEL K6; Includes Item(s) 35 | 0 шт. | — | |
|
| 37 | 68675-29F90-CET | TAPE, RADIATOR COVER, LH MODEL K6 | 0 шт. | — | |
|
| 38 | 17760-29FA0-YU1 | COVER, RADIATOR, RH (YELLOW) MODEL K7; Includes Item(s) 37 | 1 шт. | — | |
|
| 39 | 68665-29FA0-DRA | TAPE, RADIATOR COVER, RH MODEL K7 | 1 шт. | — | |
|
| 40 | 17770-29FA0-YU1 | COVER, RADIATOR, LH (YELLOW) MODEL K7; Includes Item(s) 39 | 1 шт. | — | |
|
| 41 | 68675-29FA0-DRA | TAPE, RADIATOR COVER, LH MODEL K7 | 1 шт. | — | |
|
