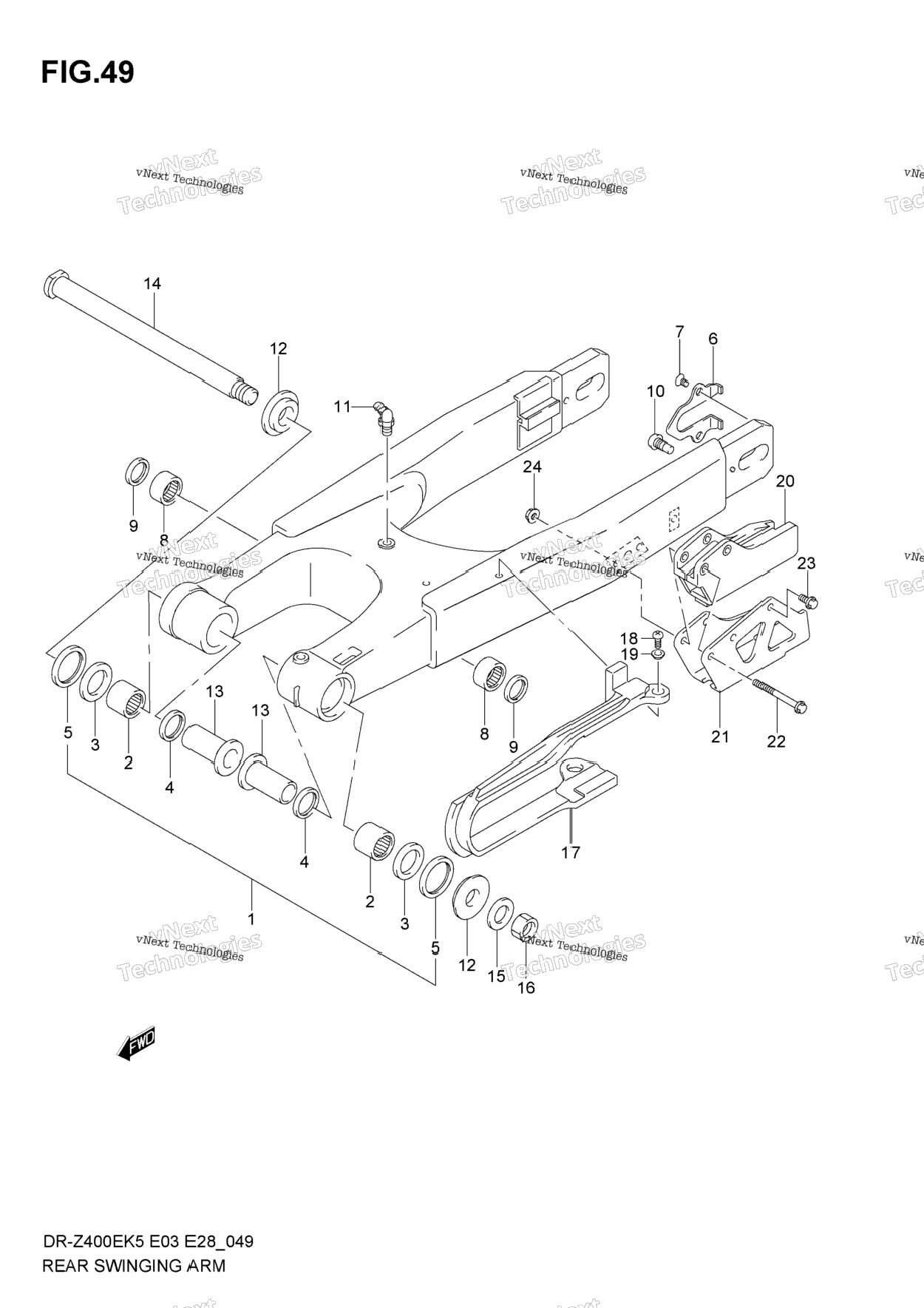

| 1 | 61000-29F00 | SWINGING ARM ASSY, REAR Includes Item(s) 2 - 11 | 1 шт. | — | |
|
| 2 | 09263-22017 | BEARING, PIVOT (22X29X30) | 2 шт. | — | |
|
| 3 | 09263-22064 | BEARING, OUTER (22X35X2) | 2 шт. | — | |
|
| 4 | 09285-22001 | SEAL, INNER (22X29X4) | 2 шт. | — | |
|
| 5 | 61262-36E00 | .SEAL RR SWGARM PIVOT OUTER ( | 2 шт. | — | |
|
| 6 | 61128-29E00 | .PLATE RR SWING ARM AXLE | 1 шт. | — | |
|
| 7 | 09126-05009 | SCREW (5X8) | 2 шт. | — | |
|
| 8 | 09263-20086 | BEARING, ROD (20X27X15) | 2 шт. | — | |
|
| 9 | 62624-14500 | .SEAL CUSHION LEVER DUST (19X | 2 шт. | — | |
|
| 10 | 61431-13E00 | STOPPER, CHAIN ADJUSTER | 2 шт. | — | |
|
| 11 | 08351-31008 | NIPPLE, GREASE | 3 шт. | — | |
|
| 12 | 61250-44E00 | SPACER SWINGINGARM PIVOT OUTE | 2 шт. | — | |
|
| 13 | 61252-36E00 | SPACER SWGARM PIVOT INNER | 2 шт. | — | |
|
| 14 | 61211-29F00 | SHAFT RR SWINGINGARM PIVOT | 1 шт. | — | |
|
| 15 | 08322-01163 | WASHER | 1 шт. | — | |
|
| 16 | 09159-16007 | NUT | 1 шт. | — | |
|
| 17 | 61273-29F00 | BUFFER CHAIN TOUCH DEFENSE | 1 шт. | — | |
|
| 18 | 02112-05083 | SCREW | 3 шт. | — | |
|
| 19 | 09169-05022 | WASHER | 3 шт. | — | |
|
| 20 | 61341-37F00 | GUIDE, CHAIN | 1 шт. | — | |
|
| 21 | 61342-36E30 | PLATE, GUIDE OUTER | 1 шт. | — | |
|
| 22 | 01547-06503 | BOLT, UPPER | 2 шт. | — | |
|
| 23 | 01547-06123 | BOLT, REAR | 1 шт. | — | |
|
| 24 | 08319-31063 | NUT | 2 шт. | — | |
|
