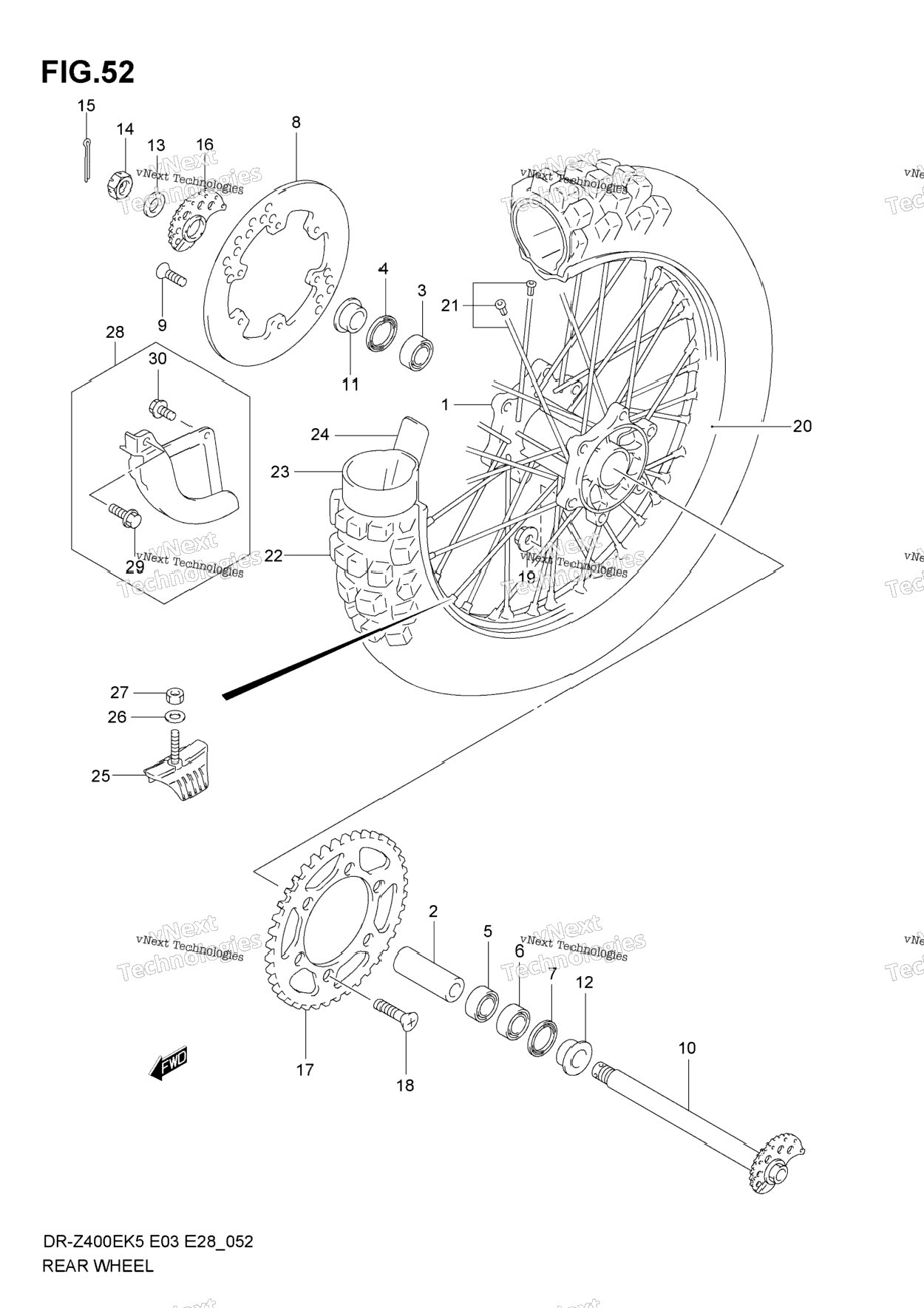

| 1 | 64111-29F00 | HUB, REAR WHEEL | 1 шт. | — | |
|
| 2 | 64731-29F00 | SPACER RR HUB BEARING | 1 шт. | — | |
|
| 3 | 08133-60047 | BEARING, RH | 1 шт. | — | |
|
| 4 | 64841-28E00 | SEAL, RH (29X42X6) | 1 шт. | — | |
|
| 5 | 08133-60047 | BEARING, LH | 1 шт. | — | |
|
| 6 | 08123-62047 | BEARING, OUTER LH | 1 шт. | — | |
|
| 7 | 09283-29006 | SEAL OIL (29X47X6) | 1 шт. | — | |
|
| 8 | 69211-43D00 | DISC RR BRAKE | 1 шт. | — | |
|
| 9 | 09120-06011 | SCREW (6X17.5) | 6 шт. | — | |
|
| 10 | 64710-29F10 | AXLE, REAR | 1 шт. | — | |
|
| 11 | 64751-28E20 | SPACER RR AXLE | 1 шт. | — | |
|
| 12 | 64751-28E20 | SPACER RR AXLE | 1 шт. | — | |
|
| 13 | 09160-19022 | WASHER | 1 шт. | — | |
|
| 14 | 08314-40183 | NUT | 1 шт. | — | |
|
| 15 | 04111-40308 | PIN, COTTER | 1 шт. | — | |
|
| 16 | 61410-29F00 | ADJUSTER CHAIN R | 1 шт. | — | |
|
| 17 | 64511-29F00 | SPROCKET,RR (NT:47-520) | 1 шт. | — | |
|
| 18 | 09120-08010 | SCREW (8X30.5) | 6 шт. | — | |
|
| 19 | 08319-31088 | NUT | 6 шт. | — | |
|
| 20 | 65311-29F10 | RIM, REAR WHEEL (2.15X18) | 0 шт. | — | |
|
| 21 | 65320-29F10 | SPOKE ASSY, REAR WHEEL | 1 шт. | — | |
|
| 22 | 65110-29F00 | TIRE, REAR (110/100-18 64M) (DUNLOP) | 0 шт. | — | |
|
| 23 | 65200-29F00 | TUBE ASSY, WHEEL INNER | 1 шт. | — | |
|
| 24 | 65261-44AF0 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 25 | 65270-29F00 | STOPPER, BEAD | 1 шт. | — | |
|
| 26 | 08322-01083 | WASHER | 1 шт. | — | |
|
| 27 | 08310-00083 | NUT | 1 шт. | — | |
|
| 28 | 69200-28C00 | COVER SET RR BRAKE DISC Includes Item(s) 29 - 30 | 1 шт. | — | |
|
| 29 | 01550-06203 | BOLT, FRONT | 1 шт. | — | |
|
| 30 | 01550-06123 | BOLT, REAR | 1 шт. | — | |
|
