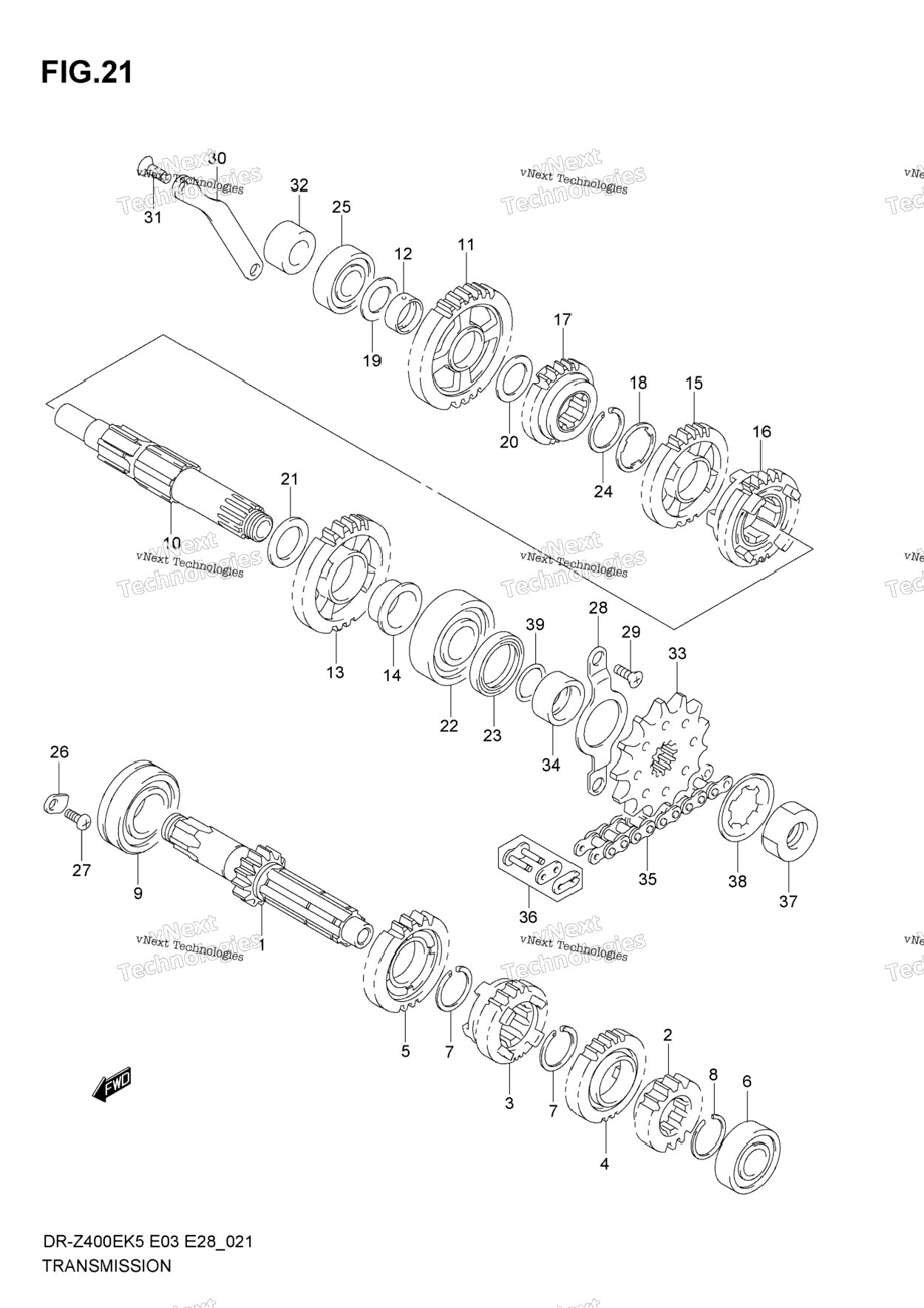

| 1 | 24120-05D20 | SHAFT COUNTER (NT:14) | 1 шт. | — | |
|
| 2 | 24221-28C20 | GEAR 2ND DRIVE (NT:15) | 1 шт. | — | |
|
| 3 | 24231-05D02 | GEAR 3RD DRIVE (NT:16) | 1 шт. | — | |
|
| 4 | 24241-05D01 | GEAR 4TH DRIVE (NT:22) | 1 шт. | — | |
|
| 5 | 24251-05D00 | GEAR 5TH DRIVE (NT:22) | 1 шт. | — | |
|
| 6 | 09262-17027 | BEARING, CNTR SHAFT LH 17X40X12 | 1 шт. | — | |
|
| 7 | 09380-25010 | CIRCLIP, 4TH/5TH DRIVE | 2 шт. | — | |
|
| 8 | 09380-25013 | CIRCLIP, 2ND DRIVE | 1 шт. | — | |
|
| 9 | 09262-25003 | BEARING, CNTR SHAFT, RH 25X52X15 | 1 шт. | — | |
|
| 10 | 24130-05D20 | DRIVE SHAFT | 1 шт. | — | |
|
| 11 | 24311-05D00 | GEAR 1ST DRIVEN (NT:32) | 1 шт. | — | |
|
| 12 | 24312-29F00 | BUSH 1ST DRIVEN GEAR | 1 шт. | — | |
|
| 13 | 24321-28C02 | GEAR 2ND DRIVEN (NT:26) | 1 шт. | — | |
|
| 14 | 24322-44E10 | BUSH 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 15 | 24331-05D01 | GEAR 3RD DRIVEN (NT:22) | 1 шт. | — | |
|
| 16 | 24341-05D01 | GEAR 4TH DRIVEN (NT:24) | 1 шт. | — | |
|
| 17 | 24351-05D20 | GEAR 5TH DRIVEN (NT:19) | 1 шт. | — | |
|
| 18 | 09167-25012 | WASHER LOCK (25.1X31X1.0) | 1 шт. | — | |
|
| 19 | 09181-17223 | WASHER, 1ST DRIVEN, RH 17X30X1.0 | 1 шт. | — | |
|
| 20 | 09181-20195 | WASHER, 1ST DRIVEN, LH 20X30X1.0 | 1 шт. | — | |
|
| 21 | 09181-22223 | WASHER, 2ND DRIVEN, RH 22X34X1.0 | 1 шт. | — | |
|
| 22 | 09262-22024 | BEARING, DRIVE SHAFT, LH 22X56X16 | 1 шт. | — | |
|
| 23 | 09283-30053 | OIL SEAL (30X40X6) 30X40X6 | 1 шт. | — | |
|
| 24 | 09380-25010 | CIRCLIP, 3RD DRIVEN | 1 шт. | — | |
|
| 25 | 09262-17023 | BEARING, DRIVE SHAFT, RH 17X40X12 | 1 шт. | — | |
|
| 26 | 24741-21A00 | RETAINER, COUNTER SHAFT | 2 шт. | — | |
|
| 27 | 09125-06110 | SCREW (6X12) | 2 шт. | — | |
|
| 28 | 24751-29F00 | RETAINER DRIVE SHAFT OIL SEAL | 2 шт. | — | |
|
| 29 | 09126-06007 | BOLT, RETAINER (6X14) | 2 шт. | — | |
|
| 30 | 26264-29F00 | RETAINER KICK IDLE GEAR | 1 шт. | — | |
|
| 31 | 02122-0616A | SCREW, KICK IDLE | 2 шт. | — | |
|
| 32 | 09180-17055 | SPACER, KICK IDLE 17X30.5X16.3 | 1 шт. | — | |
|
| 33 | 27511-47D10 | SPROCKET, ENGINE (NT:14) | 1 шт. | — | |
|
| 34 | 27531-29F00 | SPACER ENGINE SPROCKET | 1 шт. | — | |
|
| 35 | 27600-29F10-112 | CHAIN ASSY, DRIVE (RK520KZO,112L) | 1 шт. | — | |
|
| 36 | 27620-29F10 | JOINT SET, CHAIN OPT | 1 шт. | — | |
|
| 37 | 09140-18006 | NUT, ENGINE SPROCKET | 1 шт. | — | |
|
| 38 | 09167-22012 | WASHER LOCK (22.5X40.3X0.8) | 1 шт. | — | |
|
| 39 | 09280-21008 | O RING (D:2.5,ID:21) | 1 шт. | — | |
|
